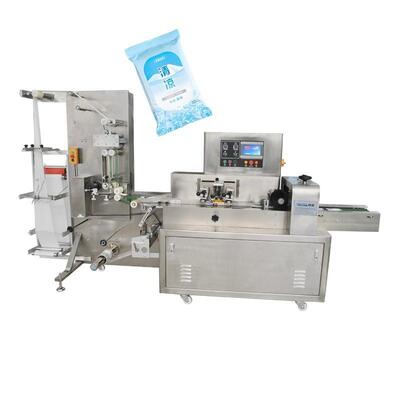

Multi Function Wipes Machine For Cooling Wet Wipe Single PC Pack Automatic Production Line

Multi Function Wipes Machine For Cooling Wet Wipe Single PC Pack Automatic Production Line

The cooling wipe making packing machine is developped by Sayok basis on many years wipes machine manufacturing and clients requirements. It is upgraded wet wipe machine for cooling wipes making and packing. It is a full automatic making and packing 2 in 1 machine , it function as roll materials unwinding, folding, wetting, sliting, bag forming, filling, sealing etc.

Performance introduction:

1. Scientific design, compact structure, convenient operation and maintenance
2. Humidification device for spunlace non-woven fabrics: single spray type and second concentrated spray type
3. Liquid addition system: including stirring device, water adding device, independent water return device, and the amount of water can be adjusted
4. Raw material cutting system: length adjustable
5. Photoelectric detection can automatically stop if there is no cloth
6. Packaging form: mechanical reciprocating horizontal seal, with pneumatic gusset, optional aircraft port device
7. Position adjustment: opening position, labeling position, feeding position, color mark position, which can be changed directly on the touch screen
8. Raw material cutting system: pneumatic toothed knife

Quick Details:

1. Suitable for wet tissues packed with folded;

2. Double frequency conversion control, bag length is set and cut, save in film and time

3.Text-based HMI design, convenient and quick parameter setting.

4. Date printer is optional item;

5. plastic cover is optional item;

6. packing machine is adjustable according to concrete requirements.

Production process: coil loading → slitting and folding → conveying → spraying → spunlace non-woven fabric loading (finished product) → automatic synchronous transportation of tailstock → bagging → automatic opening → automatic labeling → bag making → sealing → cutting →Product delivery

Specifications:

Machine Details:

1. Stainless steel quality, good in appearance and machine is more durable
2. Each axis is independently controlled for tension and driven independently
3. High-speed roll cutter cutting, 150 cut/min.
4.Automatic pilling system to connect with packing machine.
5. Servo driven and control to packing, easy to operate
6. Three side seal packing type
