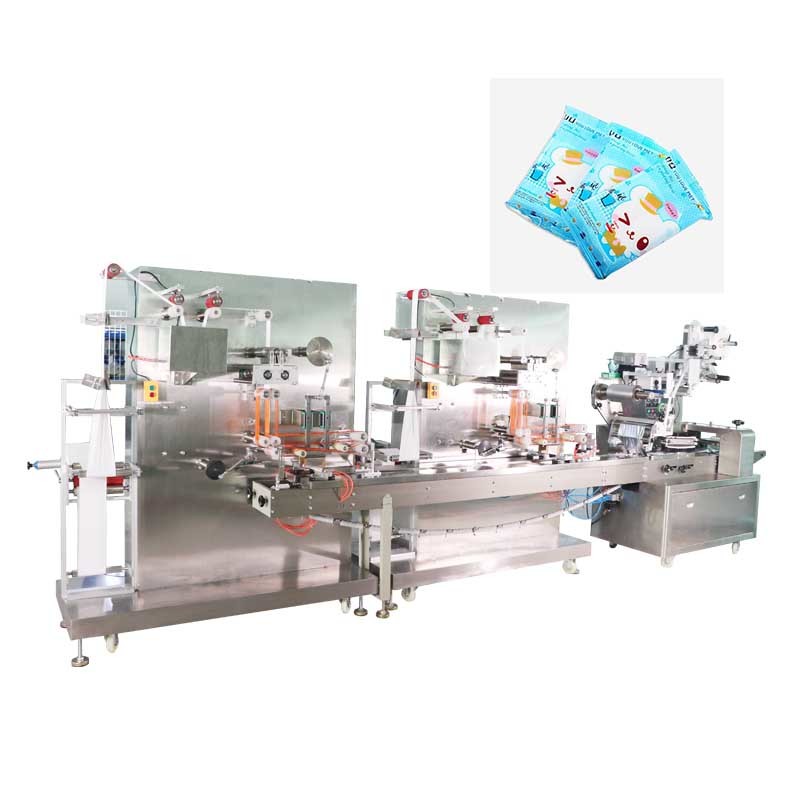

Hand & Mouth Cleaning Wipes Production Line Automatic Tissue Machinery
Facture:
1. Automatic counting and stacking, easy to set & control packed quantity of each bag;
2. Dosing liquid filling system, easy to control wipe moisture level;
3. Low power supply and air consumption requirements, save in energy.
4. Fault self-diagnosis function, fault display at a glance, easy to settle down accordingly.
5. High-sensitivity photoelectric eye tracking, digital input of the cutting and sealing position, more accurate of the sealing and cutting position.
6. Punching and labelling positions can be operated on the touch screen, making it easy and fast to do so..
Quick Details:
1. Transmission system is very simple, easy to operate;
2. Whole fully automatic design, easy to maintain.
3. Can be produced as individual or linked packages
4. Date printer is optional item;
5. plastic cover is optional item;
6. packing machine is adjustable according to concrete requirements.
Specifications:
| Wet wipes unfolded size | L*H:100-220×100-240mm |
| Wet wipes folded size | L*H:80-110×30-90mm |
| Folding method of wet wipes | Vertically folded N/W type |
| Bag size | bag:L*W*H:65-200×30-100 x 5-80mm |
| Production date | Equipped with ink wheel coding device (low cost, easy to replace) |
| Processing capacity | 30-100 bags/min |
| Packaging film requirements | Composite film, aluminized film, polyethylene / polypropylene and other thermal composites |
| Inner diameter of raw paper core | Φ 76.2mm (=3") |
| Total power | 220V 50Hz 2.8 KW |
| Raw Materials | 40～80g/m2 dust-free paper, non-woven fabric, spunlace non-woven fabric |
| Machine weight | about 1000 kg |
| Dimensions |
(L)4600×(W)1480×(H)1460mm |
Machine Details:
| 1. Stainless steel quality, good in appearance and machine is more durable | |
| 2. Each axis is independently controlled for tension and driven independently | |
| 3. High-speed roll cutter cutting, 150 cut/min. | |
| 4.Automatic pilling system to connect with packing machine. | |
| 5. Servo driven and control to packing, easy to operate | |
| 6. Three side seal packing type | |
