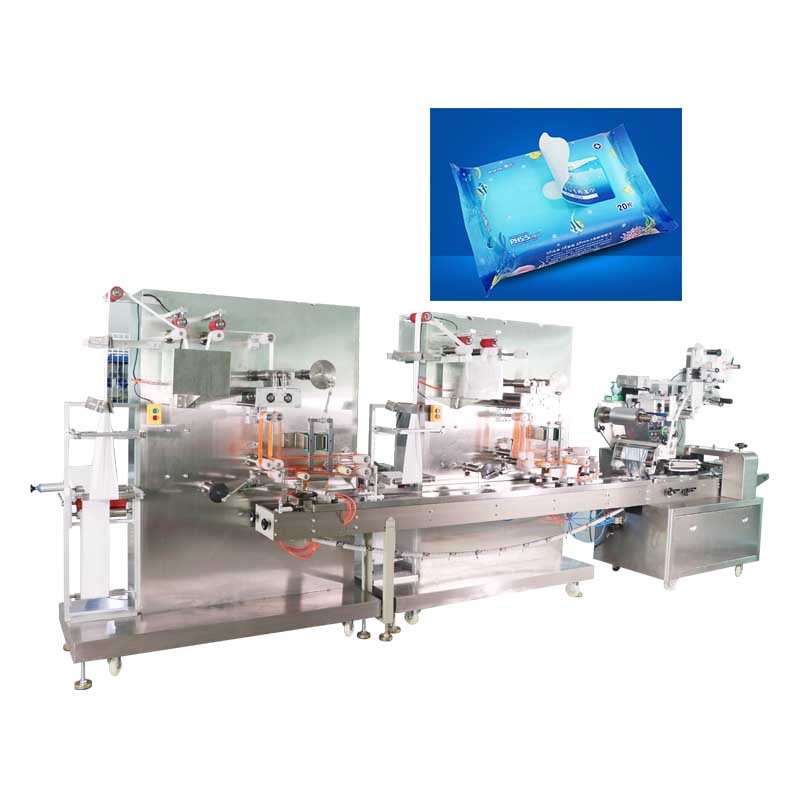

Stainless Steel Cleaning Wet Tissue Packing Machine Automatic Wipes Machinery
Facture:
1. 304 quality Stainless steel frame for good looking and durable;
2. Suitable for the wipes / tissues with several folds;
3. Indipenent raw material holder for better controlling.
4. Fault self-diagnosis function, fault display at a glance.
5. High-sensitivity photoelectric eye tracking, digital input of the cutting and sealing position, more accurate of the sealing and cutting position.
6. Punching and labelling positions can be operated on the touch screen, making it easy and fast to do so..
Quick Details:
1. High sensitivity photoelectric eye colour scale tracking, packing more accurate;
2. Independent PID control of temperature, better suitable for various materials wrapping film.
3. Positioning stop function, no sticky knife, save in film.
4. Date printer is optional item;
5. plastic cover is optional item;
6. packing machine is adjustable according to concrete requirements.
Specifications:
| Wet wipes unfolded size | L*H:100-220×100-240mm |
| Wet wipes folded size | L*H:80-110×30-90mm |
| Folding method of wet wipes | Vertically folded N/W type |
| Bag size | bag:L*W*H:65-200×30-100 x 5-80mm |
| Production date | Equipped with ink wheel coding device (low cost, easy to replace) |
| Processing capacity | 30-100 bags/min |
| Packaging film requirements | Composite film, aluminized film, polyethylene / polypropylene and other thermal composites |
| Inner diameter of raw paper core | Φ 76.2mm (=3") |
| Total power | 220V 50Hz 2.8 KW |
| Raw Materials | 40～80g/m2 dust-free paper, non-woven fabric, spunlace non-woven fabric |
| Machine weight | about 1000 kg |
| Dimensions |
(L)4600×(W)1480×(H)1460mm |
Machine Details:
| 1. Stainless steel quality, good in appearance and machine is more durable |  |
| 2. Each axis is independently controlled for tension and driven independently | |
| 3. High-speed roll cutter cutting, 150 cut/min. | |
| 4.Automatic pilling system to connect with packing machine. | |
| 5. Servo driven and control to packing, easy to operate | |
| 6. Three side seal packing type | |
