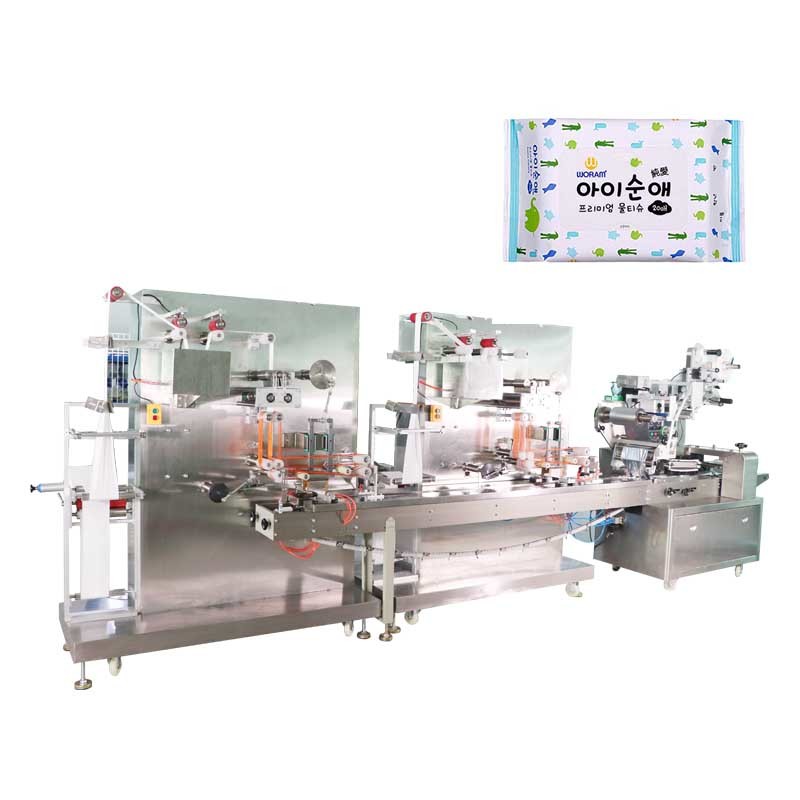

Fully Safety Lovely Korea Wipes Production Line Automatic Packing Line
Facture:
1. Fully automatic wipes production line from raw materials rolls to folded products;
2. Can produce baby wipes, skin care wipes, kitchen wipes, leather wipes, hotel wipes, hygiene wipes, alcohol wipes, disinfectant wipes and many other types of wipes in small packs;
3. Easy to operate and highly safety.
4. Fault self-diagnosis function, fault display at a glance.
5. High-sensitivity photoelectric eye tracking, digital input of the cutting and sealing position, more accurate of the sealing and cutting position.
6. Punching and labelling positions can be operated on the touch screen, making it easy and fast to do so..
Quick Details:
1. Making and packing 2 in 1 machine;
2. Two axis raw materials and each axis is independently controlled for tension and driven.
3. High productivity of 30-100 bag/min.
4. Date printer is optional item;
5. plastic cover is optional item;
6. packing machine is adjustable according to concrete requirements.
Specifications:
| Wet wipes unfolded size | L*H:100-220×100-240mm |
| Wet wipes folded size | L*H:80-110×30-90mm |
| Folding method of wet wipes | Vertically folded N/W type |
| Bag size | bag:L*W*H:65-200×30-100 x 5-80mm |
| Production date | Equipped with ink wheel coding device (low cost, easy to replace) |
| Processing capacity | 30-100 bags/min |
| Packaging film requirements | Composite film, aluminized film, polyethylene / polypropylene and other thermal composites |
| Inner diameter of raw paper core | Φ 76.2mm (=3") |
| Total power | 220V 50Hz 2.8KW |
| Raw Materials | 40～80g/m2 dust-free paper, non-woven fabric, spunlace non-woven fabric |
| Machine weight | about 1000 kg |
| Dimensions |
(L)4600×(W)1480×(H)1460mm |
Machine Details:
| 1. Stainless steel quality, good in appearance and machine is more durable |  |
| 2. Each axis is independently controlled for tension and driven independently | |
| 3. High-speed roll cutter cutting, 150 cut/min. | |
| 4.Automatic pilling system to connect with packing machine. | |
| 5. Servo driven and control to packing, easy to operate | |
| 6. Three side seal packing type | |
