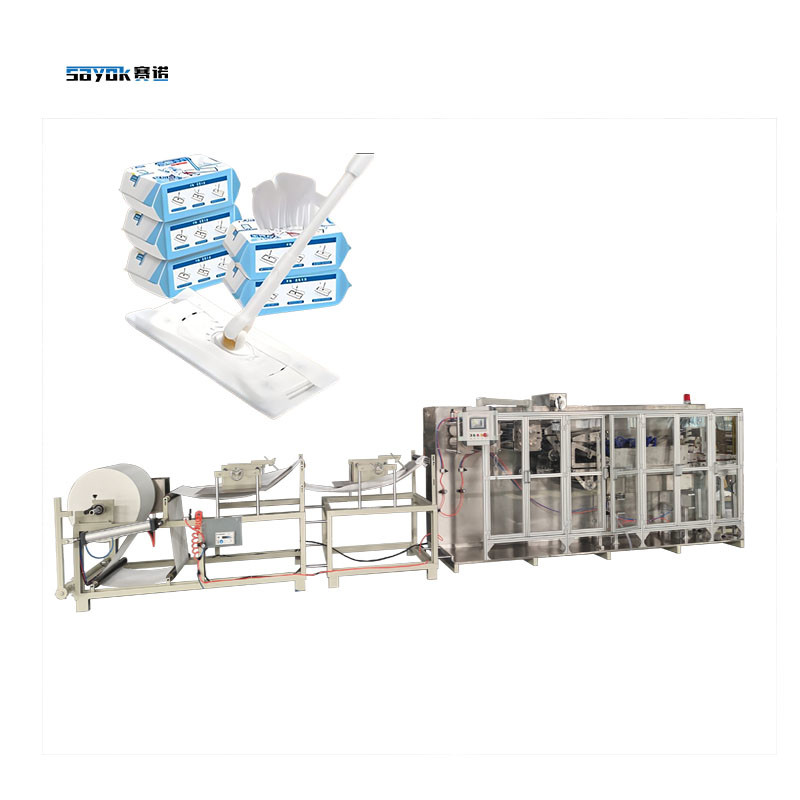

7.5 KW Automatic Wet Floor Wipes Packing Machine

1
MOQ
EXW USD 98500 - 101550/set
Price
7.5 KW Automatic Wet Floor Wipes Packing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Function: Feeding Forming
Advantages: Fully Automatic Machinery
Wetting Control: Servo + PLC Control
Packaging Material: Plastic, Paper, Film, Etc.
Packaging Accuracy: 99.9%
Dimension: L*W*H: 7500mm*1200mm*1550mm
Power Supply: 220V/380V
Packaging Size: Customized
Highlight:

7.5 KW Wipes Packing Machine

,

PLC Controlled Wipes Packing Machine

,

Automatic Wipes Packing Machine

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-450FW
Payment & Shipping Terms
Packaging Details: Exported wooden case, 1x40HC for 1 set
Delivery Time: 50-60 working days
Payment Terms: TT
Supply Ability: 50 set/quater
Product Description

7.5 KW Automatic Wet Floor Wipes Packing Machine





Features





  • Wet wipes packing machines can create various packet designs and shapes.
  • Some wet wipes packing machines come with built-in counting mechanisms that accurately count the number of wet wipes being packaged. This feature is particularly useful for ensuring that each packet contains the desired quantity of wipes.
  • Wet wipes packing machines can be integrated with labeling machines to automatically apply labels or stickers to individual packets.
  • Wet wipes packing machines are designed to maximize efficiency and productivity.
  • These machines typically offer adjustable production speeds, allowing operators to control the rate at which the wet wipes are packaged.
  • Advanced equipment design concept, compact structure, fast speed, good stability, high production efficiency, and meet the requirements of various national health standards.





Woring Process



Install raw material rolls → conveyor → horizontal first fold →horizontal second fold →Hole punching →length cutting→ vertical first fold→vertical second fold→automatic wetting→automatic stacking → conveyor to pack - Output finishing pack





Machine Details





7.5 KW Automatic Wet Floor Wipes Packing Machine 0

Advanced equipment design concept, compact structure, fold horizontally up to two times.

7.5 KW Automatic Wet Floor Wipes Packing Machine 1

Adopts four-servo combined with PLC programming controller and microcomputer display screen to control production, all production parameters are clear at a glance and easy to operate.

7.5 KW Automatic Wet Floor Wipes Packing Machine 2 Automatic hole punching, and the hole size can be customized to fit your mopper spec.

7.5 KW Automatic Wet Floor Wipes Packing Machine 3

Can design with plastic cover or not, the qty of each bag can be set in the operating screen,

Technical Parameter & Confliguration:



Technical Parameters

Control system

Number of horizontal folds

2 times

Host speed control

4 set servo motor control

Number of vertical folds

2 times

voltage

380V /Three phase

Maximum roll

diameter of raw

material unwinding



1000mm



Cross cutting length of hob



Servo motor control

Raw material width range

400 mm

Actuator (contactor, etc.)

“CHINT”

Speed

100pcs/min

Signal element (photoelectric

switch, etc.)

“OMRON”

Power

7.5kw

Pneumatic Components

“YADEKE”

Wetting head

8 sets

Counting device

“CHINT”

stack

Flip stack

Frequency device

“TAIDA”

Hole model

Customized

Frequency device quantity

1SET

Raw paper tube

3 inch

Frequency

50HZ

Suitable raw

materials

Rolls

Servo control system

“INOVANCE”

Device Dimension

7500mm*1200mm*1550mm

Equipped with device

Weight

2100kg





Feed system

Pneumatic feeding

Output

Conveyor belt

Host speed

1400r/min

counting

Automatic





Accessories included





standard tools

1 set







Packing and Shipping:



The Wet Wipes Packing Machine is packaged in stretched wrapping film. It is then secured to an exported wooden case. The wooden case is then loaded onto a truck or container and shipped to the customer's location.



7.5 KW Automatic Wet Floor Wipes Packing Machine 4

7.5 KW Automatic Wet Floor Wipes Packing Machine 5

7.5 KW Automatic Wet Floor Wipes Packing Machine 6

7.5 KW Automatic Wet Floor Wipes Packing Machine 7

7.5 KW Automatic Wet Floor Wipes Packing Machine 8

7.5 KW Automatic Wet Floor Wipes Packing Machine 9






FAQ:



Q1: What is the brand name of this product?

A1: The brand name of this product is Sayok.

Q2: What is the model number of this product?

A2: The model number of this product is SN-450T.

Q3: Where is this product made?

A3: This product is made in China.

Q4: Is this product CE certified?

A4: Yes, this product is CE certified.

Q5: What is the minimum order quantity for this product?

A5: The minimum order quantity for this product is 1.
