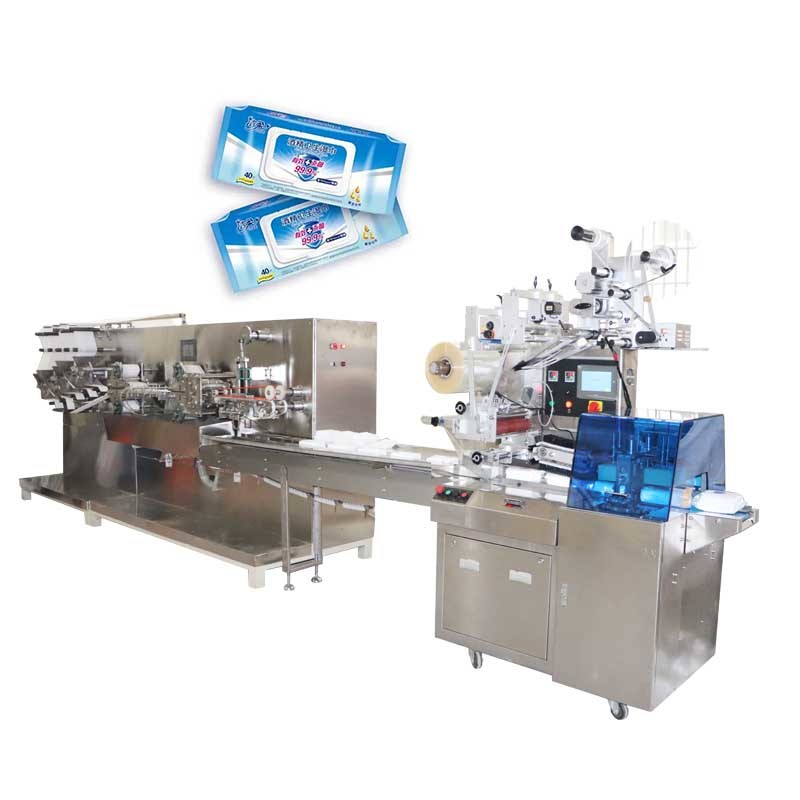

Fully Servo Driven & Controlled Baby Wipes Machine Automatic Packing Line
Facture:
1. Intelligent servo driven and PLC controlled;
2. High-speed roll cutter cutting, 150 cut/min;
3. Automatic bending of the film and label release shafts, reduce raw material changing time.
4. Fault self-diagnosis function, fault display at a glance.
5. High-sensitivity photoelectric eye tracking, digital input of the cutting and sealing position, more accurate of the sealing and cutting position.
6. Punching and labelling positions can be operated on the touch screen, making it easy and fast to do so..
Quick Details:
1. Short changeing material time;
2. Machine with safety protection design and devices
3. Intelligent machine details design, easy to operate and stable
4. Date printer is optional item;
5. plastic cover is optional item;
6. packing machine is adjustable according to concrete requirements.
Specifications:
| Wet wipes unfolded size | L*H:100-220×100-240mm |
| Wet wipes folded size | L*H:80-110×30-90mm |
| Folding method of wet wipes | Vertically folded N/W type |
| Bag size Single | bag:L*W:130-160×50-100mm |
| Production date | Equipped with ink wheel coding device (low cost, easy to replace) |
| Processing capacity | 40～80 bags/min in single row |
| Packaging film requirements | 70-130g/㎡ aluminum film packaging paper, Φ≤400mm, width 200-380mm |
| Inner diameter of raw paper core | Φ 76.2mm (=3") |
| Total power | 220V 50Hz 3KW |
| Drive chain | Main drive chain with tensioner as required |
| Machine weight | about 1200 kg |
| Dimensions | L*W*H:4000×1200×1800mm |
Machine Details:
| 1. Stainless steel quality, good in appearance and machine is more durable |  |
| 2. 5 slitting lanes design, fast and stable. | |
| 3. Dosing liquid filling container, adjustable to control the wet. | |
| 4.Automatic pilling system to connect with packing machine. | |
| 5. Brush and sponge dual press to | |
| 6. Three side seal packing type | |
