High Efficient Surgical Glove Paper Wallet Type Wrapping Machine With Bi-fold Device

High Efficient Surgical Glove Paper Wallet Type Wrapping Machine With Bi-fold Device

Brand Name:	Sayok
Model Number:	SN-100TK
MOQ:	1 set
Price:	EXW US$47300 - 50400/set
Payment Terms:	T/T
Supply Ability:	10 set/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Glove Size:

Size 6.0 - 9.0

Feature:

Packed With Bi-fold

Keyword:

Bi-fold Wallet Type Glove Packing Machine

Automatic Grade:

Automatic Wallet Packing

Machine Appearance:

Stainless Steel

Production Capacity:

20-28 Pack/min

Warranty:

1 Year For Main Electrial Parts

Packaging Details:

Exported wooden case

Product Description

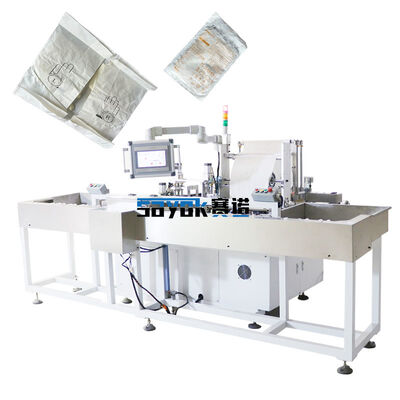

High Efficiency Surgical Glove Paper Wallet Type Wrapping Machine With Bi-fold Device

This automatic packaging machine is specialed developped for surgical glove wallet type wrapping with bi-fold effect, which is seperating left and right glove into the wallet pack, aiming to easily wear and tell left & right. It is a specialized integrated packaging solution designed for medical surgical glove inner wrapping, fully compliant with medical GMP production standards and sterile packaging requirements. It combines with host folding part, glove transfer mechanism and collection bin 3 parts, all of these 3 parts are customized and compact design for surgical wallet wrapping. Can be optional to to link with the printing machine to with company's own logo or with printed paper rolls, the machine is designed with color mark tracking mode. The bi-fold device can be disassembly once no need, it is a 2 use design machine, which is very convinient for the factory to shift as needed.

Special designed glove wrist flipping mechanism, very convinient for the workers to flip the wrist with high efficiency, and there are 2 bins to store the gloves, one for left and one for right gloves, which is preventing the workers from mixing the gloves by mistakes. just loading the gloves. And the flipping glove mold is flexible to adjust to compatible glove size from 6.0 to 9.0. The wrist flipping mold is made of special Taflon material, which can make sure the gloves can be grisped from the mold smoothly.

Large film holder, make sure it is compatible for the film width from 380mm to 480mm, max film roll diametter can be large as 500mm, compact design make the papers can be unwinding and streched completely. More, the sophisticated air‑foil design enables consistently smooth and flawless wallet‑style packaging. Adopted cold-cut steel blade, which will be very smoothly in cutting papers and there are sensors to make sure it will be very precisely cut.

Equipped with compact designed large storage bin to collect the clamped wallet wrapped gloves, there is a roller to press the finished products, so that can escape the extra airs inside, which will be flater in the outer packing machine and get perfect packing effect. .

Featuring compact structure, easy operation and convenient maintenance, the equipment supports packaging of all common sizes of surgical gloves. It is widely applicable to formal production lines of medical glove manufacturers, meeting the high standard and high‑efficiency production demands of medical disposable protective supplies.

Main Technical Parameter

Model	SN-100TK
Product	Surgical Gloves
Packing Film Range	256 x 380 - 460mm
glove size	size 6.5-8.5 (L180-220mm, W95-140mm)
pack qty/time	1 pair/time
packing speed	24-28 bag/min
Paper film request	38-40g single shiny paper with good flexible, stiffness
Power	220V 50/60 HZ 5KW
Machine Size	(LxHxL)3100x3000x1800mm
Machine weight	1200 KG
Compressed Air	0.6-0.8 Mpa approx 30 NM/H, 7.5KW air compressor will be ok

Machine Details

1. Stailess steel appearance for good looking and durable in use. It is a high-tech product integrating light, electricity, air and machine. Suitable for surgical gloves lined with paper wallet packaging
2. High quality glove flip wrist transfer mechanism, workers is easy to flip wrist, and there are different glove meter in the mold range from 6.0 to 9.0, compatible for sharing one machine for different glove sizes, just loosen to change mold size to fit different glove size.
3. Large film roll holder, stretching in a timely manner and reduce the film roll changing time. the sophisticated air‑foil design enables consistently smooth and flawless wallet‑style packaging.
4. Automatic paper cutting and moving to positioned place for glove folding. Special cold-cut steel blade for smoothly cut.
5. The manipulator is positioned so that the product will not be crushed during sealing. Automatic grasp the left and right hand gloves from the mold. Less manual contact for greater cleanliness and hygiene.
6. Automatic swing folding, wallet type packing, convenient for the doctor's to opening and wear. With medical paper lining packing, which is okay to pass the sterilization.
