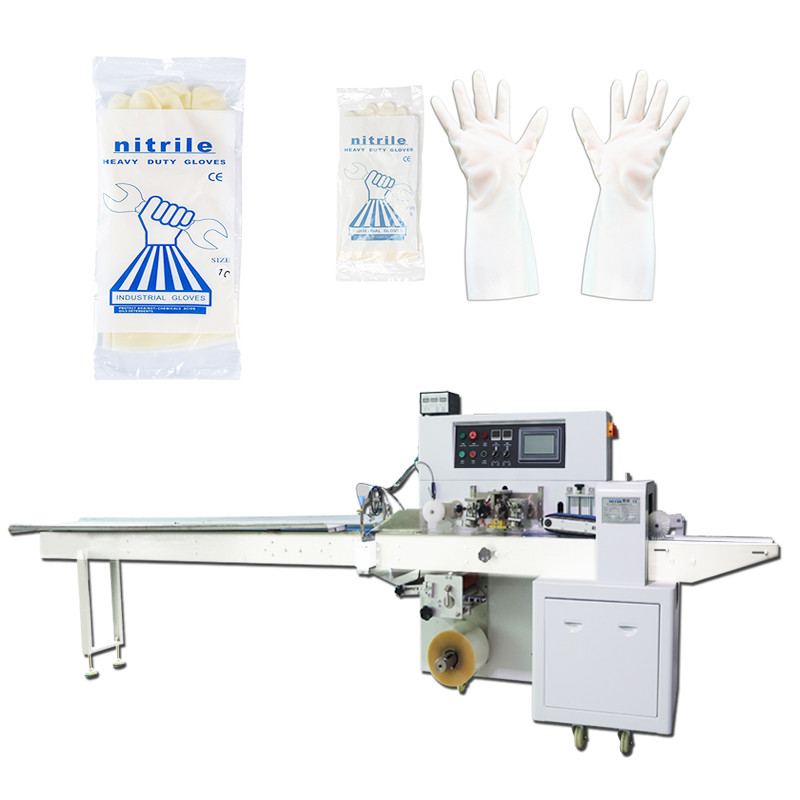

Automatic Servo Motor Flow Packing Machine 10PC Nitrile Gloves Wrapping Machine
Facture:
1, Large storage for product data, over 40 different formular can save, input product saving code only to proceed directly.
2. 7" large touch screen, very convenient and visable for all operations.
3. Fault self-diagnosis function, easy to know the fault and solve accordingly.
4. According to the sealing method of middle side,this machine can be customized for top side sealing and bottom side sealing.
5. Designed with the conveyor belt to transport the wrapping object
6. Sharp cutting blade can make the cutting edge neatly,imporves production quality.The number of cutting blade can be customized according to working capacity,improves working effiency.
Quick Details:
1. Good exhaused effect, it is easy to link with cartoning machine;
2. High quality sensor to detect product, no empty bag issue;
3. Reasonable machinery design and transmission, meet medical industrial standard;
4. Date printer is optional item;
5. Optional Teflon cutter according to packing film quality;
6. Can group with glove making machine, folding machine to be a complete automatic line.
Specifications:
| Model | SN-450XS |
| Film Width | Max. 450mm |
| Bag Length | 100-450mm |
| Bag Width | 50-180mm |
| Product height | Max. 80mm |
| Film Diameter | Max. 320mm |
| Packing Speed | 40-100 bag/min |
| Power | 220V,50/60Hz,2.8KW |
| Machine Size | (L)4020×(W)820×(H)1450mm |
| Machine Wt | 700Kg |
| Remark | Add exhausted device |
Machine Details:
| 1. Special design dedicated for 100 PCs PE examination glove packing, conveyor can be customized according to customer's requirements. Can link to production line for a full automatic making packing line. Horizontal design, convenient for workers to operate. |  |
| 2. HMI design, all settings can be operate from PLC operating screen, 7" large touch screen, convenient and quick parameter setting, easy to operate and maintain. | |
| 3. High-sensitivity photoelectric eye to sense product to prevent from empty bag, no product no packing.
optical electical color mark tracking and digital input cut position which makes the sealing and cutting more accurate. |
|
| 4. Enough space for optional date printer installing, fit for more clients requirements. Can be customized for inkjet printer as well. | |
| 5. Brush and sponge dual press to make sure escape air cleaner, to make sure no bag breakage when sterilised by ethylene oxide. | |
| 6. With good air out effect. No bag breakage when sterilised by ethylene oxide, meet medical industry standard | |
