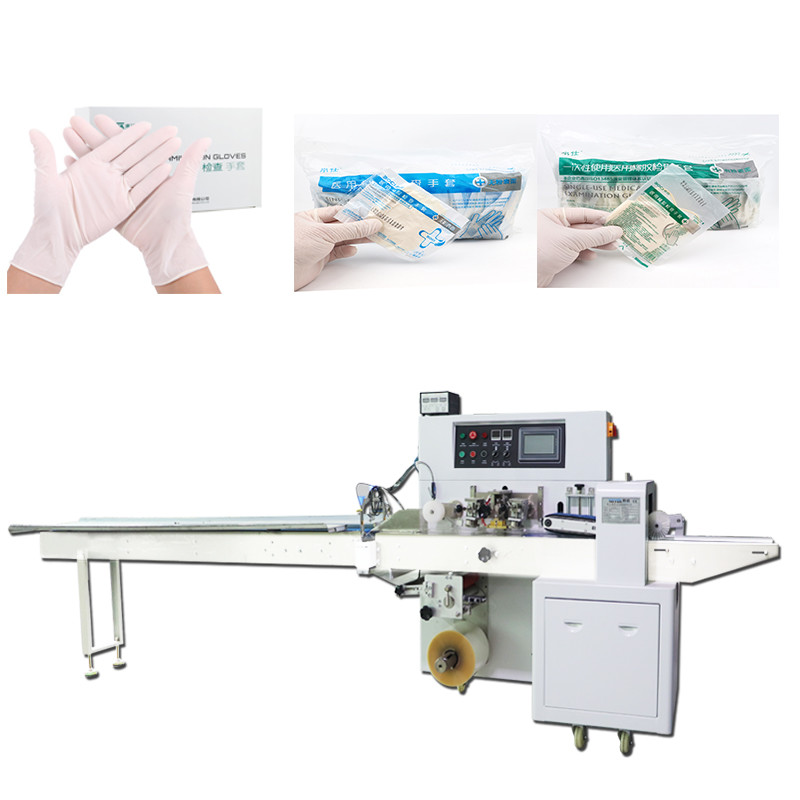

Automatic Horizontal Sterile Surgical Rubber Disposable Gloves Packing Machine
Facture:
1, Adopting Schneider big brand servo motors, more stable in use.
2. Visible HMI operating screen, convenient and easy to operate.
3. Fault self-diagnosis function, easy to know the fault and settle accordingly.
4. High-sensitivity sensor for product position setting, more intelligent and accurate.
5. Independent PID control of temperature, better suited to various packaging materials.
6. Positioning stop function, no sticky knife, no waste of wrapping film.
7.Simple driving system , reliable working , convenient maintenance.
8.All the controls is are achieved by software , convenient for function adjusting and upgrading.
9.Automatic sense material length , automatic packaging products , no product no packaging , don’t need to adjust the bag length.
Quick Details:
1. Brush and sponge dual exhaused device, better in air escaping;
2. High quality sensor for product, more accurate in position stop;
3. Reasonable machinery design and transmission, meet medical industrial standard;
4. Date printer is optional item;
5. Optional Teflon cutter according to packing film quality;
6. 2.3m standard conveyor length, can be customized according to buyer requirements.
Specifications:
| Model | SN-350XS |
| Control system | PLC+Servo+Touch Screen |
| Machine material | Stainless Steel |
| Film Width | Max. 350mm |
| Bag Length | 65-190mm/100-400mm |
| Bag Width | 50-160mm |
| Product height | Max. 80mm |
| Film Diameter | Max. 320mm |
| Packing Speed | 60-100bag/min |
| Power | 220V,50/60Hz,2.8KW |
| Machine Size | 4020*720*1460mm |
| Package Size | 4120*820*1560mm |
| Machine Wt | 610Kg |
| Remark | Add exhausted device |
Optional Devices
The packaging machine has date coding,fills the package with nitrogen,makes the linking bag,makes the easy tearing and pinches the package.
Machine Details:
| 1. Special design dedicated for examination glove packing |  |
| 2. HMI design, easy to operate and maintain. | |
| 3. Material Conveyor Belt 304 Stainless steel fader type, PVC Belt, fader and plastic tray. *Conveyor used food grade 304 stainless steel to ensure the good safely. *The function of anti-aircraft bag can be added to keep materials in the packaging.When there is no material, the machine can automatically stop or alarm. |
|
| 4. Enough space for optional date printer installing, fit for more clients requirements. | |
| 5. Brush and sponge dual press to make sure escape air cleaner | |
| 6. With good air out effect, meet medical industry standard |
|
