High Efficient Folding Rolling Cutting Machine For Large Dispossable Tablecloth Sheet

High Efficient Folding Rolling Cutting Machine For Large Dispossable Tablecloth Sheet

Brand Name:	Sayok
Model Number:	SN-900
MOQ:	1 set
Price:	EXW US$17900-20950/set
Payment Terms:	T/T
Supply Ability:	50 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Disposable Deskcloth Folding Reminding Machine

Applicable Industries:

PE And Non-woven Disposable Deskcloth

Appearance:

Carbon Steel

Raw Material Dia:

1000-1800mm Width

Advantages:

Automatic

Functions:

Folding, Cutting, Rewinding Etc

Transmission Mode:

Servo Motor, Guide Rail

Control System:

HMI + PLC Programming Control

Packaging Details:

Exported wooden case

Highlight:

high efficient folding cutting machine

rolling cutting machine for tablecloth

disposable tablecloth sheet cutter

Product Description

High Efficient Folding Rolling Cutting Machine For Large Dispossable Tablecloth Sheet

The Tablecloth Folding and Rewinding Machine is a high-efficiency automatic equipment for tablecloth final processing, integrating feeding, folding, positioning, cutting and rolling. Widely used in hotel supplies factories, catering utensil enterprises and textile printing and dyeing plants, it effectively solves the problems of low efficiency, inconsistent folding quality and difficult rolling in manual processing.

Core Functions & Working Process:

1. Tablecloth Roll Material Conveying: Equipped with a high-precision servo unwinding unit, it stably conveys various tablecloth rolls with adjustable speed to avoid stretching or wrinkling.

2. Material Storage and Buffering: A dedicated buffer unit adjusts process rhythm, absorbs speed differences, and ensures production line continuity.

3. Automatic Folding & Positioning Cutting: Advanced photoelectric positioning realizes precise folding (double/four-fold, etc.) and accurate cutting (error <1mm) by preset parameters.

4. Pneumatic Clamping & Rolling: Pneumatic clamps transfer folded tablecloths to the rolling unit with adjustable tension, enabling neat rolling with customizable diameter.

5. Finished Product Delivery: Rolled products are automatically sent out by conveyor belt for easy subsequent packaging and transportation.

Key Advantages:

• High Automation: Full-process automation reduces 6-8 operators and improves efficiency significantly. 1 operator for 1 machine is enough.

• Stable Quality: Precise servo control and photoelectric positioning ensure consistent folding, cutting and rolling quality.

• Strong Adaptability: Adjustable for different tablecloth sizes, materials (cotton, linen, polyester, etc.) and folding requirements.

• Easy Operation & Maintenance: HMI touch screen for intuitive parameter setting; standardized components for easy maintenance.

• Energy-Saving & Low-Noise: Energy-saving motors and pneumatic components meet green production requirements.

With reliable performance and efficient processing capacity, this machine is a key equipment in the tablecloth industry, helping enterprises improve efficiency, reduce costs and enhance competitiveness.

Specifications:

Machine Model	SN-900A
Raw Material	width 1000~1800mm
Weight of the machine	Mainframe: about 310KG, automatic loading rack: about 300KG
Machine color	White baking paint, chrome plating or oxidation surface treatment for some parts
Operating Environmental Condition	Dry and clean factory
Power supply requirements	Single-phase, AC 220V, 50/60 HZ The power line interface is a 16A triangle plug.
Machine power	Maximum power 1.5KW
Air source requirements	Compressed air: 0.4-0.8MPa Air consumption: 65L/min 3 Inter pipe: 8 centimeters in diameter
Folding speed	Folding speed about: (8~12)±1PCS/min
Folded dimensions	length 150 mm to 380mm,Width 150 mm to 220mm
Transmission mode	Servo motor, guide rail
Control system:	human-computer interface setting operation, PLC programming control
Operator	1 Operator

Machine Details:

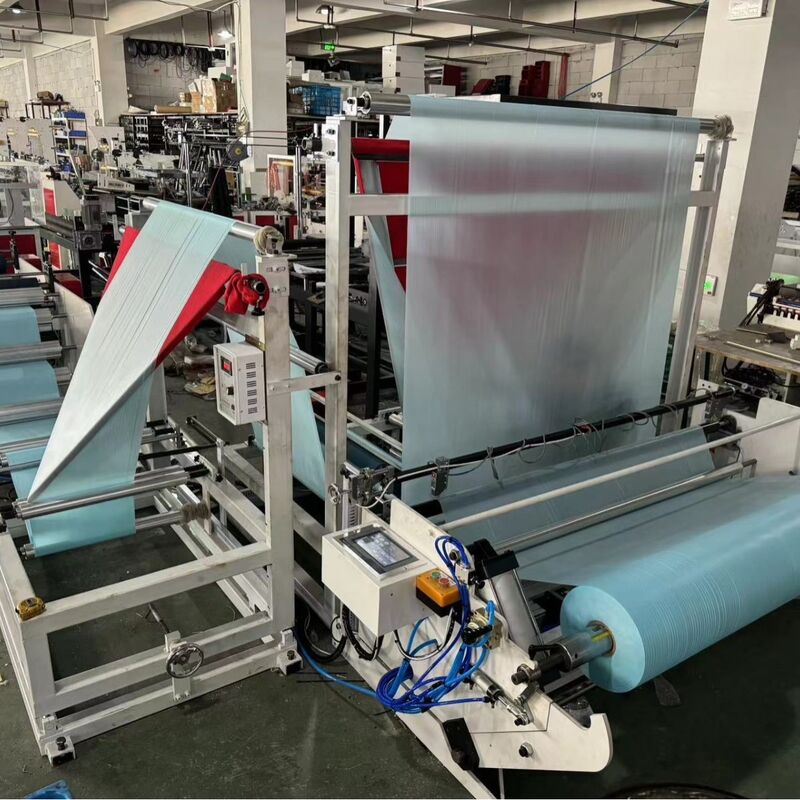

1. Folding & Rewinding Integrated Machine It can realize the one-step process of material unwinding, folding, cutting into pieces and rewinding into small rolls.
2.Conpact Design Unwinding Raw Material Holder Large raw material helder design, can install .
3. Working Process This machine consist of 5 parts: 1. Tablecloth roll material conveying; 2. Material storage and buffering; 3. Automatic roll material positioning and cutting. 4. Pneumatic clamp picking up the folded material; 5. Finished product delivery by conveyor belt.
4.Multi-functional customized mechanical devices enjoy quality service
6. Automatic folding and rewinding machine for disposable deskcloth.
