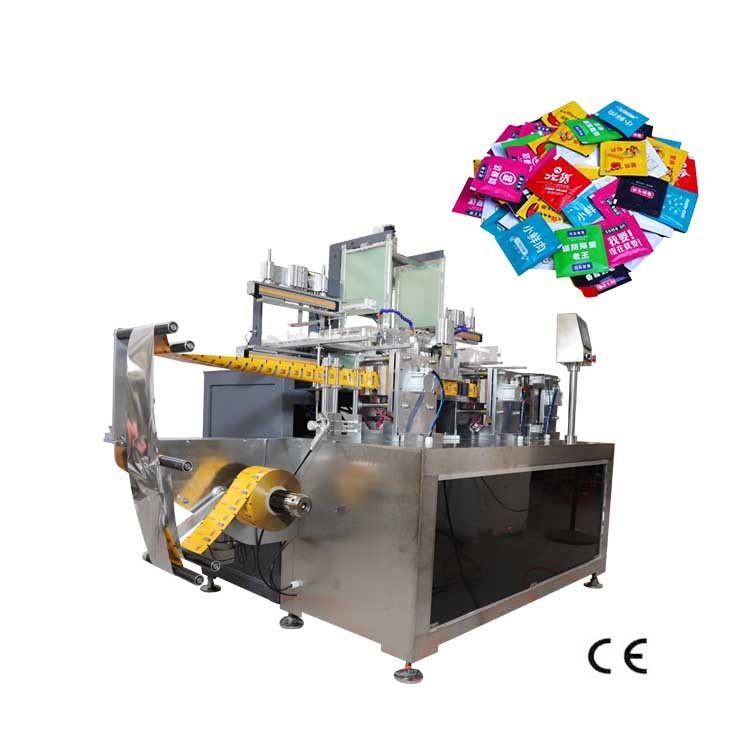

CE Certificated PE Glove Automatic Folding Wrapping Machine Printed Plastic Bag Pack
Facture:
1. Movable material storage tray, easy to replenish gloves once alarming of not sufficient materials.
2. Self-correcting when incorrect quantities of material are detected in the area to be folded.
3. Fault self-diagnosis function, clear fault display.
4. It is covered with stainless steel protective cover, and the parts that mainly contact the cloth are made of stainless steel or rust-proof material.
5. Simple drive system, reliable work, convenient maintenance and so on.
6. All controls are realized by software, which is convenient for function adjustment and upgrade.
Quick Details:
1. There are 2 material tray for each station, will shift to another tray once detecting not enough materials.
2. Timely alarming and stopping once not enough packing films.
3. No manual intervention, cleaner and more hygienic.
4. Closed by heat sealing, make sure neatly cut.
5. The packaging material is consumable.
6. Packaging machine can be adapted to specific requirements.
Specifications:
| Model |
SN-WA450 |
|
Product |
270mm-290mm PE gloves |
| Glove thickness | 0.8-1.5 mil |
| Packing Speed |
30-80 pk/min |
|
Rated air pressure |
0.6-0.8mpa |
| packing type | 4 side sealing or 3 side sealing |
| Power Supply |
AC220V(1±10%)50Hz (Single-phase two-wire system) |
|
Air Source |
0.4-0.8MPa
|
|
Machine size |
2750*1760*2180mm
|
| Machine Weght | Approx 950kg |
Machine Details:
|
1. Folding and Packing 2 in 1 machine It can realize the one-step process of material automatic feeding, folding, filling, sealing and cutting. No manual intervention, cleaner and more hygienic. More uniform packaging
|
 |
|
2. Film roll holder Resonsonal film roll holder linking to the packing machine, make sure the film rolls can be fully stretching and walks smoothly. |
|
|
3. Material feeding tray
Adopting 2 station design, fix the gloves to the tray according to the glove shape. Manual put piles of the gloves to the tray, then automatic suck gloves to the folding area for folding. |
|
|
4. High quality hardness cutter
Good quality cutters, make sure the neatly cut. Optional zig-zag waving tearing cut or triangular scissors opening as customized |
|
|
5. Automatic filling and sealing
Linking with folding machine. After last folding, the inserting board will insert the folded gloves into the forming bag directly, make sure the gloves will not loose and bad will be closest to manual pack bag.
Stardard sealing type is four side sealing, can be customized as 3 side sealing. |
|

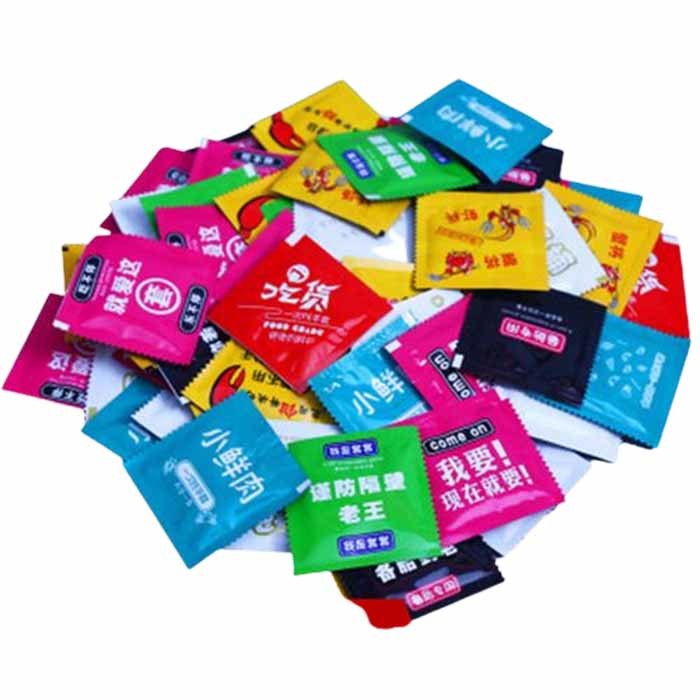

| 6. 3 or 4 side sealing, small pocket packing, can be one or two pcs per bag. |
|
