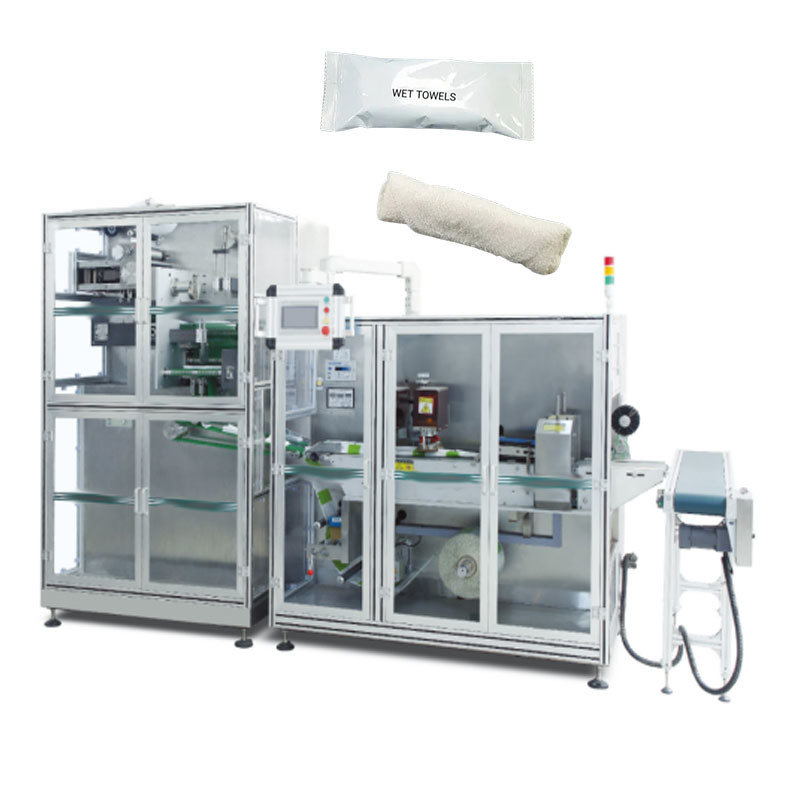

380V 50Hz Wet Towel Folding Slitting Packing Machine Automatic Towel Roll Packaging Line
Performance introduction:
1. Adopting PLC programmable controller, 7" large touching screen, the machine speed, set bag length, actual bag length, and packaging output will all be displayed on the touch screen. It is very easy and simple in operating.
2. Automatic fault diagnosis, all fault clear display at a galance, very convinient in fault clearance and maintenance
3. Automatic alarm for feeding failure - Film buffering function, automatic stop for fabric and film breakage, and anti cutting function.
4. Automatic tracking of electric eye color codes, so that it is compitable for blank and printed packing film, meet for different customer packing requirements.
5. Adjustable bag former - Suitable for various specifications of packaging materials and bag sizes, flexible in different clients for different industries usage.
6. Packaging form: synchronized with folding part, automatic connect, save in time and labor, the packing type can be customized as H type 3 side pack or four side seal pack, and can be flat folding or rolling then pack.
7. Equipped with automatic coding function, it can print production batch number, production date, expiration date and other words on the outer packaging
8. Electrical control system: PLC system, man-machine interface, control circuit, power circuit, temperature control and other auxiliary controls
Specifications:
| Production Speed |
20-80 packs/min (depending on products) |
| Package Size |
Length: 80-300mm, Width: 30-160mm, Height:1-35mm(Adjust as Needed) |
| Packaging Film Size |
Length: 80-400mm, Width: 80-350mm(Adjust as Needed) |
| Towel Size |
Length: 70-280mm, Width: 80-280mm(Adjust as Needed) |
| Raw material quality |
Thickness: 30-250 g |
| Rated Voltage |
220V |
| Power |
50HZ 6KW |
| Weight |
1500KG |
| Overall Dimension |
3510x2530x2150mm |
|
Max. Outer Diameter of
Packaging Material
|
Raw Material Roll: Diameter 750mm
Composite Membrane: 350 mm
|
| Packaging Film Material |
OPP,PET and Composite Membrane such as Galvanized Film, Pearlescent Film, Coated Paper. |
| Raw Material |
30-250g Towels, spunlace non-woven fabrics, hot-rolled non-woven fabrics
|
Machine Details:
| 1. Stainless steel quality, good in appearance and machine is more durable, long life in use |
 |
| 2. Each axis is independently controlled for tension and driven independently, can be N fold or W fold, this part can be customized according to concrete customer requirements. |
|
| 3. High-speed roll cutter, and customize to be ultrasonic cutter according to the real raw material used. Folding can be customized according to the size requirement, max, twice folds to the lenthwise. |
|
| 4.Automatic connecting with the packing machine, if any square area limiation for the workshop, it is ok to customize to be L type shaping, and the packing machine is optional with pillow packing machine and the four side seal packing machine. |
|
| 5. Servo driven and control to packing, easy to operate, depends on your products marketing to choose for H type 3 side seal packing or 4 side seal packing. |
|
| 6. Three side seal packing type, can be customized with four side seal as well. |
|
