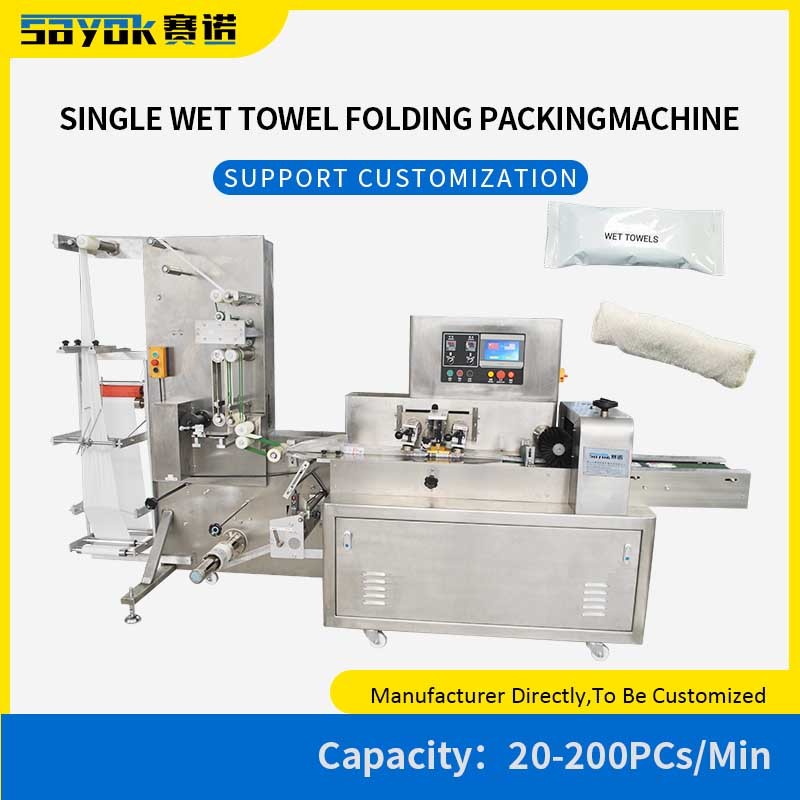

Hotel Use Disposable Wet Towel Folding Packaging Machine Automatic Packing Line

Hotel Use Disposable Wet Towel Folding Packaging Machine Automatic Packing Line

Performance introduction:
1. Large raw material holding roll, full stretched for cutting and folding. raw material width is adjustable, can be customized as clients' requirements.
2. Wetting system - Adopts dipping in the liquid container and squeezing wetting way, make sure wet towels can be wet fast and even.
3. Cutter: Adopt high quality cutter, make sure the raw materials can be cut neat and fast. For the heavier raw material beyond the scale, can be customized with ultrasonic cutter accordingly.
4. Raw material cutting system: length adjustable
5. Photoelectric detection can automatically stop if there is no cloth

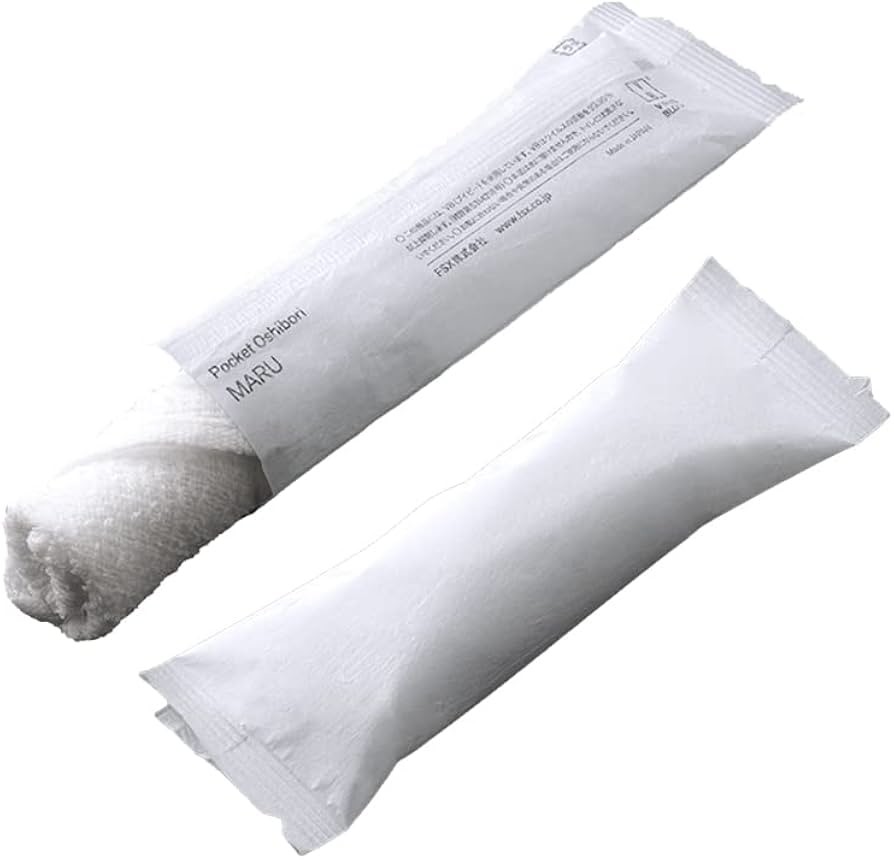

6. Packaging form: synchronized with folding part, automatic connect, save in time and labor, the packing type can be customized as H type 3 side pack or four side seal pack, and can be flat folding or rolling then pack.
7. Position adjustment: opening position, labeling position, feeding position, color mark position, which can be changed directly on the touch screen
8. Electrical control system: PLC system, man-machine interface, control circuit, power circuit, temperature control and other auxiliary controls

Production process: coil loading → slitting and folding → conveying → wetting → spunlace non-woven fabric loading (finished product) → automatic synchronous transportation of tailstock → bagging → automatic opening → automatic labeling → bag making → sealing → cutting →Product delivery

Specifications:

Machine Details:

1. Stainless steel quality, good in appearance and machine is more durable, long life in use
2. Each axis is independently controlled for tension and driven independently, can be N fold or W fold, this part can be customized according to concrete customer requirements.
3. High-speed roll cutter cutting, 150 cut/min. Can be customized as dual cutter for faster speed requirements. And customize to be ultrasonic cutter according to the real raw material used
4.Automatic pilling system to connect with packing machine.
5. Servo driven and control to packing, easy to operate
6. Three side seal packing type, can be customized with four side seal as well.
