High Quality Automatic Four Side Sealing Packing Machine For Steriled Surgical Blades Individual Pack

1 set
MOQ
To be negociated
Price
High Quality Automatic Four Side Sealing Packing Machine For Steriled Surgical Blades Individual Pack
Features Gallery Product Description Request A Quote
Features
Specifications
Bag Size: 90*28mm
Speed: 60 Bags/min
Packing Film: Pure Aluminum, Aluminized, Etc., Φ≤350mm
Packing: 4 Side Seal Packing Machine
Operation Mode: Touch Screen
Driven Type: Mechanical
After-sales Service: Video Technical Support
After Warranty Service: Video Technical Support
Highlight:

Individual Pack Packing Machine

,

High Quality Sealing Packing Machine

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-150SB
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 40-50 working days
Payment Terms: T/T
Supply Ability: 50 set /month
Product Description

High Quality Automatic Four Side Sealing Packing Machine For Steriled Surgical Blades Individual Pack





Features:



1. Adopts touching Screen to control the operating, and PLC to control the actions. Very intelligent and convenient in operating and maintaining.

2. Temperature contol: Separate PID control to temperature,  suitable for vary of packing material with different quality and materials and compatible for different packing film thickness.



3. The machine frame is made of aluminium profiles with painted sheet metal surfaces, high quality and thick enough sheets, good appearance and long life in use.



4. Four side seal packing way, firmly sealing and good looking, no leaking issue and reduce the chance of bacterial infections, improve product brand level, meet medical products sealing requirements.



5. Failure self-diagnosis function, fault display at a glance. Very intelligent in operating and maintaining.



6. Multi-Language Support: To cater to a global market, it support multiple languages in the user interfaces, ensuring ease of operation for operators from different linguistic backgrounds, very simple to shift in the operating screen, normally it will be chinese-english bilingual languages, can be customized.



Packing and Shipping:


It is packaged in stretched wrapping film to make sure no damages or moving inside the wooden case, and for the edge corners will be with some cardboards to protect from scratching or damaging. It is then secured to an exported wooden case, there are 20-30cm high brackets for forklift operations. The wooden case is then loaded onto a truck or container and shipped to the customer's location.



Dose Liquid Filling Small Wet Tissue Lens Wipe Automatic Making Packing Machine 0 Dose Liquid Filling Small Wet Tissue Lens Wipe Automatic Making Packing Machine 1 Dose Liquid Filling Small Wet Tissue Lens Wipe Automatic Making Packing Machine 2
Dose Liquid Filling Small Wet Tissue Lens Wipe Automatic Making Packing Machine 3 Dose Liquid Filling Small Wet Tissue Lens Wipe Automatic Making Packing Machine 4 Dose Liquid Filling Small Wet Tissue Lens Wipe Automatic Making Packing Machine 5






Specifications:



Model SN-150SB
Packing Speed 60 bag/min
Bag Size  90*28 mm
Packing Materials pure aluminum, aluminized, etc., Φ≤350mm
Applications

all models of surgical blades

Air Consumption

≥30m3/h (self-provided), pressure: 0.6-0.8Mpa

Power Supply 220 50/60Hz
Power 5.5 KW
Machine size

(L×W×H) 2000×650×1700mm

Paper roll inside

anti-corrosion paper., Φ≤350mm

Machine Weght Approx 600kg





Machine Details:

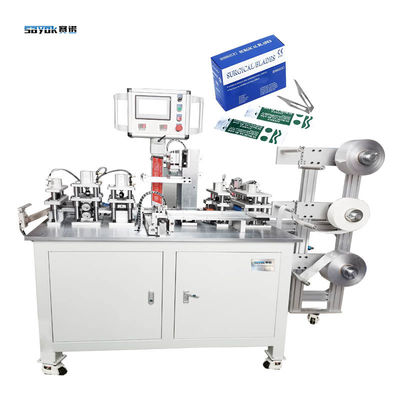

1. Packaging machine appearance



Automatic feeding, bag forming, filing and sealing, machine frame is made of aluminium profiles with painted sheet metal surfaces,. Durable and long life in use.

High Quality Automatic Four Side Sealing Packing Machine For Steriled Surgical Blades Individual Pack 6

2. Reasonable design for film roll holder

Snug structure and reasonable design, small footprint with large functions. 3 film rolls design, 2 rolls for outer aluminum foil, and one for anti-corrosion paper inserted. All film rolls adopt servo control to unwinding and feeding.

High Quality Automatic Four Side Sealing Packing Machine For Steriled Surgical Blades Individual Pack 7

3. There is a slot to control the sealing size, compatible for all models of surgical blades.

High Quality Automatic Four Side Sealing Packing Machine For Steriled Surgical Blades Individual Pack 8

4.Four side sealing with 3 layers


Designed with four side sealing way, firmly sealing and high level looking, more suitable for medical product's packing requirements.

High Quality Automatic Four Side Sealing Packing Machine For Steriled Surgical Blades Individual Pack 9

5. Operating and working system



Adopts large 7" touching screen to control the operating, and PLC to control the actions.

High Quality Automatic Four Side Sealing Packing Machine For Steriled Surgical Blades Individual Pack 10

6. Intelligent impact desgin


Impact and smallfoot print design, 2000×650×1700mm machine size, small occupied space but at a speed of 60 bag/min, save time and labors.

High Quality Automatic Four Side Sealing Packing Machine For Steriled Surgical Blades Individual Pack 11

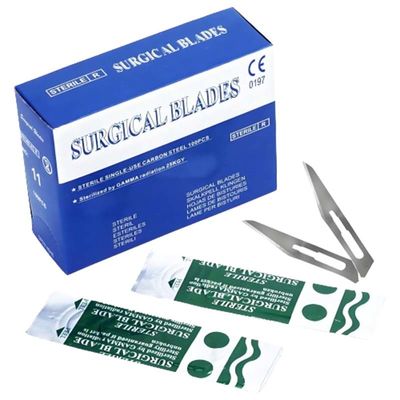

6. Applications


This machine is special developped for surgical blades's packing, compatible to packing for different surgical blades models with one machine
High Quality Automatic Four Side Sealing Packing Machine For Steriled Surgical Blades Individual Pack 12
