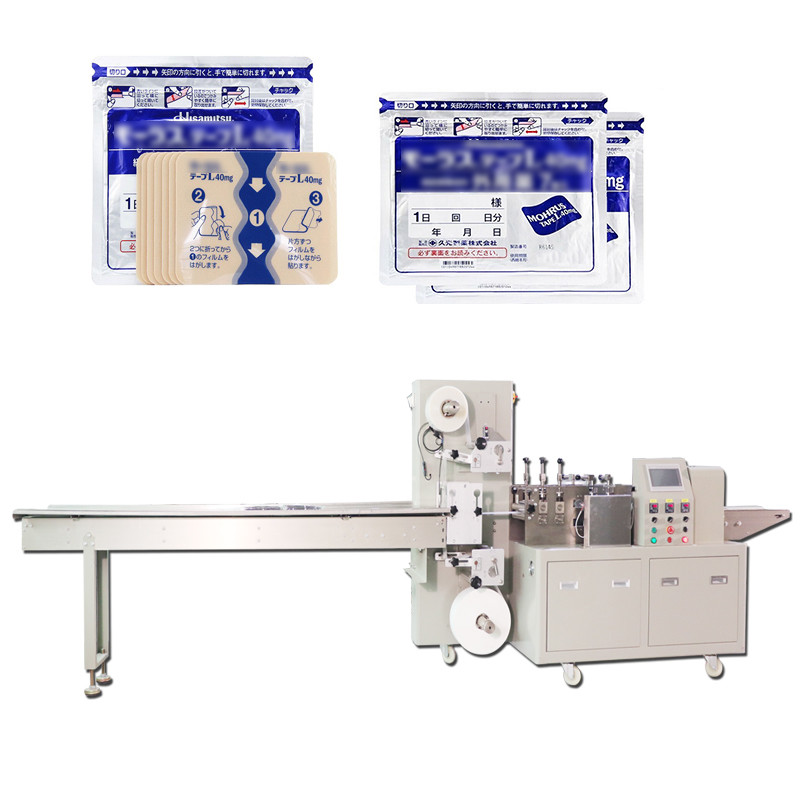

Automatic Easy Setting Packing of 4 Side Seal Packaging Machine Plaster patch packing mechine
Facture:
1. The color touch screen operation interface is simple and easy to operate; the parameter setting is convenient and quick.
2. Using the scientific three-axis servo drive system, the bag length can be set and cut immediately, in one step, saving time and film;
3. The PLC programmable controller intelligently controls the operation of the whole machine, which has the advantages of precise film feeding, stable transmission of materials, and precise cutting.
4. Independent guide column mold base, mobile synchronous heat sealing system, the temperature of the sealing surface is more uniform and stable, the edge sealing is tight, and it is durable.
5. Packaging materials of different thicknesses and materials have wider adaptability and versatility.
6. All controls are realized by software, which is convenient for function adjustment and technical upgrade, and never falls behind.
7. Automatically sense the length of the material, there is automatic product packaging, no product downtime waiting, no need to adjust the bag length.
This machine can be applied to sheet products that require sealing on four sides, such as the following products:
1. Medical Products: surgical mask, kn94 mask, medical masks, disposable masks;
2. Daily necessities: cards, wet wipes, alcohol wipes, mobile phone stickers, mobile phone cases, hardware, small plastic parts, craft gifts, sheets, toys, stickers, non-woven fabrics, cotton pads;

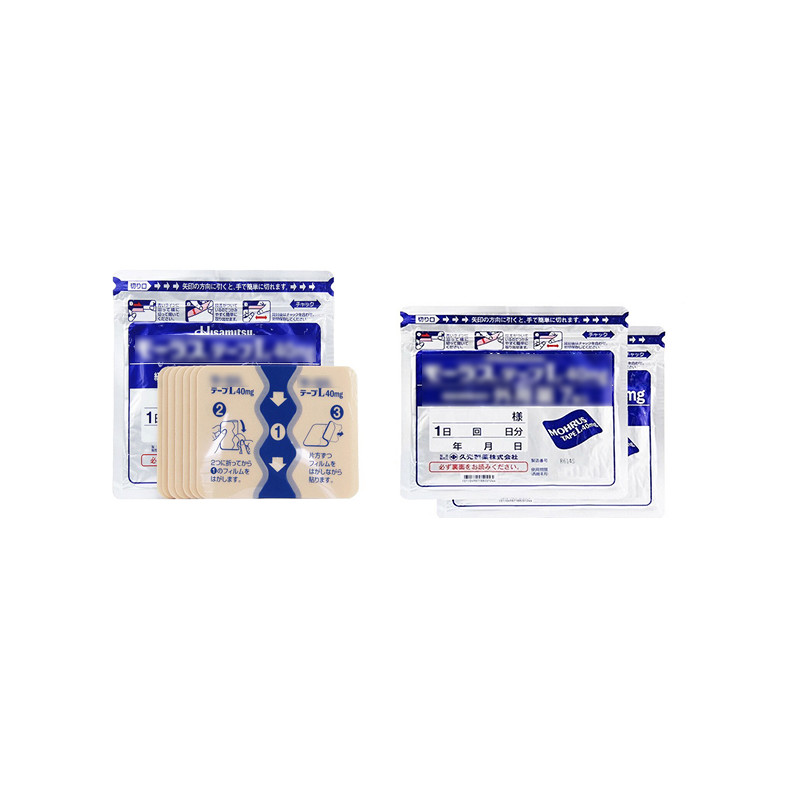

3. Medical supplies: plaster paste, analgesic paste, analgesic paste, gauze, medical paste, antipyretic paste, belly button paste, moxibustion paste, early pregnancy test paper, cooling paste, Gutong paste, alcohol cotton pad, motion sickness paste, artificial Breathe;
4. Health care: slimming patch, foot patch, eye patch, foot warming patch, heating patch, warm patch, palace warm patch, baby warmer, happy patch, fast heat patch, warm pack, foot warmer, warm bag, activated carbon self Fever-shaped bags;
conventional process
Product input → bagging → bag forming → sealing → cutting → output
Specifications:
Model |
SN-150FK |
Packing film | composite |
Packing Speed |
40-100 bags/min |
Packing Size |
L*W 65-330mm*30-110mm |
Power Supply | 220 50/60Hz |
Power | 2.5KW |
Machine size | 4000x720x1600mm |
Feeder | 4100*820*1700mm |
Machine Weght | Approx 600kg |
Air consumption |
≥30m3/h (self-provided), pressure: 0.6-0.8Mpa |
Degree of automation | Automatic |
Processing customization | Customized processing is available |
Material Type | Solid |
Applicable objects | Gifts, crafts, food, clothing, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery |
Machine Details:
1. Product Appearance It can realize the one-step process of material release, packaging and sealing and cutting |
![]() |
2.Linkage film winding Adopt multi-linked film rolls to coordinate film link, adapt to more rolled film materials. The rolled film is smoother and more effective in preventing the upper rolled film from running off. |
![]() |
3. Conveyor device
Stainless steel operating platform cassette positioning conveyor belt device |
![]() |
4.Fully automatic sealing and cutting The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation. |
![]() |
5. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
![]() |
6. Packing neat and good looking |
|
