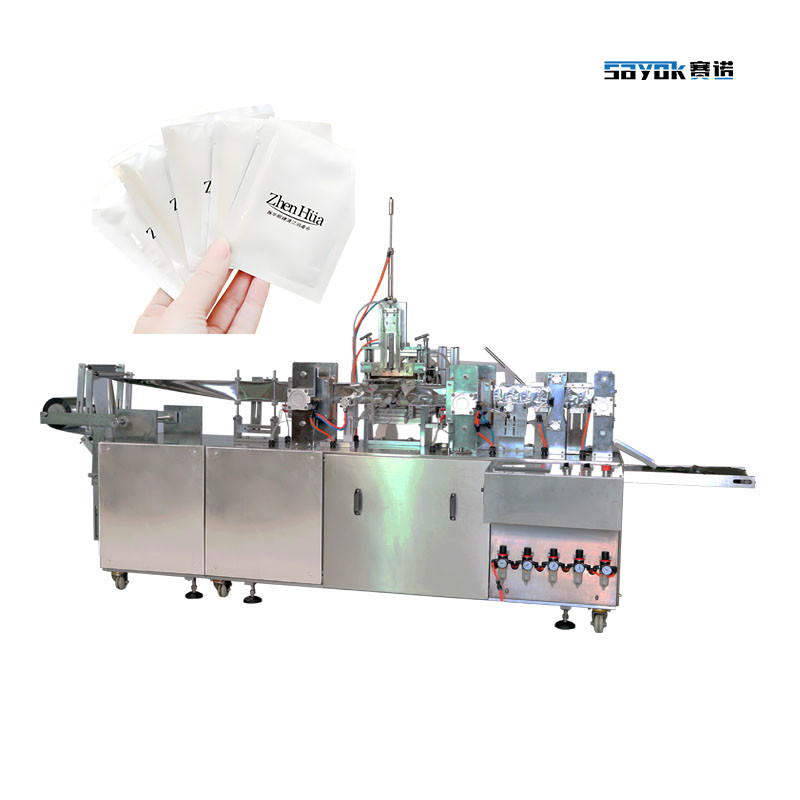

Dose Liquid Filling Small Wet Tissue Lens Wipe Automatic Making Packing Machine

Dose Liquid Filling Small Wet Tissue Lens Wipe Automatic Making Packing Machine

Features:

1.  Four side seal packing machine, sealing is more firmly and meet medical products packing requirements.

2.  Surports for bilingual languages (Chinese and English) of the operating screens, if other languages requirements, need to be customized.

3. Separate PID control to temperature, suitable for various packing materials.

4. Stopping the machine in selected position, no sticking to the knife and no waste packing film.

5. Failure self-diagnosis function, fault display at a glance.
6. High sensitivity photoelectric eye colour scale tracking, make the sealing and cutting position more accurate.

Working Process:

Raw materials onto the machine and unwinding → several folding Longitudinally→cutting→liquid folding → inserting into packages→sealing→cutting→Output.

Technical Parameter:

Wet wipe unfolded size: L300mm × W 300mm

Wet wipe Folded size:L150mm × W100mm

Bag size: L200mm × W150mm

Folding way: several folding Longitudinally → one times folding crosswise

Wetting system: dose at a certain amount

Processing ability: 60-80 bag/min, depends on film ad size

Raw materials: coiled, 30-60g/㎡,spunlace nonwoven cloth and wet strenth paper,Φ≤600mm, breadth 300mm

Packing film quality: roll, 70-110g/㎡,paper aluminum,paper plastic,aluminum plastic and so on,,breadth 400mm

Raw material paper core inside diameter: Φ 76.2mm (=3")

Total power: 220v,50Hz,2.2KW

Weight: 500 kg

Machine size: L3200mm × W2100mm × H1500mm

Packed size: L2200mm × W1000mm × H1600mm

Support and Services:

We provide professional technical support and service for our Wet Wipes Packing Machine. Our team of experienced technicians are available to answer all your questions and provide assistance with installation, operation, maintenance, and repair.

There will be tutorial videos for installations and operation for reference.

If you are ever in need of technical support, please do not hesitate to contact us. We are always happy to help you get the most out of your Wet Wipes Packing Machine.

Packing and Shipping:

The Wet Wipes Packing Machine is packaged in stretched wrapping film to make sure no damages or moving inside the wooden case, and for the edge corners will be with some cardboards to protect from scratching or damaging. It is then secured to an exported wooden case, there are 20-30cm high brackets for forklift operations. The wooden case is then loaded onto a truck or container and shipped to the customer's location.

FAQ:

Q1: What is the brand name of this product?

A1: The brand name of this product is Sayok.

Q2: What is the model number of this product?

A2: The model number of this product is SN-129F.

Q3: Where is this product made?

A3: This product is made in China.

Q4: Is this product CE certified?

A4: Yes, this product is CE certified.

Q5: What is the minimum order quantity for this product?

A5: The minimum order quantity for this product is 1.
