Touch Screen Automated Four Side Seal Packing Machine For Adhesion Promoter Products Portable Bag

1 set
MOQ
EXW US$13700-15388/set
Price
Touch Screen Automated Four Side Seal Packing Machine For Adhesion Promoter Products Portable Bag
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Quality: Stainless Steel
Optional Item: Easy Tearing Cut
Language: Chinese And English, Can Be Customized
Feature: 4 Side Seal Packing Machine
Operation Mode: Touch Screen
Driven Type: Mechanical
After-sales Service: Video Technical Support
After Warranty Service: Video Technical Support
Highlight:

Automated Four Side Seal Packing Machine

,

Touch Screen Four Side Seal Packing Machine

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-280D2
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 30-40 working days
Payment Terms: T/T
Supply Ability: 50 set /month
Product Description

Customizable Four Side Seal Packing Machine For Adhesion Promoter Products Packaging



The Adhesion Promoter Four Side Seal Packing Machine is a specialized packaging equipment designed to efficiently package adhesion promoter products in four-side sealed pouches. These machines are essential for industries such as automotive, electronics, and construction, where adhesion promoters are commonly used to enhance bonding between surfaces. Here's an introduction to the features and functionalities of the Adhesion Promoter Four Side Seal Packing Machine:



1. Quality Control Features: Some machines incorporate quality control measures such as automatic rejection systems andinspection sensors to detect and remove defective pouches, ensuring consistent product qualityand compliance with standards.



2. Under the high premise of high liquid volume, the sealing is tight, no liquid leakage, no foaming. Make sure each bag is with good sealing and longer storage days.



3. Multi-Language Support: To cater to a global market, many Alcohol Swab Packaging Machines support multiple languages in their user interfaces, ensuring ease of operation for operators from different linguistic backgrounds, very simple to shift in the operating screen.



4. The color touch screen operation interface is simple and easy to operate; the parameter setting is convenient and quick.



5. The PLC programmable controller intelligently controls the operation of the whole machine, which has the advantages of precise film feeding, stable transmission of materials, and precise cutting.



6. Compliance with Regulatory Standards:  Adhesion Promoter Four Side Seal Packing Machines comply with industry regulations andsafety standards, ensuring that packaged products meet quality, safety, and labelingrequirements for global markets.





Applications

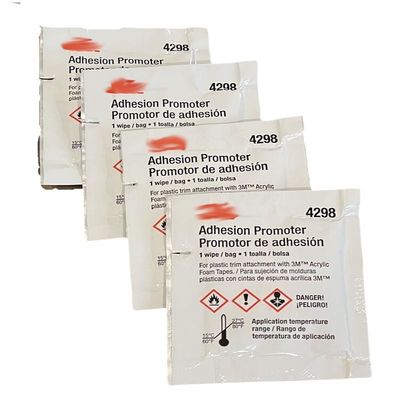

Suitable for bulk production and packaging of ahesion promoter bag small pack, film, operating line and packing size can be customized.





Specifications:



Model SN-280D2
Packing Speed 80-100/min (bag/min)
Expended size 30x60mm (to be customized)
Folded size 30*30mm
Folding way

Folded once, 2 layer

Packing Size L*W 65*55mm, to be customized
Power Supply 220/380V 50/60Hz
Power 5KW
Machine size

(L*W*H)2500×1200×1500mm

Raw materials

Coiled, 30-60g/㎡ spunlace non-woven fabric, diameter ≤600mm, width 60mm 30/70 R/T or 50/50 R/T

Machine Weght Approx 500kg



Packing film

73-110g/㎡ paper-aluminum film composite wrapping paper, Φ≤350 mm, width 600 mm, inner diameter of paper core 76.2

Place of Origin GUANGDONG,CHINA
Applicable industries

Commonly used in the chemical, medical, healthcare, and cosmetic industries



Machine Details:

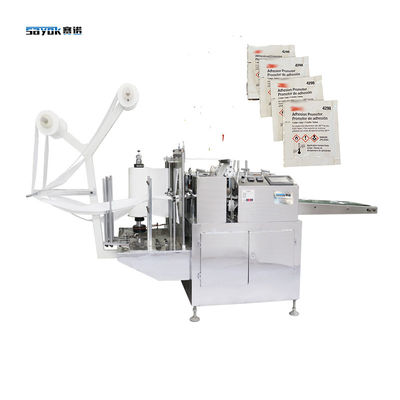

1. Packaging machine appearance



making and packing 2 in 1 machine. reasonable design and stainless steel appearance. Durable and long life in use.

Touch Screen Automated Four Side Seal Packing Machine For Adhesion Promoter Products Portable Bag 0

2. Fully automated sealing and cutting

Snug structure and reasonable design, small footprint with large functions. 6 lanes, can be with or without slitting, more compatible for the non-woven raw material. Easier to get the raw materials with an more economic price.

Touch Screen Automated Four Side Seal Packing Machine For Adhesion Promoter Products Portable Bag 1

3. Support two different materials packaging film

Can be single roll (top and bottom layer of the same material) can be double roll (top and bottom layer of different materials), convenient for different product packaging options.

Touch Screen Automated Four Side Seal Packing Machine For Adhesion Promoter Products Portable Bag 2

4.Fullyautmatic
Adopt servo drive system;PLC intelligently controlsthe operation of the wholemachine, precise filmfeeding, stable cottonsheet transmission, andprecise bag cutting

Touch Screen Automated Four Side Seal Packing Machine For Adhesion Promoter Products Portable Bag 3

5. Liquidaddition
lmported liquid pump, theliquid filling volume isdirectly set on the touchscreen. High precision ofliquid addition

Touch Screen Automated Four Side Seal Packing Machine For Adhesion Promoter Products Portable Bag 4

6.Good sealing
Tight sealing withoutliquid leakage andbubbling under thepremise of high liquiddosing, four side sealing effect.

Touch Screen Automated Four Side Seal Packing Machine For Adhesion Promoter Products Portable Bag 5
6.Support for custom
We can customize designs according to customers' needs to meet diverse needs. Our technical department can also help you to analyze, design and test your new products.
Touch Screen Automated Four Side Seal Packing Machine For Adhesion Promoter Products Portable Bag 6
