Customizable PLC Four Side Seal Packing Machine For Adhesion Promoter Products Packaging

1 set
MOQ
EXW US$13700-15388/set
Price
Customizable PLC Four Side Seal Packing Machine For Adhesion Promoter Products Packaging
Features Gallery Product Description Request A Quote
Features
Specifications
Control: PLC + HMI
Speed: 80-120 Bag/min
Language: Chinese And English, Can Be Customized
Feature: 4 Side Seal Packing Machine
Operation Mode: Touch Screen
Driven Type: Mechanical
After-sales Service: Video Technical Support
After Warranty Service: Video Technical Support
Highlight:

Customizable Four Side Seal Packing Machine

,

PLC Four Side Seal Packing Machine

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-280D2
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 30-40 working days
Payment Terms: T/T
Supply Ability: 50 set /month
Product Description

Customizable Four Side Seal Packing Machine For Adhesion Promoter Products Packaging



The Adhesion Promoter Four Side Seal Packing Machine is a specialized packaging equipment designed to efficiently package adhesion promoter products in four-side sealed pouches. These machines are essential for industries such as automotive, electronics, and construction, where adhesion promoters are commonly used to enhance bonding between surfaces. Here's an introduction to the features and functionalities of the Adhesion Promoter Four Side Seal Packing Machine:



1. Four-Side Sealing Capability: The machine is specifically designed to create four-side sealed pouches, providing enhanced protection and containment for adhesion promoter products to longer the expiring date.



2. Versatile Packaging Options: It offers versatility in packaging options, allowing manufacturers to produce pouches of various sizes and dimensions to accommodate different product volumes and application requirements.



3. Automated Packaging Process: The machine automates the entire packaging process, including pouch forming, filling, sealing, and cutting, ensuring high efficiency and consistency in packaging production. Save in time and labours.



4. The color touch screen operation interface is simple and easy to operate; the parameter setting is convenient and quick.



5. The PLC programmable controller intelligently controls the operation of the whole machine, which has the advantages of precise film feeding, stable transmission of materials, and precise cutting.



6. Compliance with Regulatory Standards:  Adhesion Promoter Four Side Seal Packing Machines comply with industry regulations andsafety standards, ensuring that packaged products meet quality, safety, and labelingrequirements for global markets.





Applications

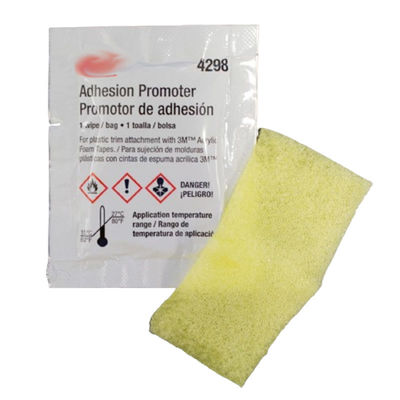

Suitable for bulk production and packaging of ahesion promoter bag small pack, film, operating line and packing size can be customized.





Specifications:



Model SN-280D2
Packing Speed 80-100/min (bag/min)
Expended size 30x60mm (to be customized)
Folded size 30*30mm
Folding way

Folded once, 2 layer

Packing Size L*W 65*55mm, to be customized
Power Supply 220/380V 50/60Hz
Power 5KW
Machine size

(L*W*H)2500×1200×1500mm

Raw materials

Coiled, 30-60g/㎡ spunlace non-woven fabric, diameter ≤600mm, width 60mm 30/70 R/T or 50/50 R/T

Machine Weght Approx 500kg



Packing film

73-110g/㎡ paper-aluminum film composite wrapping paper, Φ≤350 mm, width 600 mm, inner diameter of paper core 76.2

Place of Origin GUANGDONG,CHINA
Applicable industries

Commonly used in the chemical, medical, healthcare, and cosmetic industries



Machine Details:

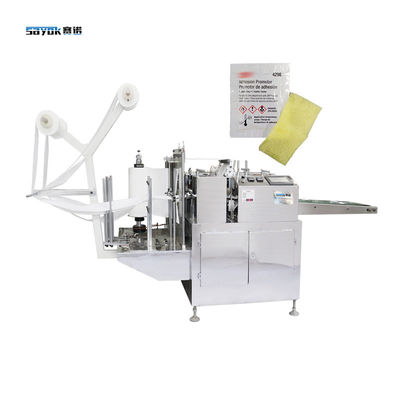

1. Packaging machine appearance



making and packing 2 in 1 machine. reasonable design and stainless steel appearance. Durable and long life in use.

Customizable PLC Four Side Seal Packing Machine For Adhesion Promoter Products Packaging 0

2. Fully automated sealing and cutting

Snug structure and reasonable design, small footprint with large functions. 6 lanes, can be with or without slitting, more compatible for the non-woven raw material. Easier to get the raw materials with an more economic price.

Customizable PLC Four Side Seal Packing Machine For Adhesion Promoter Products Packaging 1

3. Support two different materials packaging film

Can be single roll (top and bottom layer of the same material) can be double roll (top and bottom layer of different materials), convenient for different product packaging options.

Customizable PLC Four Side Seal Packing Machine For Adhesion Promoter Products Packaging 2

4.Fullyautmatic
Adopt servo drive system;PLC intelligently controlsthe operation of the wholemachine, precise filmfeeding, stable cottonsheet transmission, andprecise bag cutting

Customizable PLC Four Side Seal Packing Machine For Adhesion Promoter Products Packaging 3

5. Liquidaddition
lmported liquid pump, theliquid filling volume isdirectly set on the touchscreen. High precision ofliquid addition

Customizable PLC Four Side Seal Packing Machine For Adhesion Promoter Products Packaging 4

6.Good sealing
Tight sealing withoutliquid leakage andbubbling under thepremise of high liquiddosing, four side sealing effect.

Customizable PLC Four Side Seal Packing Machine For Adhesion Promoter Products Packaging 5
6.Support for custom
We can customize designs according to customers' needs to meet diverse needs. Our technical department can also help you to analyze, design and test your new products.
Customizable PLC Four Side Seal Packing Machine For Adhesion Promoter Products Packaging 6
