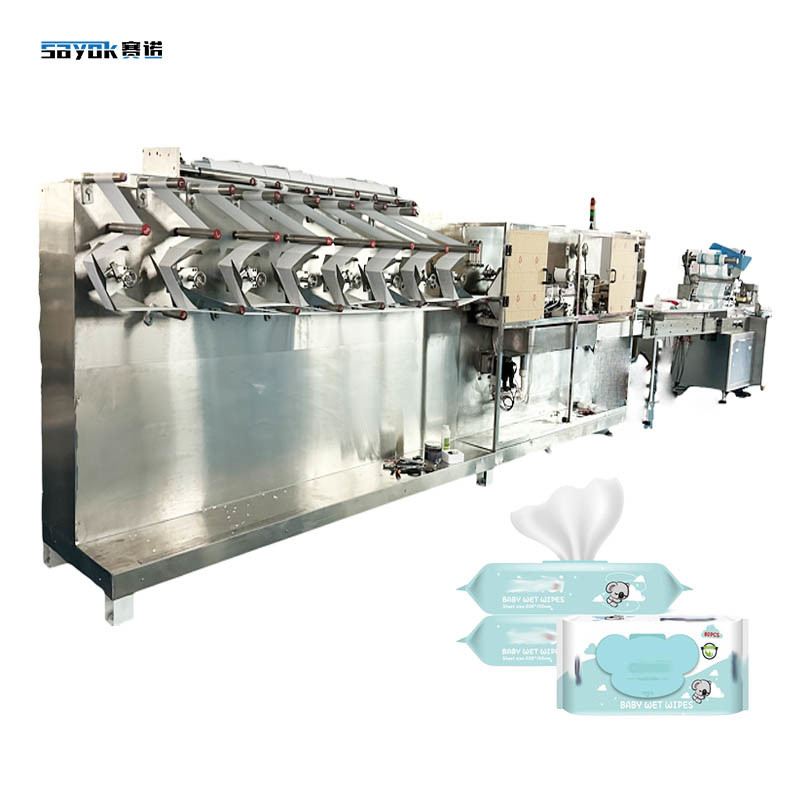

Name: 8L High Efficiency Family Wipe Packing Machine Servo Driven Stacking System Wipes Machine
Brand: Foshan Sayok Intelligent Machinery Co., Ltd.，
SKU: SN-8L-450W
Price: 63,344.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Advantages: Increased Efficiency

Feature: Sealing Mechanisms、Multi-language Support

Place Of Origin: Guangdong, China

Automatic Grade: Automatic

Display Screen: 7" High Quality Large Screen

Driven Type: Mechanical

After-sales Service: Video Technical Support

OEM/ODM: YES

Highlight:

High Efficiency Family Wipe Packing Machine

8L Family Wipe Packing Machine

Servo Driven Wipes Packing Machine

Basic Infomation

Place of Origin: China

Brand Name: Sayok

Certification: CE

Model Number: SN-8L-450W

Payment & Shipping Terms

Packaging Details: Exported wooden case, 1x40HC for 1 set

Delivery Time: 35-45 working days

Payment Terms: T/T

Supply Ability: 50 set /month

Gallery

8L High Efficiency Family Wipe Packing Machine Servo Driven Stacking System Wipes Machine

Product Description

Servo Driven Stacking System Wipes Machine 8L High Efficiency Family Wipe Packing Machine

Quick Details

1. Consist of raw material feeding folding part, liquid filling part, cutting stacking part and packing labeling part, can link with lid machine for a fully automatic line.

2. Apply for 30-120 pieces wipes making and packing, lengthwise without folding. Opening position, labeling position, feeding position, color mark position, which can be changed directly on the touch screen

3. Dose liquid filling system, changing liquid percentage in setting, the liquid filling pump spray evenly to ensure that each piece is evenly moistened, then stacking flat and fast.

4. Wet wipes packing machines often have adjustable speed settings to accommodate different production requirements. The speed can be adjusted to optimize the packaging process based on factors such as the type of wipes, packaging material, and desired output.

5. Wet wipes packing machines are often designed to meet the regulatory requirements of the industry.

Features

Resonable and tightenly design for each parts, high quality configuration make sure each parts with smoother interface, running smoothly and operate with high efficient.
Humidification device for spunlace non-woven fabrics: single spray type and second concentrated spray type.
Electrical control system: PLC system, man-machine interface, control circuit, power circuit, temperature control and other auxiliary controls.
Equiped with reciprocating pillow packaging machine for perfect gusset bag of big pack, make the finished packed products with good looking.

P.S. specific features and capabilities may vary depending on the manufacturer and model of the wet wipes packing machine. Different machines are designed to accommodate various sizes and types of wet wipes, production speeds, and packaging formats.

Specifications:

Wipes Length	100-185 mm, can set in touch screen
Wet Wipes Unfolded Size	(140-185) x (150-200) mm (L xW)
Wet Wipes Folded Size	(140-185) x (80-110) mm (Width is adjustable, LxW)
Folding Methods	"Z" type
Bag size	LxW: (130-160) x (50-100) mm
Date Coding	Equiped with ink wheel coding device (low cost, easy to replace)
Processing capacity	300-400 cut / min, can set in touch screen
Packaging film requirements	70-130g/m2 AL paper laminated film, PE/PET composite film etc. Φ≤400mm, width 200-380mm
inner diameter of raw paper core	Φ 76.2 mm (=3")
Total power	380V 50Hz 9.6KW
Raw Material	40-80g non-woven cloth, spunlace, dust free paper
Raw material expended spec	(1000-1250) x￠1200 (mm, Wx Diameter)
Cloth feeding system	servo motor
cutting system	inverter motor
stacking system	servo motor
Machine size	LxWxH: 10050 x 2350 x 1800 mm
Machine weight	about 3300 kg

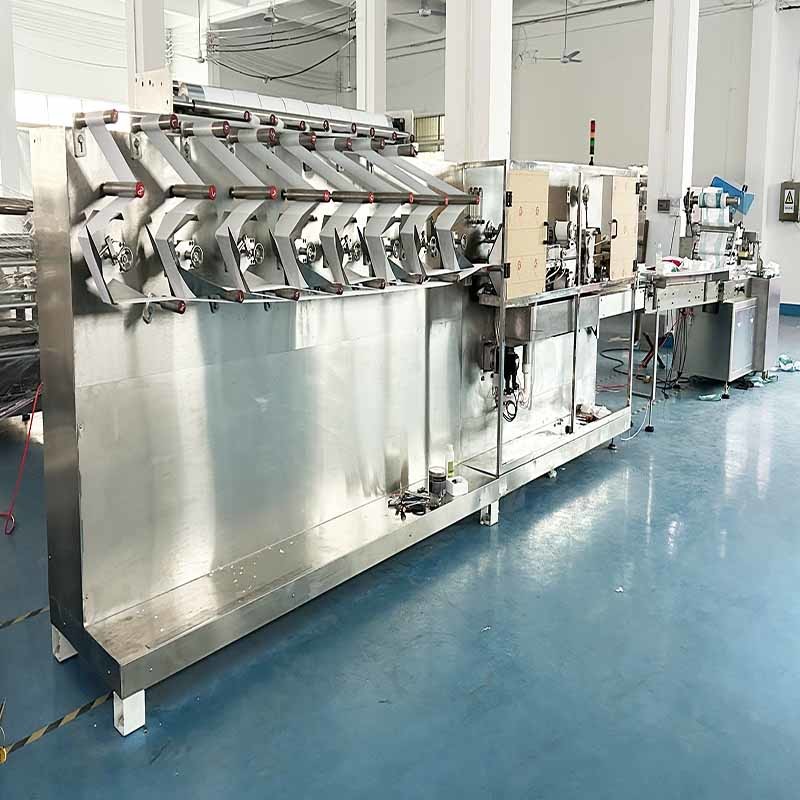

Machine Details:

1. Stainless steel quality, good in appearance and machine is more durable, long life in using. Be consist of feeding folding part, liquid filling part, cutting stacking part, packing labeling part etc, can be optional of lid machine. It is a non-stop fully automatic line.
2. Each axis is independently controlled for tension and driven independently. Folding very smoothly and unify. 8 slitting lanes for higher productivity, can be customized for the slitting lanes.
3. Tightly & reasonable liquid filling, cutting and stacking mechanism. Make sure each wipes with even liquid and good stacking. Can change related setting drectly from the display screen, very convenient and simple to operate.
4. Large raw material roll holder, can install the raw material rolls within (1000-1250) x￠1200 (mm, W x Diameter), reducing the changing raw material time and improving the efficiency.
5. Servo driven, PLC control to packing labeling part, easy to operate and link with the producting part. Reciprocating up film roll design, high speed and good gusset appearance, top can be with punching hole and labeling.
6. The wet wipe machine is applicated for daily use wipes, baby wipes, ladies wipes, nursing wipes, makeup remover wipes, sanitary wipes, catering wipes, hotel wipes, kitchen wipes, alcohol wipes , Disinfection wipes, industrial wipes and other wet wipes production requirements.
