Flexible Length Adjusted Packing Machine Liquid Screen Protector Wipe Production Line
Facture:
1. Software Control - All controls are implemented by software. It can install intermittent air device and spray alcohol device to implement adjusting functions immediately and upgrading technology to ensure it will never fall behind.
2. Temperature contol: Separate PID control to temperature, easy and convenient to operate and maintain, suitable for vary of packing material with different quality and materials.
3. In-line Printing Technologies: Offering in-line printing technologies, machines can print information directly onto the alcohol swabs or packaging materials, eliminating the need for separate labeling processes. Optional to be normal date coding or inkjet printing.
4. Multi-Functional End-of-Line Solutions: Machine have function of automatic counting and draw distance. Integrating multi-functional end-of-line solutions, these machines can perform additional tasks such as cartoning, bundling, or case packing, streamlining the entire packaging process.
5. Remote Accessibility: With the integration of smart technologies, some machines offer remote accessibility. Operators can monitor and control the machine from a distance, facilitating efficient management and troubleshooting.
6. Multi-Language Support: To cater to a global market, many Alcohol Swab Packaging Machines support multiple languages in their user interfaces, ensuring ease of operation for operators from different linguistic backgrounds, very simple to shift in the operating screen.
Specifications:
| Model | SN-280D6 |
| Packing Speed | 700~800/min (bag/min) |
| Expended size | 30x60 or 60x60mm |
| Folded size | 30*30mm |
| Folding way |
Folded once, 2 layer or no folded single layer |
| Packing Size | L*W 50*50mm, lenth can be customized |
| Power Supply | 220/380V 50/60Hz |
| Power | 5KW |
| Machine size |
(L*W*H)2500×1200×1500mm |
| Raw materials |
Coiled, 30-60g/㎡ spunlace non-woven fabric, diameter ≤600mm, width 60mm 30/70 R/T or 50/50 R/T |
| Machine Weght | Approx 500kg |
| Film width | 600mm(mm) |
| Packing film |
73-110g/㎡ paper-aluminum film composite wrapping paper, Φ≤350 mm, width 600 mm, inner diameter of paper core 76.2 |
| Place of Origin | GUANGDONG,CHINA |
| Applicable industries |
Commonly used in the medical, healthcare, and cosmetic industries |
Machine Details:
|

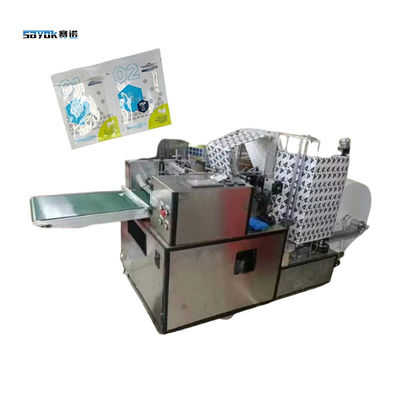

1. Packaging machine appearance
making and packing 2 in 1 machine. reasonable design and stainless steel appearance. Durable and long life in use. |
 |
|
2. Fully automated sealing and cutting Snug structure and reasonable design, small footprint with large functions. 6 lanes, can be with or without slitting, more compatible for the non-woven raw material. Easier to get the raw materials with an more economic price. |
|
|
3. Support two different materials packaging film Can be single roll (top and bottom layer of the same material) can be double roll (top and bottom layer of different materials), convenient for different product packaging options. |
|
|
4.Fullyautmatic |
|
|
5. Liquidaddition |
|
|
6.Good sealing |
|
| 6.Support for custom
We can customize designs according to customers' needs to meet diverse needs. Our technical department can also help you to analyze, design and test your new products.
|
|
