Automatic Counting Spacing Alcohol Prep Pad Packing Machine Production Line
Facture:
1. Dose Liquid Pump - Does liquid pump, the amount of liquid added can be set directly on the touch screen, very easy to operate and control.
2. Good Sealing Appearance and Unify: Under the premise of high liquid volume, the sealing is tight, no liquid leakage, no foaming. Very good-looking and even edges of four side sealing pack, very unify pack.
3. In-line Printing Technologies: Offering in-line printing technologies, machines can print information directly onto the alcohol swabs or packaging materials, eliminating the need for separate labeling processes. Optional to be normal date coding or inkjet printing.
4. Multi-Functional End-of-Line Solutions: Machine have function of automatic counting and draw distance. Integrating multi-functional end-of-line solutions, these machines can perform additional tasks such as cartoning, bundling, or case packing, streamlining the entire packaging process.
5. Higher Automatic Degree: Workers only need to install rolling films and raw materials to the machines, the alcohol prep pads can be automatic slitting, folding, liquid filling, bagging, cutting, sealing and counting etc, it is a fully automatic making packing line, save labour cost and increase working efficiency.
6. Multi-Language Support: English/Chinese 2 languages shift to choose, very convenient for the overseas users to use without problems. And it is ok to offer the local languages to load into the system as buyer's request.
Specifications:
| Model | SN-280D6 |
| Packing Speed | 700~800/min (bag/min) |
| Expended size | 30x60 or 60x60mm |
| Folded size | 30*30mm |
| Folding way |
Folded once, 2 layer or no folded single layer |
| Packing Size | L*W 50*50mm, lenth can be customized |
| Power Supply | 220/380V 50/60Hz |
| Power | 5KW |
| Machine size |
(L*W*H)2500×1200×1500mm |
| Raw materials |
Coiled, 30-60g/㎡ spunlace non-woven fabric, diameter ≤600mm, width 60mm 30/70 R/T or 50/50 R/T |
| Machine Weght | Approx 500kg |
| Film width | 600mm(mm) |
| Packing film |
73-110g/㎡ paper-aluminum film composite wrapping paper, Φ≤350 mm, width 600 mm, inner diameter of paper core 76.2 |
| Place of Origin | GUANGDONG,CHINA |
| Applicable industries |
Commonly used in the medical, healthcare, and cosmetic industries |
Machine Details:
|

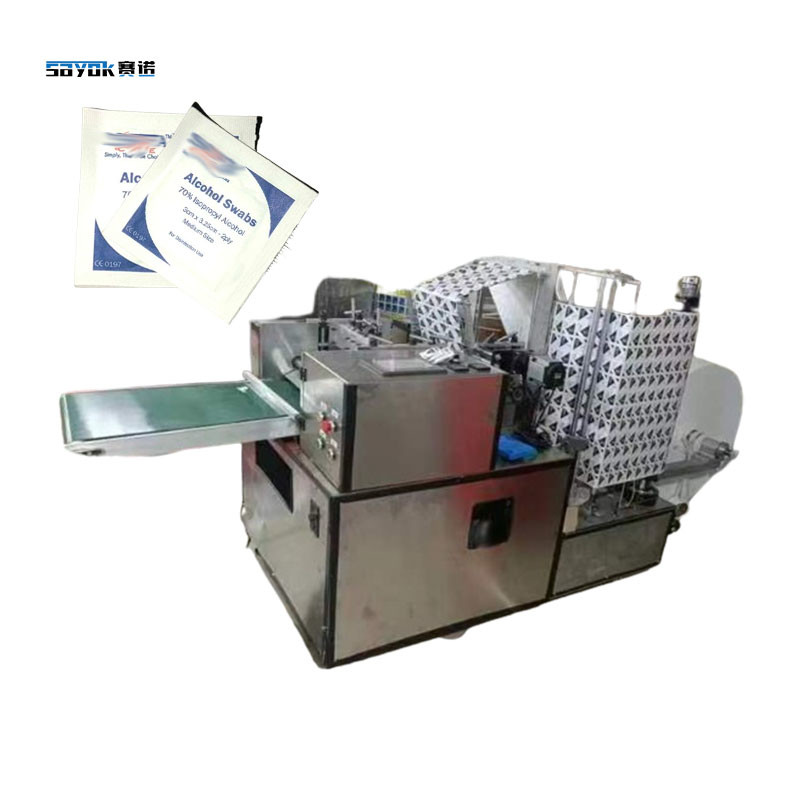

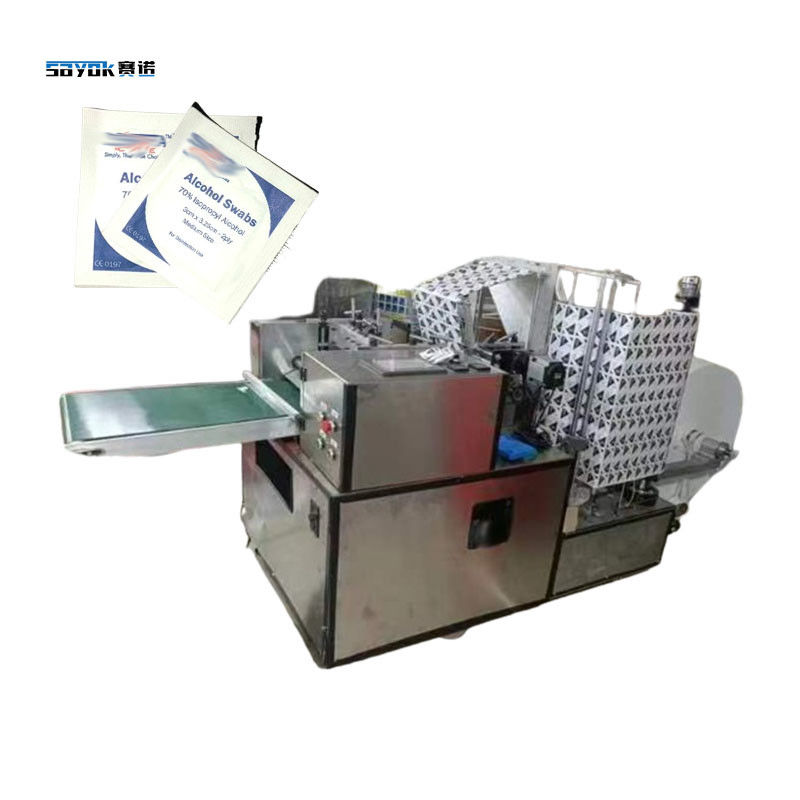

1. Packaging machine appearance
making and packing 2 in 1 machine. reasonable design and stainless steel appearance. Durable and long life in use. |
 |
|
2. Fully automated sealing and cutting Snug structure and reasonable design, small footprint with large functions. 6 lanes, can be with or without slitting, more compatible for the non-woven raw material. Easier to get the raw materials with an more economic price. |
|
|
3. Support two different materials packaging film Can be single roll (top and bottom layer of the same material) can be double roll (top and bottom layer of different materials), convenient for different product packaging options. |
|
|
4.Fullyautmatic |
|
|
5. Liquidaddition |
|
|
6.Good sealing |
|
| 6.Support for custom
We can customize designs according to customers' needs to meet diverse needs. Our technical department can also help you to analyze, design and test your new products.
|
|
