Stainless Steel Quality Alcohol Lens Wipe Production Machine Four Side Seal Packing Machine
Facture:
1. HMI: Color touch screen operation interface operation, 7" large touch screen, easy to operate.
2. Servo + PLC Control System: Servo drive system is adopted; PLC programmable controller intelligently controls the operation of the whole machine, precise film feeding, stable transmission of cotton sheets, and precise bag cutting.
3. Multi-Functional Packaging Options: Offering multi-functional packaging capabilities, some machines can produce not only alcohol swabs but also diverse packaging formats, expanding their versatility and utility in different product lines.
4. Environmentally Friendly Features: In alignment with sustainability goals, certain machines incorporate environmentally friendly features such as energy-efficient components and recyclable packaging materials, contributing to a more sustainable production process.
5. Remote Accessibility: With the integration of smart technologies, some machines offer remote accessibility. Operators can monitor and control the machine from a distance, facilitating efficient management and troubleshooting.
6. Multi-Language Support: To cater to a global market, many Alcohol Swab Packaging Machines support multiple languages in their user interfaces, ensuring ease of operation for operators from different linguistic backgrounds, very simple to shift in the operating screen.
Specifications:
| Model | SN-280D6 |
| Packing Speed | 700~800/min (bag/min) |
| Expended size | 30x60 or 60x60mm |
| Folded size | 30*30mm |
| Folding way |
Folded once, 2 layer or no folded single layer |
| Packing Size | L*W 50*50mm, lenth can be customized |
| Power Supply | 220/380V 50/60Hz |
| Power | 5KW |
| Machine size |
(L*W*H)2500×1200×1500mm |
| Raw materials |
Coiled, 30-60g/㎡ spunlace non-woven fabric, diameter ≤600mm, width 60mm 30/70 R/T or 50/50 R/T |
| Machine Weght | Approx 500kg |
| Film width | 600mm(mm) |
| Packing film |
73-110g/㎡ paper-aluminum film composite wrapping paper, Φ≤350 mm, width 600 mm, inner diameter of paper core 76.2 |
| Place of Origin | GUANGDONG,CHINA |
| Applicable industries |
Commonly used in the medical, healthcare, and cosmetic industries |
Machine Details:
|

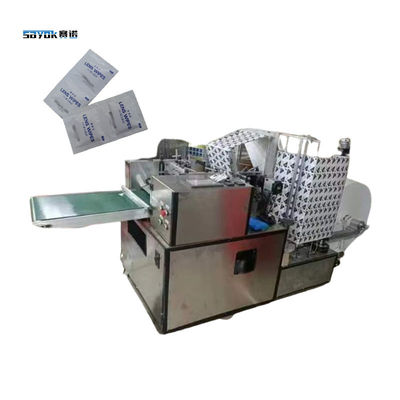

1. Packaging machine appearance
making and packing 2 in 1 machine. reasonable design and stainless steel appearance. Durable and long life in use. |
 |
|
2. Fully automated sealing and cutting Snug structure and reasonable design, small footprint with large functions. 6 lanes, can be with or without slitting, more compatible for the non-woven raw material. Easier to get the raw materials with an more economic price. |
|
|
3. Support two different materials packaging film Can be single roll (top and bottom layer of the same material) can be double roll (top and bottom layer of different materials), convenient for different product packaging options. |
|
|
4.Fullyautmatic |
|
|
5. Liquidaddition |
|
|
6.Good sealing |
|
| 6.Support for custom
We can customize designs according to customers' needs to meet diverse needs. Our technical department can also help you to analyze, design and test your new products.
|
|
