Mechanical Driven Four Side Sealing Packaging Machine 220V 5KW 6 Lanes Alcohol Swab Production

1 set
MOQ
EXW US$13700-15388/set
Price
Mechanical Driven Four Side Sealing Packaging Machine 220V 5KW 6 Lanes Alcohol Swab Production
Features Gallery Product Description Request A Quote
Features
Specifications
Feature: 6 Lanes For High Productivity
Appearance: Stainless Steel
Packing Film: 0.08 Mm Composite Film
Packing: 4 Side Seal Packing Machine
Operation Mode: Touch Screen
Driven Type: Mechanical
After-sales Service: Video Technical Support
After Warranty Service: Video Technical Support
Highlight:

Mechanical Driven Side Sealing Packaging Machine

,

5KW Side Sealing Packaging Machine

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-280D6
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 20-30 working days
Payment Terms: T/T
Supply Ability: 50 set /month
Product Description

220V 5KW 6 Lanes Alcohol Swab Production Four Side Seal Packaging Machine

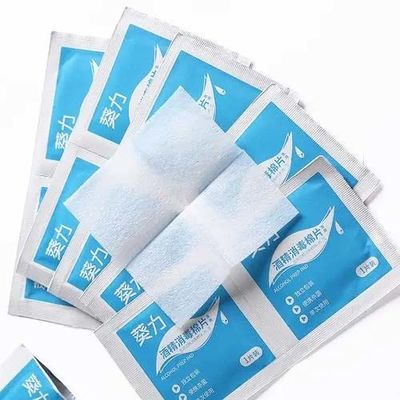

Introduction to Alcohol Swab Packaging Machine

The automatic alcohol pre pads packaging machine is developed by Sayok company basic on many year experience in the production of medical dressing production lines and medical equipment production equipment. Operating stable with high productivity, suitable for bulk production and packaging of alcohol pre pads in the medical, healthcare, and cosmetic industries, these machines cater to the high demand for sterilization and cleansing products.



Facture:



  1. 1. Material Versatility: Alcohol Swab Packaging Machines are often designed to work with a variety of materials, accommodating different types of sterilization pads and packaging materials, such as non-woven fabrics and aluminum foil, cloth is suggest to use 30/70 R/T and 50/50 R/T, whch are with better assorbing liquid at a good cost.

  2. 2. Integrated Quality Control: Some machines incorporate integrated quality control systems to monitor and ensure the uniformity and quality of each alcohol swab throughout the production process. This feature enhances the reliability of the final product. Common size is 50x50 mm bag size.

  3. 3. Adaptive Packaging Designs: These machines may have the capability to adapt packaging designs based on market trends or specific customer requirements, allowing for flexibility in branding and product presentation..

  4. 4. High-Speed Production Capacity: Alcohol Swab Packaging Machines are designed for high-speed production to meet large-scale manufacturing demands. High production capacity enables the rapid manufacturing of a significant quantity of alcohol disinfectant products in a short timeframe.

  5. 5. Automated Packaging System: These machines is making packing 2 in 1 machine, typically include an automated packaging system to swiftly and accurately package the produced alcohol swabs, ensuring product hygiene and safety.

  6. 6. User-Friendly Interface: Most machines feature an intuitive user interface, allowing operators to easily set production parameters, monitor the production process, and perform basic maintenance tasks.


Process flow:

Non woven fabric and packaging film rolling machine → non-woven fabric longitudinal fold (Or do not fold) → cutting → adding liquid → folding sheet output → bag making → packaging → sealing → exporting packaged finished products.





Specifications:



Model SN-280D6
Packing Speed 700~800/min (bag/min)
Expended size 30x60 or 60x60mm
Folded size 30*30mm
Folding way

Folded once, 2 layer or no folded single layer

Packing Size L*W 50*50mm, lenth can be customized
Power Supply 220/380V 50/60Hz
Power 5KW
Machine size

(L*W*H)2500×1200×1500mm

Raw materials

Coiled, 30-60g/㎡ spunlace non-woven fabric, diameter ≤600mm, width 60mm 30/70 R/T or 50/50 R/T

Machine Weght Approx 500kg



Film width 600mm(mm)
Packing film

73-110g/㎡ paper-aluminum film composite wrapping paper, Φ≤350 mm, width 600 mm, inner diameter of paper core 76.2

Place of Origin GUANGDONG,CHINA
Applicable industries

Commonly used in the medical, healthcare, and cosmetic industries



Machine Details:

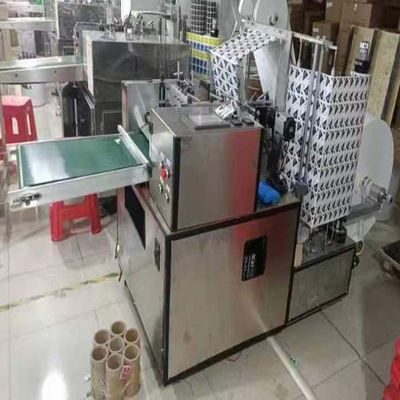

1. Packaging machine appearance



making and packing 2 in 1 machine. reasonable design and stainless steel appearance. Durable and long life in use.

Mechanical Driven Four Side Sealing Packaging Machine 220V 5KW 6 Lanes Alcohol Swab Production 0

2. Fully automated sealing and cutting

Snug structure and reasonable design, small footprint with large functions. 6 lanes, can be with or without slitting, more compatible for the non-woven raw material. Easier to get the raw materials with an more economic price.

Mechanical Driven Four Side Sealing Packaging Machine 220V 5KW 6 Lanes Alcohol Swab Production 1

3. Support two different materials packaging film

Can be single roll (top and bottom layer of the same material) can be double roll (top and bottom layer of different materials), convenient for different product packaging options.

Mechanical Driven Four Side Sealing Packaging Machine 220V 5KW 6 Lanes Alcohol Swab Production 2

4.Fullyautmatic
Adopt servo drive system;PLC intelligently controlsthe operation of the wholemachine, precise filmfeeding, stable cottonsheet transmission, andprecise bag cutting

Mechanical Driven Four Side Sealing Packaging Machine 220V 5KW 6 Lanes Alcohol Swab Production 3

5. Liquidaddition
lmported liquid pump, theliquid filling volume isdirectly set on the touchscreen. High precision ofliquid addition

Mechanical Driven Four Side Sealing Packaging Machine 220V 5KW 6 Lanes Alcohol Swab Production 4

6.Good sealing
Tight sealing withoutliquid leakage andbubbling under thepremise of high liquiddosing, four side sealing effect.

Mechanical Driven Four Side Sealing Packaging Machine 220V 5KW 6 Lanes Alcohol Swab Production 5
6.Support for custom
We can customize designs according to customers' needs to meet diverse needs. Our technical department can also help you to analyze, design and test your new products.
Mechanical Driven Four Side Sealing Packaging Machine 220V 5KW 6 Lanes Alcohol Swab Production 6
