6 Lanes With Slitting Automatic Alcohol Pad High Speed Making Packaging Machine
Facture:
1. Automatic Production Process: It automated production process, efficiently handling various production steps, including alcohol filling, cutting, and packaging, then enhancing overall production efficiency.
2. High Customization Capability: Allows to change the lengthwise, capatible for many different sizes, can be customized.
3. Precision Alcohol Application System: A critical step in disinfectant pad production is the precise application of alcohol. These machines come equipped with accurate alcohol application systems to ensure each swab receives an appropriate amount of alcohol, guaranteeing the effectiveness of the disinfectant.
4. High-Speed Production Capacity: Alcohol Swab Packaging Machines are designed for high-speed production to meet large-scale manufacturing demands. High production capacity enables the rapid manufacturing of a significant quantity of alcohol disinfectant products in a short timeframe.
5. Automated Packaging System: These machines is making packing 2 in 1 machine, typically include an automated packaging system to swiftly and accurately package the produced alcohol swabs, ensuring product hygiene and safety.
6. User-Friendly Interface: Most machines feature an intuitive user interface, allowing operators to easily set production parameters, monitor the production process, and perform basic maintenance tasks.
Specifications:
| Model | SN-280D6 |
| Packing Speed | 700~800/min (bag/min) |
| Expended size | 30x60 or 60x60mm |
| Folded size | 30*30mm |
| Folding way |
Folded once, 2 layer or no folded single layer |
| Packing Size | L*W 50*50mm, lenth can be customized |
| Power Supply | 220/380V 50/60Hz |
| Power | 5KW |
| Machine size |
(L*W*H)2500×1200×1500mm |
| Raw materials |
Coiled, 30-60g/㎡ spunlace non-woven fabric, diameter ≤600mm, width 60mm 30/70 R/T or 50/50 R/T |
| Machine Weght | Approx 500kg |
| Film width | 600mm(mm) |
| Packing film |
73-110g/㎡ paper-aluminum film composite wrapping paper, Φ≤350 mm, width 600 mm, inner diameter of paper core 76.2 |
| Place of Origin | GUANGDONG,CHINA |
| Applicable industries |
Commonly used in the medical, healthcare, and cosmetic industries |
Machine Details:
|

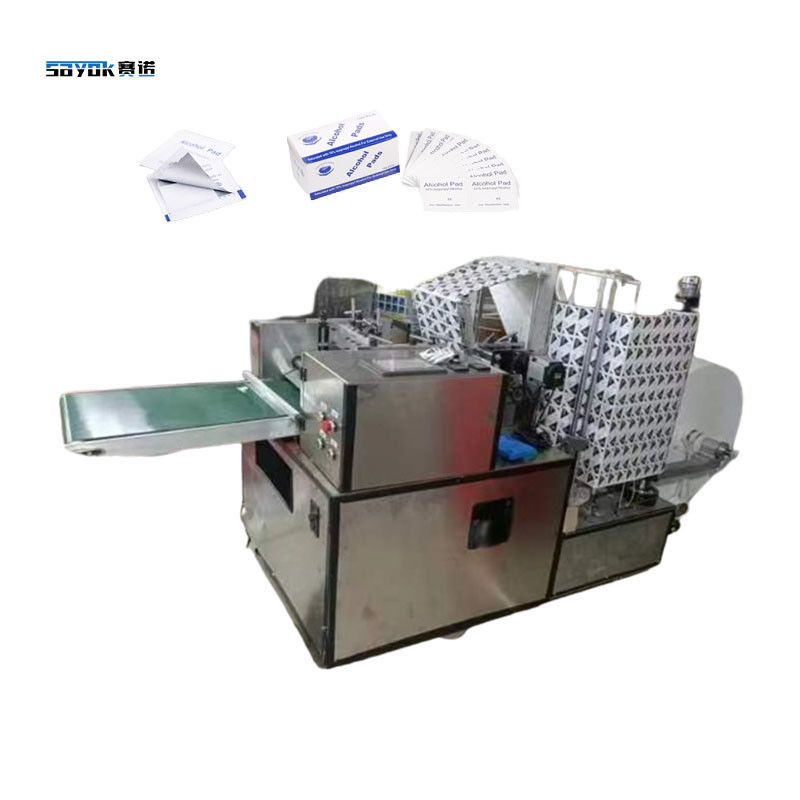

1. Packaging machine appearance
making and packing 2 in 1 machine. reasonable design and stainless steel appearance. Durable and long life in use. |
 |
|
2. Fully automated sealing and cutting Snug structure and reasonable design, small footprint with large functions. 6 lanes, can be with or without slitting, more compatible for the non-woven raw material. Easier to get the raw materials with an more economic price. |
|
|
3. Support two different materials packaging film Can be single roll (top and bottom layer of the same material) can be double roll (top and bottom layer of different materials), convenient for different product packaging options. |
|
|
4.Fullyautmatic |
|
|
5. Liquidaddition |
|
|
6.Good sealing |
|
| 6.Support for custom
We can customize designs according to customers' needs to meet diverse needs. Our technical department can also help you to analyze, design and test your new products.
|
|
