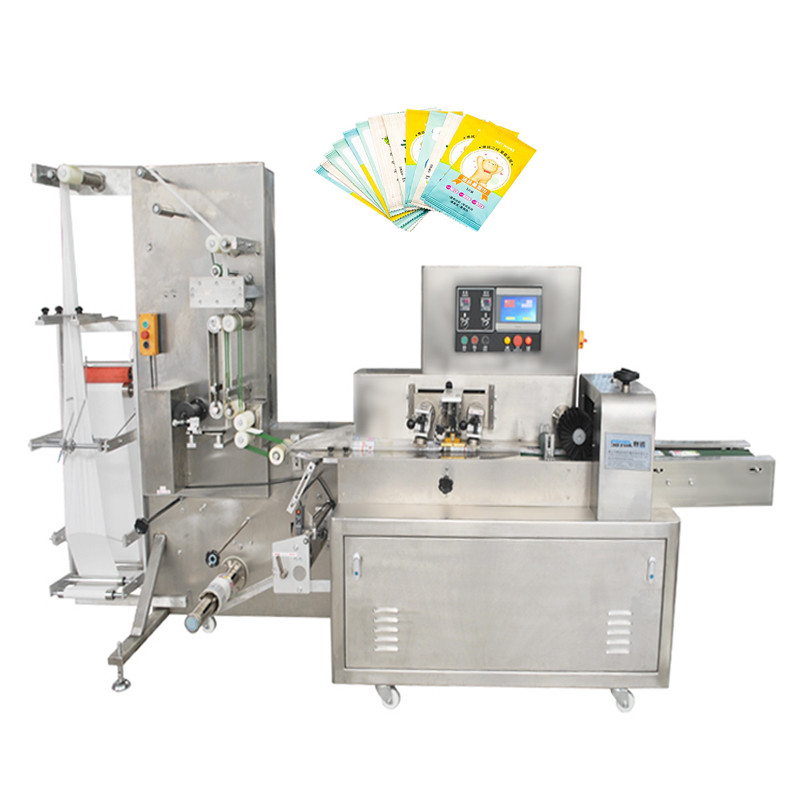

Single Chip High Speed Wet Tissue Machine Toilet Paper Packing Machine

1 set
MOQ
Negotiable
Price
Single Chip High Speed Wet Tissue Machine Toilet Paper Packing Machine
Features Gallery Product Description Chat Now
Features
Specifications
Speed: 30-100 Bags/min
Power: 3KW
Power Requirements: 220V/50HZ
Automatic Grade: Automatic
Function: Slitting, Folding
Driven Type: Mechanical
After-sales Service: Video Technical Support
OEM/ODM: YES
Highlight:

Single Chip Wet Tissue Machine

,

Toilet Paper Wet Tissue Machine

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-1L
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 35-45 working days
Payment Terms: T/T
Supply Ability: 50 set /month
Product Description

Baby Wipes Wet Towel Tissue Manufacturing Packing Production Line 220v

Single-Chip High-Speed Wet Tissue Machine Toilet Paper Packing Machine 220v

Performance introduction:1. Equipment production requirements: the equipment can produce all kinds of Spunlaced non-woven fabrics, hot air cloth, dust-free paper and other products.

2. Working principle of the equipment: conveying → automatic vertical folding → raw material cutting → horizontal folding → packaging → quantitative liquid addition → printing date → sewing → slicing automatic completion.
3. The equipment is suitable for packing wipes in aviation, supermarkets, medical institutions, catering, tourism and other industries.
4. The equipment is equipped with multi-function longitudinal folding mechanism and cam wave type transverse folding mechanism to fold neatly
5. The equipment is equipped with quantitative automatic liquid adding device, the liquid quantity can be controlled freely according to the requirements, and the liquid adding position is accurate



Introduction:

Full auto wet wipe machine is directly slitting the raw material, folding, wetting, cut in size, auto convey the wipe to packing machine. Raw material is equipped with auto splicing unit, and with tension control and web guiding function. The whole process from raw material to final product is in machine, production is sanitary and speed is high. The folding machine and packing machine can automatically connect for production and also can be separated for special size of product, which makes customer use the machine in maximum limit and get the maximum profit.


Production process: coil loading → slitting and folding → conveying → spraying → spunlace non-woven fabric loading (finished product) → automatic synchronous transportation of tailstock → bagging → automatic opening → automatic labeling → bag making → sealing → cutting →Product delivery



Specifications:



Wet wipes unfolded size L*H:100-220×100-240mm
Wet wipes folded size L*H:80-110×30-90mm
Folding method of wet wipes Vertically folded N/W type
Bag size  bag:L*W:130-160*50-100mm
Processing capacity 30-100 bags/min
Packaging film requirements Composite film, aluminized film, polyethylene / polypropylene and other thermal composites
Inner diameter of raw paper core 70-130g/㎡ PE&PET OPP&PE (镀铝膜), Φ≤400mm, width 200-380mm
Total power 220V 50Hz  3 KW
Raw Materials 40~80g/m2 dust-free paper, non-woven fabric, spunlace non-woven fabric
Machine weight about 810 kg
Dimensions

(L)4020×(W)720×(H)1320mm





Machine Details:



1. Wet wipes(tissues) production machine
form raw materials to finishedpackaging process all completedon the machine
Single Chip High Speed Wet Tissue Machine Toilet Paper Packing Machine 0

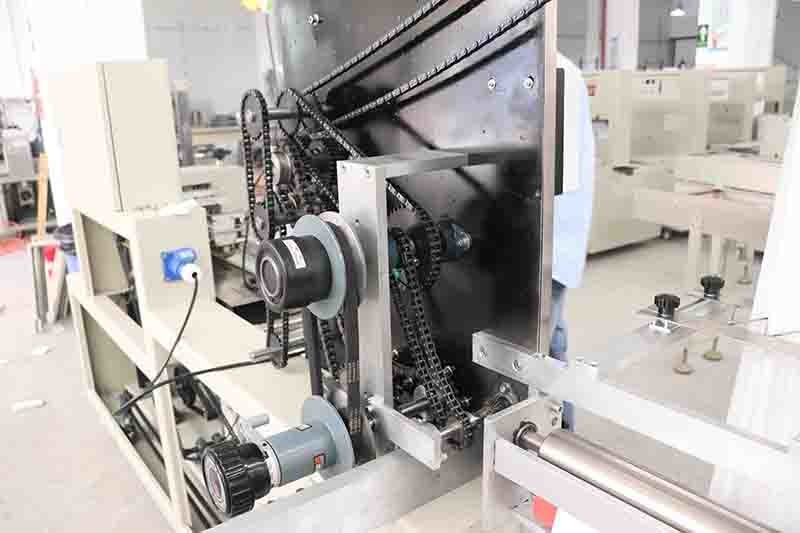

2. Each axis is independently controlled for tension and driven independently Single Chip High Speed Wet Tissue Machine Toilet Paper Packing Machine 1
3. Dual Frequency Conversion Control
Dual frequency converter control,bag length canbe set and cut precisely, saving time and film.
Single Chip High Speed Wet Tissue Machine Toilet Paper Packing Machine 2
4.Automatic pilling system to connect with packing machine. Single Chip High Speed Wet Tissue Machine Toilet Paper Packing Machine 3
5.Imported BrandPhotoelectric Sensorsmport brand photoelectric sensor track color markhigh sensitive.No need to set the lengthof bag,intelligent cutting length. Single Chip High Speed Wet Tissue Machine Toilet Paper Packing Machine 4
6. Three side seal packing type Single Chip High Speed Wet Tissue Machine Toilet Paper Packing Machine 5
