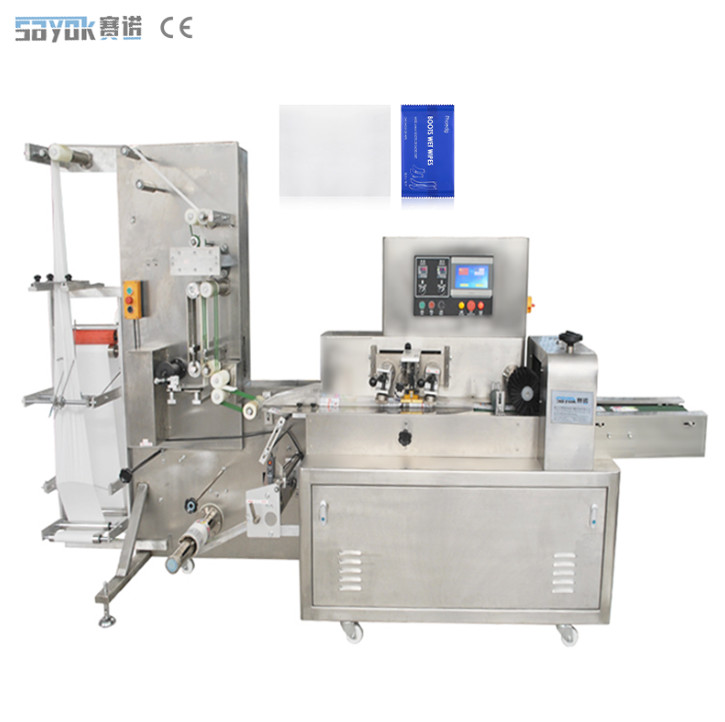

Baby Wet Wipes Packing Machine Wet Towel Tissue Production Line 220v

Baby Wipes Wet Towel Tissue Manufacturing Packing Production Line 220v

Performance introduction:
1. Scientific design, compact structure, convenient operation and maintenance
2. Humidification device for spunlace non-woven fabrics: single spray type and second concentrated spray type
3. Liquid addition system: including stirring device, water adding device, independent water return device, and the amount of water can be adjusted
4. Raw material cutting system: length adjustable
5. Photoelectric detection can automatically stop if there is no cloth
6. Packaging form: mechanical reciprocating horizontal seal, with pneumatic gusset, optional aircraft port device
7. Position adjustment: opening position, labeling position, feeding position, color mark position, which can be changed directly on the touch screen
8. Raw material cutting system: pneumatic toothed knife
9. Labeling system: double labeling, two labels can work at the same time, or can be used alone
10. Coding system: ink wheel coding machine, which can print production date, batch number
11. PLC control system, monitoring system
12. Electrical control system: PLC system, man-machine interface, control circuit, power circuit, temperature control and other auxiliary controls

Sealing Mechanism: The sealing mechanism of the machine should be suitable for wet wipes. Common sealing methods include heat sealing, which uses heat to melt and seal the packaging material, or adhesive sealing, which uses a special adhesive to seal the package.

Product Inspection: To ensure quality control, the machine may incorporate systems for inspecting the wet wipes, such as sensors to detect missing or misaligned wipes, or vision systems to check for proper folding and positioning.

Packaging Material: The machine should be compatible with the specific packaging material used for wet wipes, such as flexible films or laminates that provide moisture barrier properties.

Production process: coil loading → slitting and folding → conveying → spraying → spunlace non-woven fabric loading (finished product) → automatic synchronous transportation of tailstock → bagging → automatic opening → automatic labeling → bag making → sealing → cutting →Product delivery

Specifications:

Machine Details:

1. Stainless steel quality, good in appearance and machine is more durable
2. Each axis is independently controlled for tension and driven independently
3. High-speed roll cutter cutting, 150 cut/min.
4.Automatic pilling system to connect with packing machine.
5. Servo driven and control to packing, easy to operate
6. Three side seal packing type
