1 Pair TPE Glove Automatic Folding Machine Packaging Machinery Energy Saving

1 set
MOQ
EXW US$21000-24000/set
Price
1 Pair TPE Glove Automatic Folding Machine Packaging Machinery Energy Saving
Features Gallery Product Description Request A Quote
Features
Specifications
Sealing Type: Heating Sealing 4 Side Seal
Materials: Disposable TPE Glove
Packaging: Exported Wooden Case
Power Type: Automatic
Automatic Grade: Automatic
Warranty: 1 Year
After-sales Service: Video Technical Support
After Warranty Service: Video Technical Support
Highlight:

TPE Glove Automatic Folding Machine

,

Energy Saving Automatic Folding Machine

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-WA450
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 30 working days
Payment Terms: T/T,
Supply Ability: 100 set /month
Product Description

1 Pair TPE Glove Automatic Folding Machine Packaging Machinery Price Energy Saving

50 Hz 1 Pair TPE Glove Folding Packing Machine Energy Saving Packing Machinery





Facture:



1. Four side seal packing machine. small pack.

2. High quality anti-static folding board customized for TPE gloves.

3. Fault self-diagnosis function, clear fault display.

4. It is covered with stainless steel protective cover, and the parts that mainly contact the cloth are made of stainless steel or rust-proof material.

5. Simple drive system, reliable work, convenient maintenance and so on.

6. All controls are realized by software, which is convenient for function adjustment and upgrade.



Quick Details:

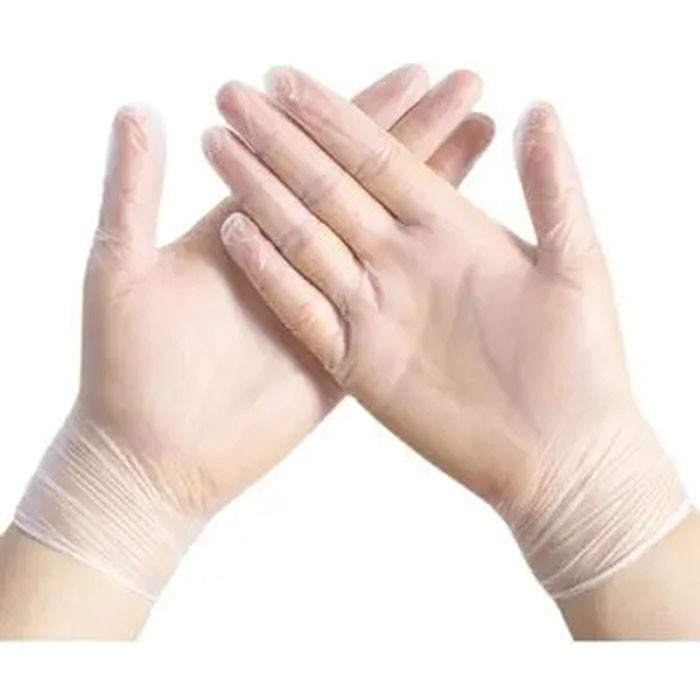

1. Suitable for CPE / TPE / Biodegradable gloves automatic folding and packaging, 1 pair pack.

2. Each folding is designed as requested folded size, one machine for one folded size.

3. No manual intervention, cleaner and more hygienic.

4. Closed by heat sealing, make sure neatly cut.

5. The packaging material is consumable.

6. Packaging machine can be adapted to specific requirements.







Specifications:



Model

SN-WA450

Product

270mm-290mm PE gloves

Glove thickness 0.8-1.5 mil
Packing Speed

30-80 pk/min

Rated air pressure

0.6-0.8mpa

packing type 4 side sealing or 3 side sealing
Power Supply

AC220V(1±10%)50Hz (Single-phase two-wire system)

Air Source

0.4-0.8MPa



Machine size

2750*1760*2180mm



Machine Weght Approx 950kg







Machine Details:

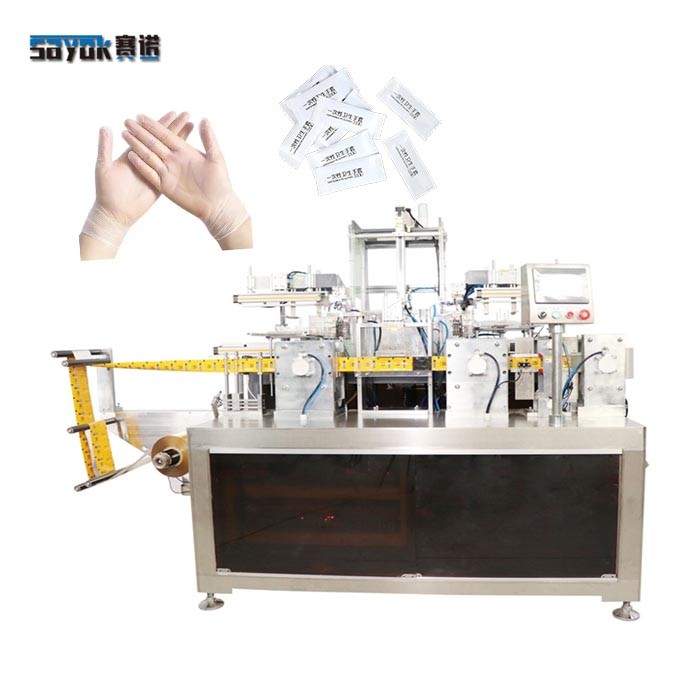

1.  Folding and Packing 2 in 1 machine

It can realize the one-step process of material automatic feeding,  folding, filling,  sealing and cutting. No manual intervention, cleaner and more hygienic. More uniform packaging



1 Pair TPE Glove Automatic Folding Machine Packaging Machinery Energy Saving 0

2. Film roll holder

Resonsonal film roll holder linking to the packing machine, make sure the film rolls can be fully stretching and walks smoothly.

1 Pair TPE Glove Automatic Folding Machine Packaging Machinery Energy Saving 1

3. Material feeding tray



Adopting 2 station design, fix the gloves to the tray according to the glove shape. Manual put piles of the gloves to the tray, then automatic suck gloves to the folding area for folding.

1 Pair TPE Glove Automatic Folding Machine Packaging Machinery Energy Saving 2



4. High quality hardness cutter



Good quality cutters, make sure the neatly cut. Optional zig-zag waving tearing cut or triangular scissors opening as customized

1 Pair TPE Glove Automatic Folding Machine Packaging Machinery Energy Saving 31 Pair TPE Glove Automatic Folding Machine Packaging Machinery Energy Saving 4

5. Automatic filling and sealing





Linking with folding machine. After last folding, the inserting board will insert the folded gloves into the forming bag directly, make sure the gloves will not loose and bad will be closest to manual pack bag.



Stardard sealing type is four side sealing, can be customized as 3 side sealing.

1 Pair TPE Glove Automatic Folding Machine Packaging Machinery Energy Saving 5

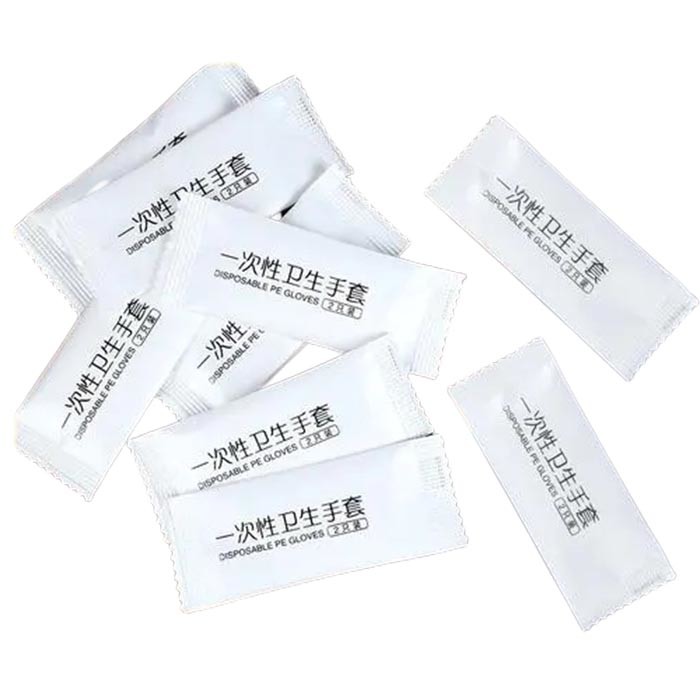

6. 3 or 4 side sealing, small pocket packing, can be one or two pcs per bag. Suitable for CPE / TPE / Biodegradable gloves automatic folding and packaging

1 Pair TPE Glove Automatic Folding Machine Packaging Machinery Energy Saving 61 Pair TPE Glove Automatic Folding Machine Packaging Machinery Energy Saving 7
