Servo Driven 1 Pair CPE Glove Folding Packing Machine 4 Side Plastic Film Pack

1 set
MOQ
EXW US$21000-24000/set
Price
Servo Driven 1 Pair CPE Glove Folding Packing Machine 4 Side Plastic Film Pack
Features Gallery Product Description Request A Quote
Features
Specifications
Packing Film: Composite Heat Plastic Film
Applications: Food,daily Necessity And Chemical
Packaging: Exported Wooden Case
Power Type: Automatic
Automatic Grade: Automatic
Warranty: 1 Year
After-sales Service: Video Technical Support
After Warranty Service: Video Technical Support
Highlight:

CPE Glove Folding Packing Machine

,

Servo Driven Folding Packing Machine

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-WA450
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 30 working days
Payment Terms: T/T,
Supply Ability: 100 set /month
Product Description

Disposable CPE Glove Folding Packing Machine 1 Pair 4 Side Seal Pack





Facture:



1. Full automatic packing line, feeding, folding, sealing and cutting.

2. Compatible for different packing film materials.

3. Fault self-diagnosis function, clear fault display.

4. It is covered with stainless steel protective cover, and the parts that mainly contact the cloth are made of stainless steel or rust-proof material.

5. Simple drive system, reliable work, convenient maintenance and so on.

6. All controls are realized by software, which is convenient for function adjustment and upgrade.



Quick Details:



1. Customized for disposable CPE / TPE / Biodegradable gloves folding and packaging machine.

2. Full automatic design, reduce labor involving, protect workers safety.

3. No manual intervention, cleaner and more hygienic.

4. Closed by heat sealing, make sure neatly cut.

5. The packaging material is consumable.

6. Packaging machine can be adapted to specific requirements.







Specifications:



Model

SN-WA450

Product

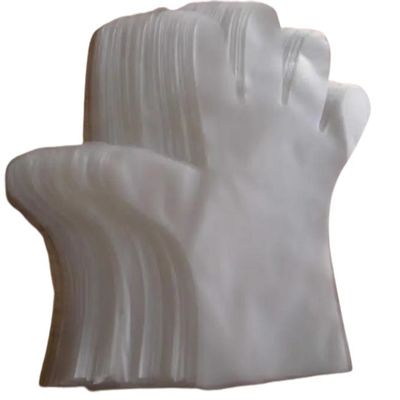

270mm-290mm PE gloves

Glove thickness 0.8-1.5 mil
Packing Speed

30-80 pk/min

Rated air pressure

0.6-0.8mpa

packing type 4 side sealing or 3 side sealing
Power Supply

AC220V(1±10%)50Hz (Single-phase two-wire system)

Air Source

0.4-0.8MPa



Machine size

2750*1760*2180mm



Machine Weght Approx 950kg







Machine Details:

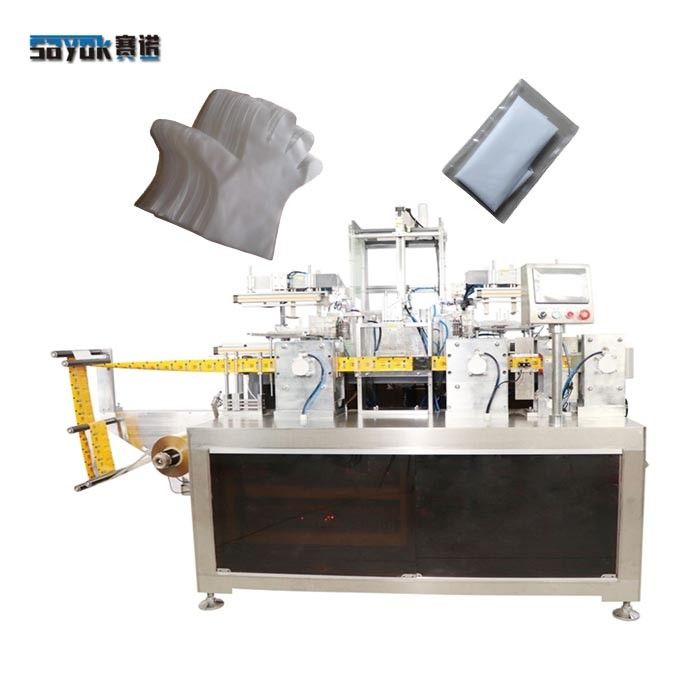

1.  Folding and Packing 2 in 1 machine

It can realize the one-step process of material automatic feeding,  folding, filling,  sealing and cutting. No manual intervention, cleaner and more hygienic. More uniform packaging



Servo Driven 1 Pair CPE Glove Folding Packing Machine 4 Side Plastic Film Pack 0

2. Film roll holder

Resonsonal film roll holder linking to the packing machine, make sure the film rolls can be fully stretching and walks smoothly.

Servo Driven 1 Pair CPE Glove Folding Packing Machine 4 Side Plastic Film Pack 1

3. Material feeding tray



Adopting 2 station design, fix the gloves to the tray according to the glove shape. Manual put piles of the gloves to the tray, then automatic suck gloves to the folding area for folding.

Servo Driven 1 Pair CPE Glove Folding Packing Machine 4 Side Plastic Film Pack 2



4. High quality hardness cutter



Good quality cutters, make sure the neatly cut. Optional zig-zag waving tearing cut or triangular scissors opening as customized

Servo Driven 1 Pair CPE Glove Folding Packing Machine 4 Side Plastic Film Pack 3Servo Driven 1 Pair CPE Glove Folding Packing Machine 4 Side Plastic Film Pack 4

5. Automatic filling and sealing





Linking with folding machine. After last folding, the inserting board will insert the folded gloves into the forming bag directly, make sure the gloves will not loose and bad will be closest to manual pack bag.



Stardard sealing type is four side sealing, can be customized as 3 side sealing.

Servo Driven 1 Pair CPE Glove Folding Packing Machine 4 Side Plastic Film Pack 5

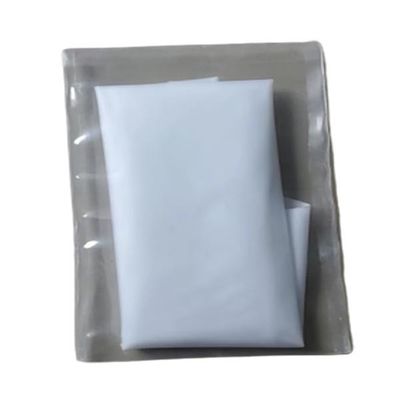

6. 3 or 4 side sealing, small pocket packing, can be one or two pcs per bag.

Servo Driven 1 Pair CPE Glove Folding Packing Machine 4 Side Plastic Film Pack 6Servo Driven 1 Pair CPE Glove Folding Packing Machine 4 Side Plastic Film Pack 7
