120Pcs Wet Tissue Making Machine For Women Automatic High Speed Packing Line

1 set
MOQ
EXW US$45315-50000/set
Price
120Pcs Wet Tissue Making Machine For Women Automatic High Speed Packing Line
Features Gallery Product Description Request A Quote
Features
Specifications
Packing: 30-120PC
Uses: For Feminine Hygiene Wipes
Place Of Origin: Guangdong, China
Automatic Grade: Automatic
Function: Slitting, Folding, Filling, Sealing
Driven Type: Mechanical
After-sales Service: Video Technical Support
After Warranty Service: Video Technical Support
Highlight:

120Pcs Wet Tissue Making Machine

,

Automatic Wet Tissue Making Machine

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-450WL
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 35-45 working days
Payment Terms: T/T
Supply Ability: 50 set /month
Product Description

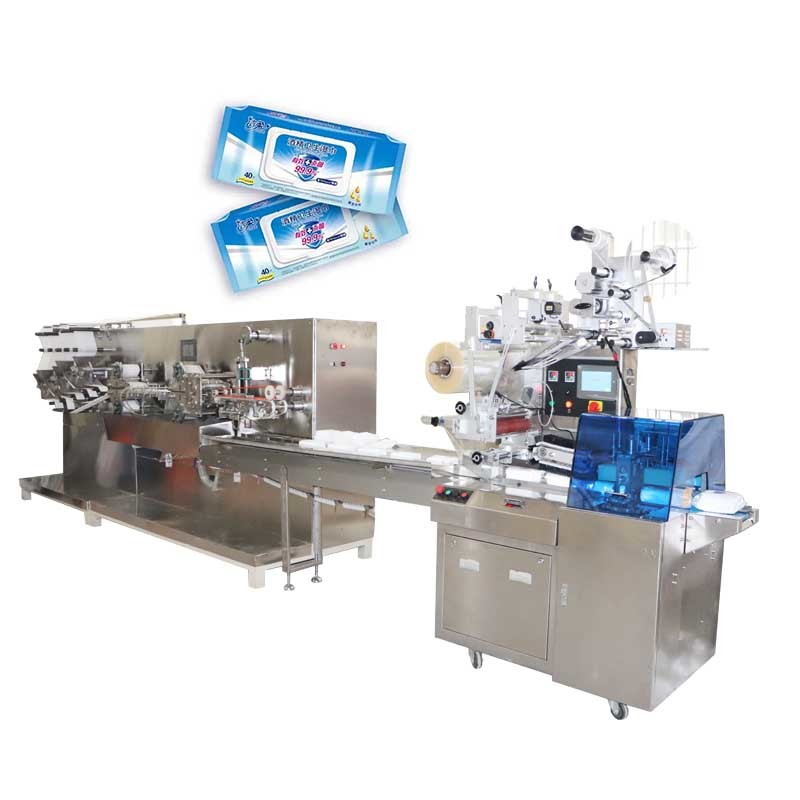

120Pcs Wet Tissue Making Machine For Women/ Automatic High Speed packing line



5 Slitting Lanes Non-woven 120Pcs Wet Tissue Making Machine For Women/ Automatic High Speed packing line



Facture:

1.  Each wipe is filled with liquid quantitatively and evenly wet;
2.  Full online monitoring of non-wovens, labels, film rolls, liquids, weights and packaging;
3.  Selection of unique production materials
4. Fault self-diagnosis function, fault display at a glance.
5.  High-sensitivity photoelectric eye tracking, digital input of the cutting and sealing position, more accurate of the sealing and cutting position.
6.  Punching and labelling positions can be operated on the touch screen, making it easy and fast to do so..



Quick Details:



1. Mixing reservoir: Stainless steel raw liquid mixing tank;

2. Crossover detection: cloth, membrane and standard interfaces are detected separately

3. Liquid level control: Electronic detection automatic control

4. Date printer is optional item;

5. plastic cover is optional item;

6. packing machine is adjustable according to concrete requirements.





Specifications:



Wet wipes unfolded size L*H:100-220×100-240mm
Wet wipes folded size L*H:80-110×30-90mm
Folding method of wet wipes Vertically folded N/W type
Bag size Single bag:L*W:130-160×50-100mm
Production date Equipped with ink wheel coding device (low cost, easy to replace)
Processing capacity 40~80 bags/min in single row
Packaging film requirements 70-130g/㎡ aluminum film packaging paper, Φ≤400mm, width 200-380mm
Inner diameter of raw paper core Φ 76.2mm (=3")
Total power 220V 50Hz 3KW
Drive chain Main drive chain with tensioner as required
Machine weight about 1200 kg
Dimensions L*W*H:4000×1200×1800mm

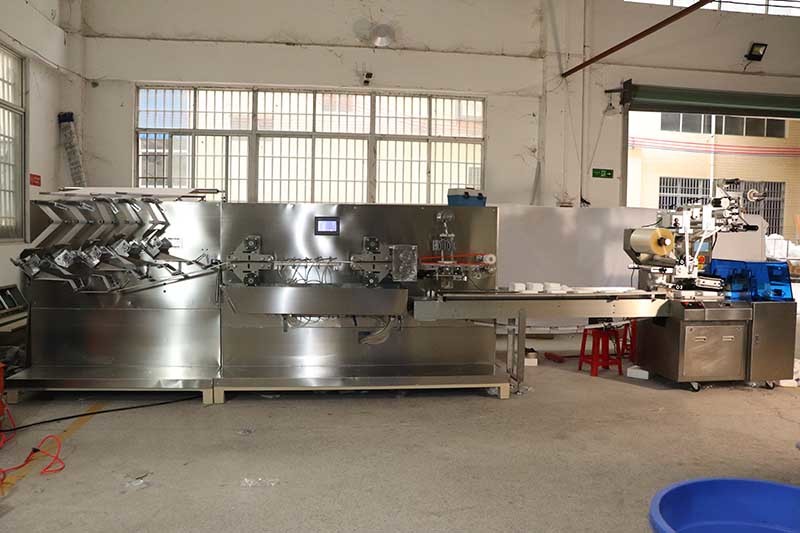

Machine Details:



1. Stainless steel quality, good in appearance and machine is more durable 120Pcs Wet Tissue Making Machine For Women Automatic High Speed Packing Line 0
2. 5 slitting lanes design, fast and stable. 120Pcs Wet Tissue Making Machine For Women Automatic High Speed Packing Line 1
3. Dosing liquid filling container, adjustable to control the wet. 120Pcs Wet Tissue Making Machine For Women Automatic High Speed Packing Line 2

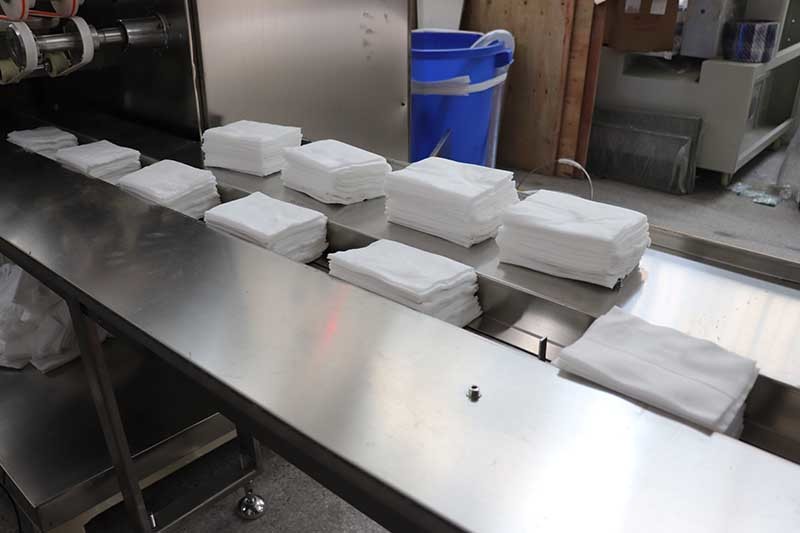

4.Automatic pilling system to connect with packing machine. 120Pcs Wet Tissue Making Machine For Women Automatic High Speed Packing Line 3
5. Brush and sponge dual press to  120Pcs Wet Tissue Making Machine For Women Automatic High Speed Packing Line 4
6. Three side seal packing type 120Pcs Wet Tissue Making Machine For Women Automatic High Speed Packing Line 5
