Automatic Packaging Folding And Sealing Machine For Disposable Gloves

1 set
MOQ
EXW US$9400 -16000/set
Price
Automatic Packaging Folding And Sealing Machine For Disposable Gloves
Features Gallery Product Description Request A Quote
Features
Specifications
Attitude: New
Applicable Industries: Restaurant,food,Hotels
Packing Film: Plastic, Paper
Key Selling Points: High Productivity
Automatic Grade: Automatic
Driven Type: Electric
After-sales Service: Video Technical Support
After Warranty Service: Video Technical Support
Highlight:

Automatic Packaging Folding And Sealing Machine

,

Disposable Gloves Folding And Sealing Machine

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-WA450
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 15 working days
Payment Terms: T/T,
Supply Ability: 50 set /month
Product Description

Automatic packaging folding and sealing machine disposable gloves

Disposable Automatic PE Gloves Folding Bag Packaging Machine Packaging Material Plastic



This machine is a four-side sealing and packaging machine integrating manual feeding, automatic traction, automatic heat sealing and automatic interruption. It is suitable for outer bag packaging of disposable PE gloves.



Facture:



1. The device is controlled by touch screen human machine interface, PLC control.

2. Independent temperature control to control the temperature.

3. The fault self -diagnosis function, the fault is clear.

4. It is covered with stainless steel protective cover, and the parts that mainly contact the cloth are made of stainless steel or rust-proof material.

5. Simple driving system, reliable work, convenient maintenance, etc.

6. All controls are implemented through software, which is very convenient for functional adjustment and upgrade.



Quick Details:



1. Widely use in  daily necessities, cosmetics, food, medical etc many industries.

2. Adjust width of bag forming according to the product height width.

3. With waste collection, make the enviroment neat and clean.

4. Automatic counting is available to facilitate manual entry into the box.

5. The packaging material is consumable.

6. Packaging machine can be adapted to specific requirements.



Production process: outer packaging film roll material on the machine → conveyor belt material placement → material feeding → outer film wrapping → heat sealing → bag forming → feeding → sealing → cutting → output





Specifications:



Model

SN-WA450

Product

270mm-290mm PE gloves

Packing Speed

40-70PCS/min

Rated air pressure

0.6-0.8mpa

Power Supply

AC220V(1±10%)50Hz (Single-phase two-wire system)

Air Source

0.4-0.8MPa

Machine size

2650*1700*1900mm
Feeder 2750*1800*2000mm
Machine Weght Approx 500kg



Degree of automation Automatic
Processing customization Customized processing is available
Material Type
Applicable objects restaurants, daily chemicals





Machine Details:

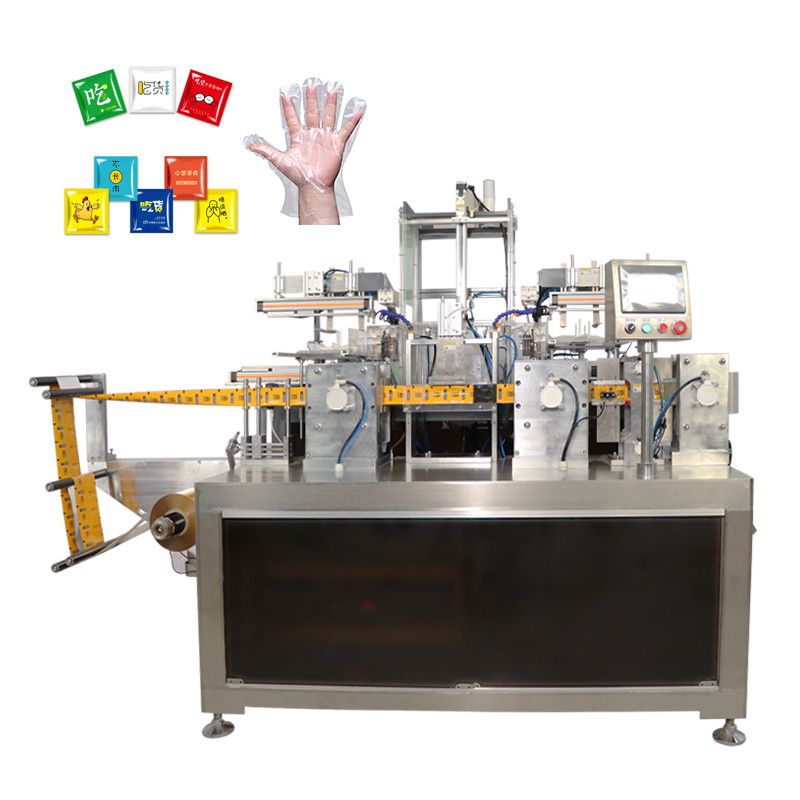

1. Packaging machine appearance

It can realize the one-step process of material release, packaging and sealing and cutting

Automatic Packaging Folding And Sealing Machine For Disposable Gloves 0

2.Linkage film winding

Adopt multi-linked film rolls to coordinate film link, adapt to more rolled film materials. The rolled film is smoother and more effective in preventing the upper rolled film from running off.

Automatic Packaging Folding And Sealing Machine For Disposable Gloves 1

3. Multi-functional customized mechanical devices enjoy quality service

Automatic Packaging Folding And Sealing Machine For Disposable Gloves 2

Automatic Packaging Folding And Sealing Machine For Disposable Gloves 3

4.Fully automatic sealing and cutting

The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation.

Automatic Packaging Folding And Sealing Machine For Disposable Gloves 4

5. Self-locking gimbal

Move at any time as required, press to self-lock and lock at any time

Automatic Packaging Folding And Sealing Machine For Disposable Gloves 5
6. Packing neat and good looking

Automatic Packaging Folding And Sealing Machine For Disposable Gloves 6
