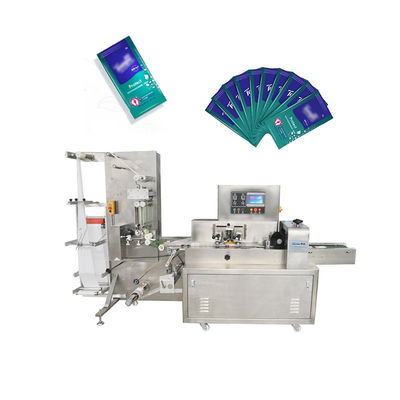

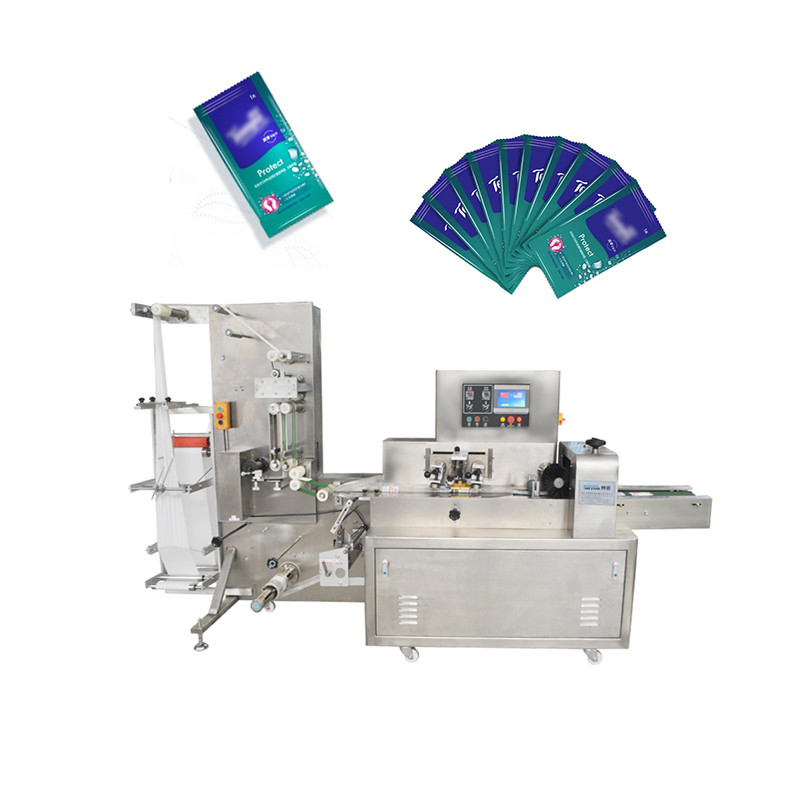

Single / Multi Piece Wet Wipes Packaging Machine Fully Automatic

Fully Automatic Wet wipes Single/multi -piece Packagingmachine

Fully Automatic Wet wipes Single/multi -piece Packaging Equipment Floor cleanWet wipes Machine packing machine

Performance introduction:
1. Scientific design, compact structure, convenient operation and maintenance
2. Humidification device for spunlace non-woven fabrics: single spray type and second concentrated spray type
3. Liquid addition system: including stirring device, water adding device, independent water return device, and the amount of water can be adjusted
4. Raw material cutting system: length adjustable
5. Photoelectric detection can automatically stop if there is no cloth
6. Packaging form: mechanical reciprocating horizontal seal, with pneumatic gusset, optional aircraft port device
7. Position adjustment: opening position, labeling position, feeding position, color mark position, which can be changed directly on the touch screen
8. Raw material cutting system: pneumatic toothed knife
9. Labeling system: double labeling, two labels can work at the same time, or can be used alone
10. Coding system: ink wheel coding machine, which can print production date, batch number
11. PLC control system, monitoring system
12. Electrical control system: PLC system, man-machine interface, control circuit, power circuit, temperature control and other auxiliary controls

Quick Details:

1. Suitable for dry wet tissues packed with folled;

2. Double frequency conversion control, bag length is set and cut, save in film and time

3.Text-based HMI design, convenient and quick parameter setting.

4. Date printer is optional item;

5. plastic cover is optional item;

6. packing machine is adjustable according to concrete requirements.

Production process: coil loading → slitting and folding → conveying → spraying → spunlace non-woven fabric loading (finished product) → automatic synchronous transportation of tailstock → bagging → automatic opening → automatic labeling → bag making → sealing → cutting →Product delivery

Specifications:

Machine Details:

1. Stainless steel quality, good in appearance and machine is more durable
2. Each axis is independently controlled for tension and driven independently
3. High-speed roll cutter cutting, 150 cut/min.
4.Automatic pilling system to connect with packing machine.
5. Servo driven and control to packing, easy to operate
6. Three side seal packing type
