Disposable Automatic PE Gloves Folding Bag Packaging Machine Packaging Material Plastic

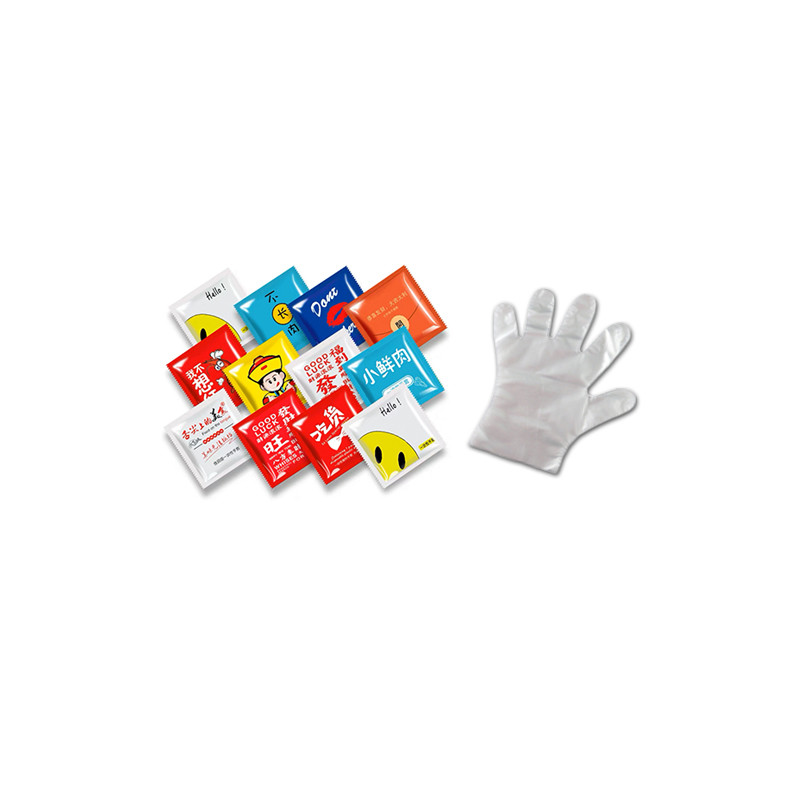

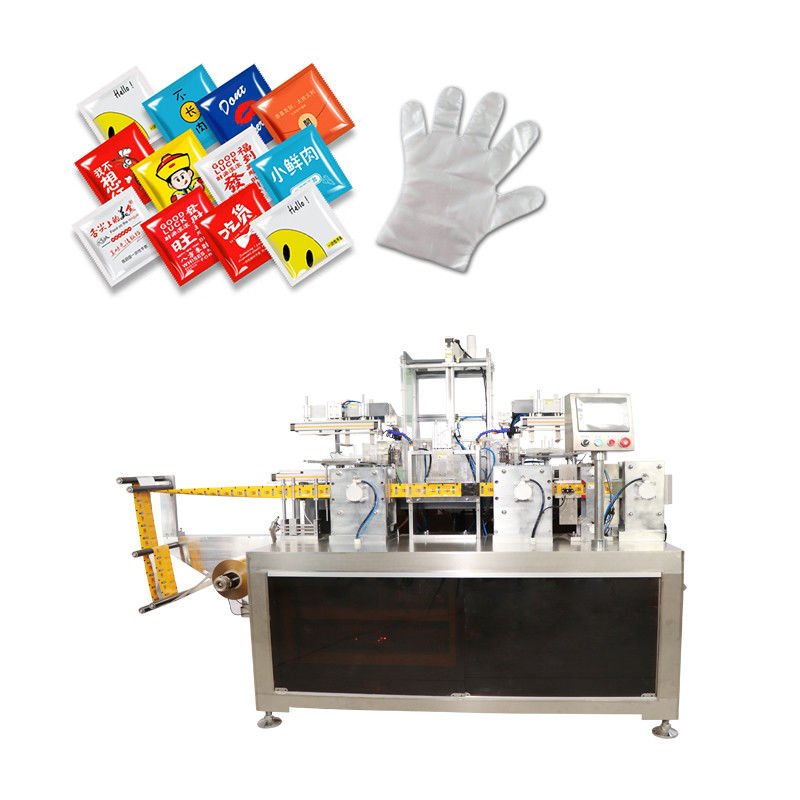

This machine is a four-side sealing and packaging machine integrating manual feeding, automatic traction, automatic heat sealing and automatic interruption. It is suitable for outer bag packaging of disposable PE gloves.
Facture:
1. The equipment adopts touch screen man-machine interface and PLC control.
2. Independent temperature control to control the temperature.
3. Fault self-diagnosis function, clear fault display.
4. It is covered with stainless steel protective cover, and the parts that mainly contact the cloth are made of stainless steel or rust-proof material.
5. Simple drive system, reliable work, convenient maintenance and so on.
6. All controls are realized by software, which is convenient for function adjustment and upgrade.
Quick Details:
1. Widely use in daily necessities, cosmetics, food, medical etc many industries.
2. Adjust width of bag forming according to the product height width.
3. With waste collection, make the enviroment neat and clean.
4. Automatic counting is available to facilitate manual entry into the box.
5. The packaging material is consumable.
6. Packaging machine can be adapted to specific requirements.
Production process: outer packaging film roll material on the machine → conveyor belt material placement → material feeding → outer film wrapping → heat sealing → bag forming → feeding → sealing → cutting → output
Specifications:
| Model |
SN-WA450 |
|
Product |
270mm-290mm PE gloves |
| Packing Speed |
40-70PCS/min |
|
Rated air pressure |
0.6-0.8mpa |
| Power Supply |
AC220V(1±10%)50Hz (Single-phase two-wire system) |
|
Air Source |
0.4-0.8MPa |
|
Machine size |
2650*1700*1900mm |
| Feeder | 2750*1800*2000mm |
| Machine Weght | Approx 500kg |
| Degree of automation | Automatic |
| Processing customization | Customized processing is available |
| Material Type | |
| Applicable objects | restaurants, daily chemicals |
Machine Details:
|
1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting |
 |
|
2.Linkage film winding Adopt multi-linked film rolls to coordinate film link, adapt to more rolled film materials. The rolled film is smoother and more effective in preventing the upper rolled film from running off. |
|
|
3. Multi-functional customized mechanical devices enjoy quality service |
|
|
4.Fully automatic sealing and cutting The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation. |
|
|
5. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
|
| 6. Packing neat and good looking |
|
