Automatic Easy Setting Packing of 4 Side Seal Packaging Machine disposable wipe packing mechine
Facture:
1. The color touch screen operation interface is simple and easy to operate; the parameter setting is convenient and quick.
2. Using the scientific three-axis servo drive system, the bag length can be set and cut immediately, in one step, saving time and film;
3. The PLC programmable controller intelligently controls the operation of the whole machine, which has the advantages of precise film feeding, stable transmission of materials, and precise cutting.
4. Independent guide column mold base, mobile synchronous heat sealing system, the temperature of the sealing surface is more uniform and stable, the edge sealing is tight, and it is durable.
5. Packaging materials of different thicknesses and materials have wider adaptability and versatility.
6. All controls are realized by software, which is convenient for function adjustment and technical upgrade, and never falls behind.
7. Automatically sense the length of the material, there is automatic product packaging, no product downtime waiting, no need to adjust the bag length.
Quick Details:

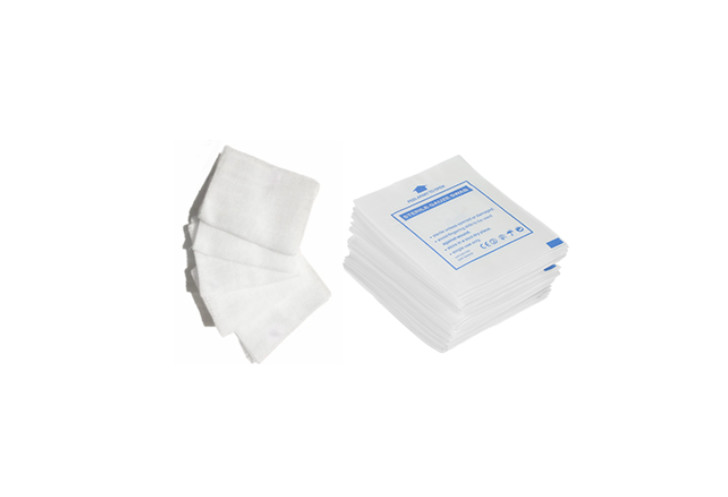

1. Widely use in daily necessities, cosmetics, food, medical etc many industries.
2. Adjust width of bag forming according to the product height width.
3. With waste collection, make the enviroment neat and clean.
4. Automatic counting is available to facilitate manual entry into the box.
5. The packaging material is consumable.
6. Packaging machine can be adapted to specific requirements.
conventional process
Product input → bagging → bag forming → sealing → cutting → output
Specifications:
| Model |
SN-150FK |
| Packing film | composite |
| Packing Speed |
40-100 bags/min |
| Packing Size |
L*W 65-330mm*30-110mm |
| Power Supply | 220V 50/60Hz |
| Power | 2.5KW |
| Machine size | 4000x720x1600mm |
| Feeder | 4100*820*1700mm |
| Machine Weght | Approx 600kg |
|
Air consumption |
≥30m3/h (self-provided), pressure: 0.6-0.8Mpa |
| Degree of automation | Automatic |
| Processing customization | Customized processing is available |
| Material Type | Solid |
| Applicable objects | Gifts, crafts, food, clothing, toys, restaurants, daily chemicals, pharmaceuticals, hardware, machinery |
Machine Details:
|

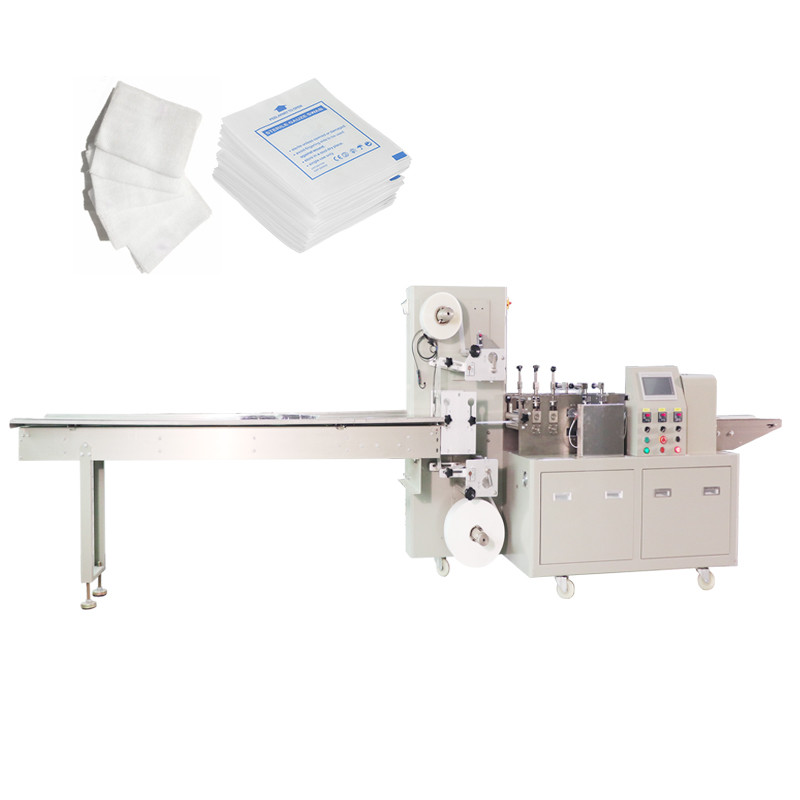

1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting |
 |
|
2.Linkage film winding Adopt multi-linked film rolls to coordinate film link, adapt to more rolled film materials. The rolled film is smoother and more effective in preventing the upper rolled film from running off. |
|
|
3. Conveyor device
Stainless steel operating platform cassette positioning conveyor belt device |
|
|
4.Fully automatic sealing and cutting The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation. |
|
|
5. Self-locking gimbal Move at any time as required, press to self-lock and lock at any time |
|
| 6. Packing neat and good looking |
|
