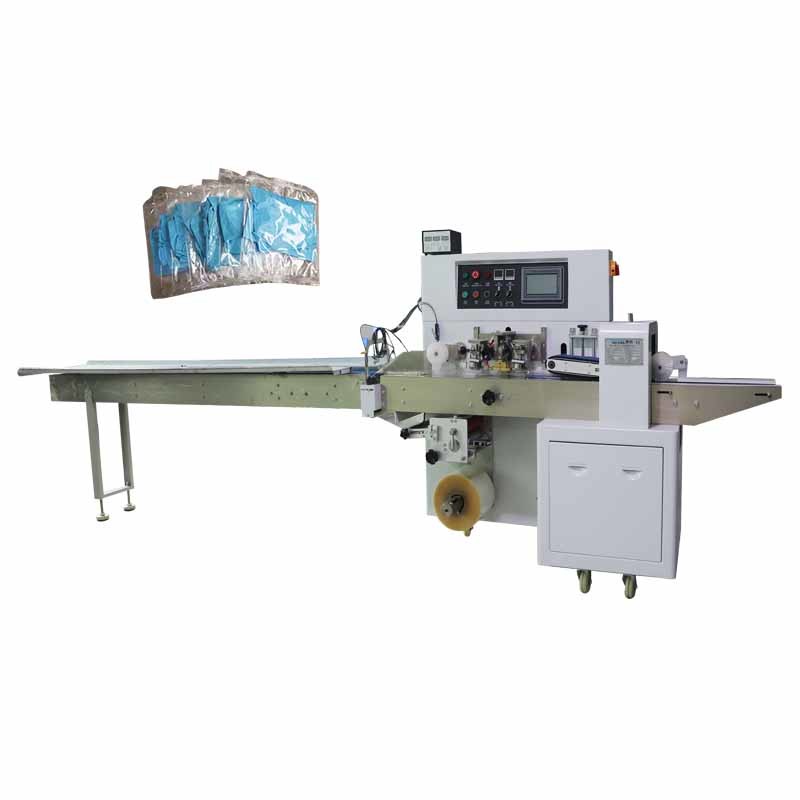

2.8KW Glove Packing Machine 50Hz Examination Glove Pouch Packing Machine

1 set
MOQ
EXW US$8600-10156/set
Price
2.8KW Glove Packing Machine 50Hz Examination Glove Pouch Packing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Controller: 3 Servo Motors
Machine Size: (L)4020×(W)720×(H)1460mm
Place Of Origin: Guangdong, China
Automatic Grade: Automatic
Function: Packing, Sealing
Driven Type: Mechanical
After-sales Service: Video Technical Support
After Warranty Service: Video Technical Support
High Light:

2.8KW Glove Packing Machine

,

Glove Packing Machine 50Hz

,

Glove Pouch Packing Machine

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-350XS
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 100 set /month
Product Description

Medical Standard Glove Packing Machine Disposable Examination Glove Pouch Pack​ ​​





Facture:



1, Adopting Schneider big brand servo motors, more stable in use.
2. Visible HMI operating screen, convenient and easy to operate.
3. Fault self-diagnosis function, easy to know the fault and settle accordingly.
4. High-sensitivity sensor for product position setting, more intelligent and accurate.
5. Independent PID control of temperature, better suited to various packaging materials.
6. Positioning stop function, no sticky knife, no waste of wrapping film.





Quick Details:



1. Brush and sponge dual exhaused device, better in air escaping;

2. High quality sensor for product, more accurate in position stop;

3. Reasonable machinery design and transmission, meet medical industrial standard;

4. Date printer is optional item;

5. Optional Teflon cutter according to packing film quality;

6. 2.3m standard conveyor length, can be customized according to buyer requirements.





Specifications:





Model SN-350XS
Film Width Max. 350mm
Bag Length 65-190mm/100-400mm
Bag Width 50-160mm
Product height Max. 80mm
Film Diameter Max. 320mm
Packing Speed 60-100bag/min
Power 220V,50/60Hz,2.8KW
Machine Size (L)4020×(W)720×(H)1460mm
Machine Wt 610Kg
Remark Add exhausted device





Machine Details:



1. Special design dedicated for examination glove packing 2.8KW Glove Packing Machine 50Hz Examination Glove Pouch Packing Machine 0
2. HMI design, easy to operate and maintain. 2.8KW Glove Packing Machine 50Hz Examination Glove Pouch Packing Machine 1
3. High-sensitivity photoelectric eye to sense product to prevent from empty bag. 2.8KW Glove Packing Machine 50Hz Examination Glove Pouch Packing Machine 2
4. Enough space for optional date printer installing, fit for more clients requirements. 2.8KW Glove Packing Machine 50Hz Examination Glove Pouch Packing Machine 3
5. Brush and sponge dual press to make sure escape air cleaner 2.8KW Glove Packing Machine 50Hz Examination Glove Pouch Packing Machine 4
6. With good air out effect, meet medical industry standard 2.8KW Glove Packing Machine 50Hz Examination Glove Pouch Packing Machine 5
