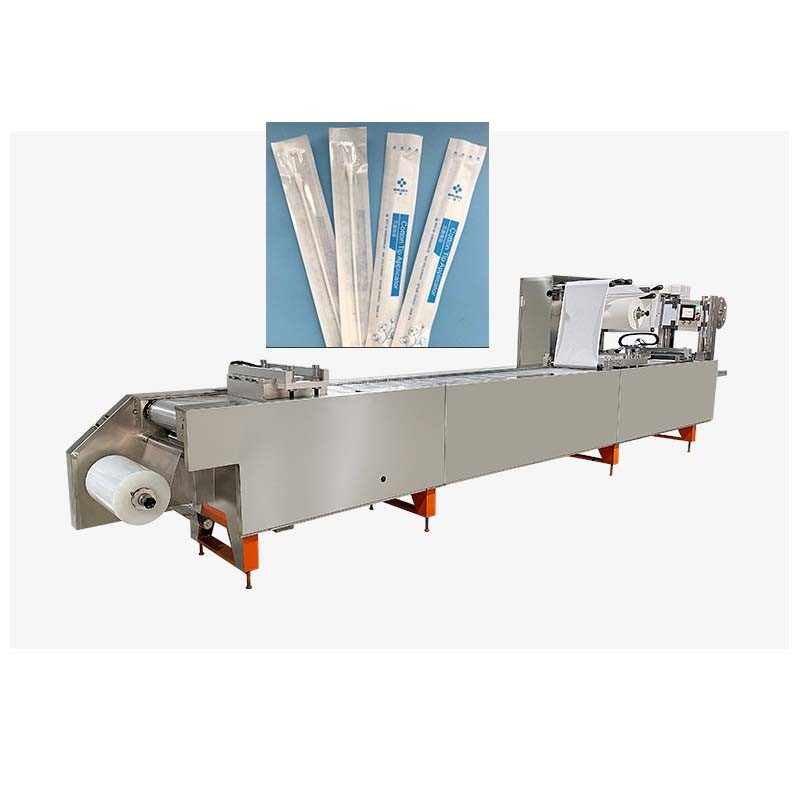

Stretch Film Wrapping Machine Pharyngeal Swabs Packing Machine Multi Lanes
Machine Stucture:
Stretch film packaging machine is the evolution of the vacuum packaging machine, the first mostly used for food packaging, with the advantages of easy preservation. With the development of society, the requirements for vacuum machines and stretch film are getting higher and higher, stretch film is starting to be used in more and more industries, so stretch film machines are also on fire. Stretch film machine is suitable for packaging of different types of products, each link can be adjusted and set on the touch screen according to the needs of the packaging process, it applies back pressure to the wrapped material, thus protecting the wrapped material,
Stretch film packaging machine major group of Stretching & Forming and Heating & Wrapping 2 parts, all others is built around these two parts, complementing each other.
Quick Details:
1. operation is only the filling material area to be completed manually, the other fully automated production. Then improves work efficiency and save labor cost.;
2. A very user-friendly multi-purpose machine.
3. Easy and convenient operation when changing molds, replacing matching molds to change product specifications
4. Waste recycling system, solving the dirty, messy and poor operating environment.
5. Can choose printed color film or blank film for packaging, reduce costs and improve product class.
6. Can be equipped with automatic coding or coding system according to the client's packaging requirements.
Specifications:
|
|
Machine Details:
| 1. Film Stretching The lower film is first mounted on the reel and driven to the forming area by the running of the chain. |
 |
| 2. Stretching and Forming When the lower film runs below the forming plate, the lower film is heated by the heating plate and then the film is stretch to form the shape of the mold to prepare for next material filling. |
|
| 3. Material Filling Workers place the products into the lower film cavity of the stretch molding manually and then run by the chain to the next link. |
|
| 4.Upper Film Covering The upper film will cover the lower film cavity after placing the material, thus forming a form of packaging by wrapping the product with the upper and lower films. |
|
| 5. Vacuum sealing Heat sealing and vacuuming of the product |
|
| 6. Printing date Pring date as client's requirements |
|
| 7. Product Segmentation The cutter will cut the product horizontally and then longitudinally,then the finished product is complete |
|
