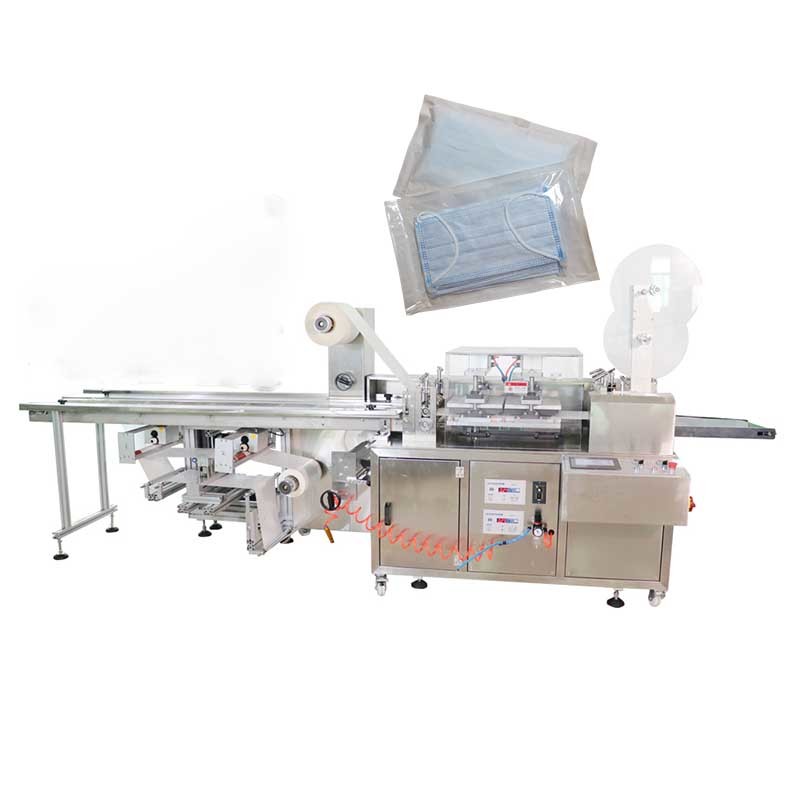

Stainless Steel 4 Side Seal Packing Machine Flat Mask Packaging Machine
Feature:
1. Movable synchronous heat sealing system, temperature of sealing side is more even and stable, sealing edge is tight and durable!
2. Wide adaptability of packing film;
3. Universal all kinds of medical bag making
4. Special heat sealing mold with precision template, CNC processing;
5. Sealing sterilization bag shape once processed and formed;
6. The sealing frame is well sealed and the peeling degree can easily reach the medical industry standard.
Quick Details:
1. Equipment is easy to move, positioning lock mechanical structure.
2. Wires, cables and signal lines meet 3C requirements.
3. Automatic temperature control and adjustment so that can sealing even without leaking issue.
4. Optional edge correction mechanism to make both sides even.
5. Optional UDI printed code device.
6. Manual bag filling → unwinding → hauling out → hot pressing → cutting → finished product conveying
Specifications:
| Model | SN-350FK |
| Bag size | L260 mm×W140mm for ref. Need to confirm before placing orders |
| packing speed | 40-100 bag/min |
| Packing material | Laminated paper + adhesive coated paper, adhesive coated paper + laminated transparent film,Φ≤350mm |
| Air Consumption | ≥30m3/h(self prepare),Pressure:0.6-0.8Mpa |
| Voltage | 220v 50Hz/60HZ 5.5KW (Motor 2.2KW Heating 3.3KW) |
| Machine Size | (L×W×H) 4000×1500×1600mm |
| Machine Weight | 800 kg |
Machine Details:
