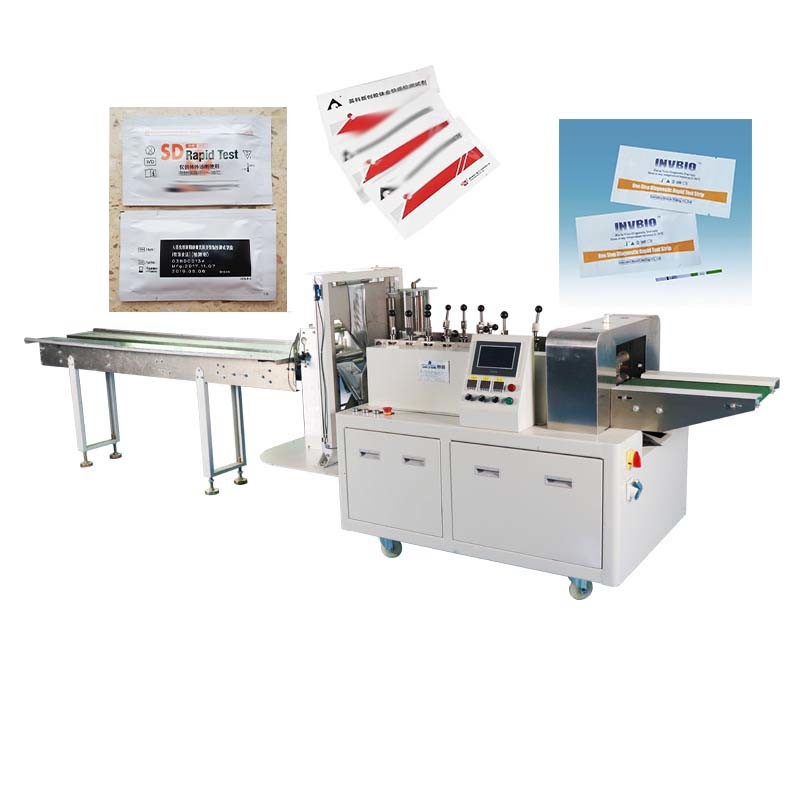

IVD Rapid Test Stripe Packing Machine 4 Side Sealing Cutting Machine
Feature:
1, Automatic packing machinery, reduce labor cost
2, Coil film roll design, automatic bag forming.
3, high speed and productivity, output increase at least 60% than manual pack.
4, Optional deflection system, more precise.
5, Set sealing temperature according to film rolls.
6. Process: manual feeding - product transmitting → bagging → bag forming → sealing → cutting → output
Quick Details:
1, Precise design and tight transmission
2, Adopt high quality servo motors, make the machine works more smoothly.
3, Good sealing, reducing air entry and preventing the growth of bacteria
4, Machine fits for the ones with unique film quality with good heat sealability.
5, Adjustable temperature system, fits for more film quality.
6. Suitable for the food / medical / pharmaceutical / chemical / cosmetics industry etc.
Specifications:
| Model | SN-150FK |
| Bag size | W ≤180mm |
| Bag speed | 40-100 bags/min |
| Packing material |
paper aluminum plastic, pure aluminum, aluminized, pearl film, coated paper,Kraft paper ,paper plastic filmetc., Φ≤350mm |
| Air consumption | ≥30m3/h (self-provided), pressure: 0.6-0.8Mpa |
| Power voltage | 220v 50Hz/60HZ 5.5KW |
| Machine size | (L×W×H) 4000×1300×1600mm |
| Machine weight | 600 kg |
Machine Details:
