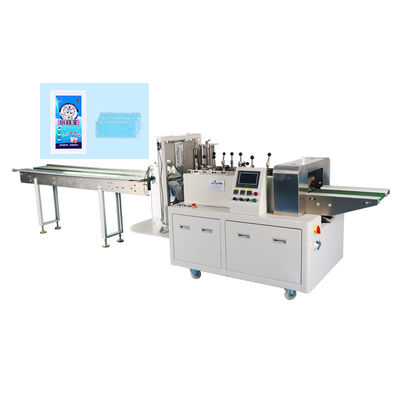

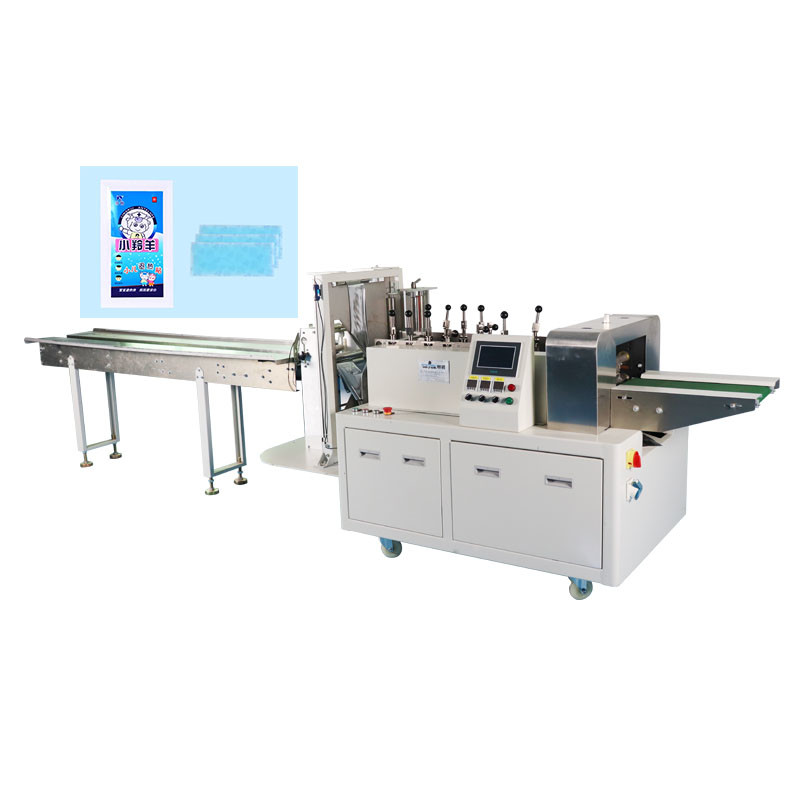

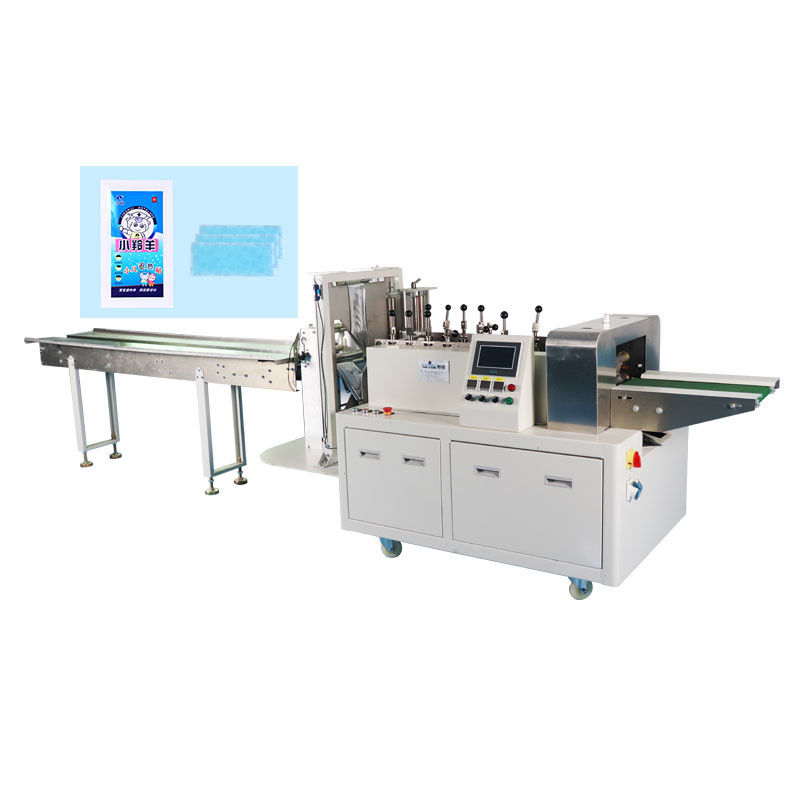

Aluminum Coated Film 4 Side Seal Packing Machine Patch Packing Machine
Features
Single roll film design, pressure wheel type heating principle with independent temperature control system, satisfy clients' in need of different film for different items
This type of four side sealing packing machine is suitable for pharmaceutical, daily necessities, food, cosmetics and other industries, which with single material film design.
Quick Details:
1, Big brand PLC control make all settings easily.
2, Servo driven, automatic sense product and bag length.
3, Fault detection and alerting, easy to mantain.
4, Color mark tracking function, make sure the bag forming cutting precise.
5, Separate temperature control system.
6, Three servo motors design, more stable in use.
Specifications:
Model | SN-150FK |
Bag size | W ≤180mm |
Bag speed | 40-100 bags/min |
Packing material |
paper aluminum plastic, pure aluminum, aluminized, pearl film, coated paper,Kraft paper ,paper plastic filmetc., Φ≤350mm |
Air consumption | ≥30m3/h (self-provided), pressure: 0.6-0.8Mpa |
Power voltage | 220v 50Hz/60HZ 5.5KW |
Machine size | (L×W×H) 4000×1300×1600mm |
Machine weight | 600kg |
Machine Details:
