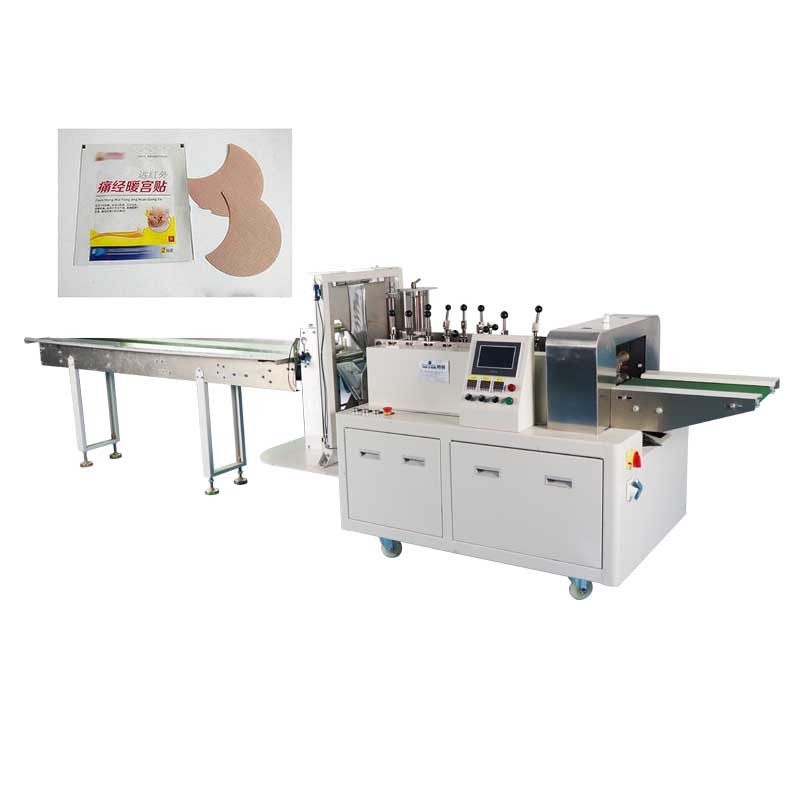

Warming Plaster 4 Side Sealing Packing Machine Plastic Bag Sealing Machine
General Information
Sayok is a professional four side packing machine manufacturer in china with over 10 year experiences, always focus on four side packing machine R&D, upgrade to satisfy different clients requirements in variety areas.
This type of four side sealing packing machine is suitable for pharmaceutical, daily necessities, food, cosmetics and other industries, which with single material film design.
Quick Details:
1, High quality PLC control, easy to adjust data changing
2, Flexible bag lenth cutting, three servo driven.
3, Fault self-diagnosis function, clear fault display.
4, With sensitive color mark chasing, more accurate in bag forming and cutting.
5, Variety of packaging materials choice.
6,Stop the machine at the selected position, will not stick to the seal and will not waste packaging film.
7,Simple drive system, reliable work, easy maintenance and other advantages.
Specifications:
Model | SN-150FK |
Bag size | W ≤180mm |
Bag speed | 40-100 bags/min |
Packing material |
paper aluminum plastic, pure aluminum, aluminized, pearl film, coated paper,Kraft paper ,paper plastic filmetc., Φ≤350mm |
Air consumption | ≥30m3/h (self-provided), pressure: 0.6-0.8Mpa |
Power voltage | 220v 50Hz/60HZ 5.5KW |
Machine size | (L×W×H) 4000×1300×1600mm |
Machine weight | 600 kg |
