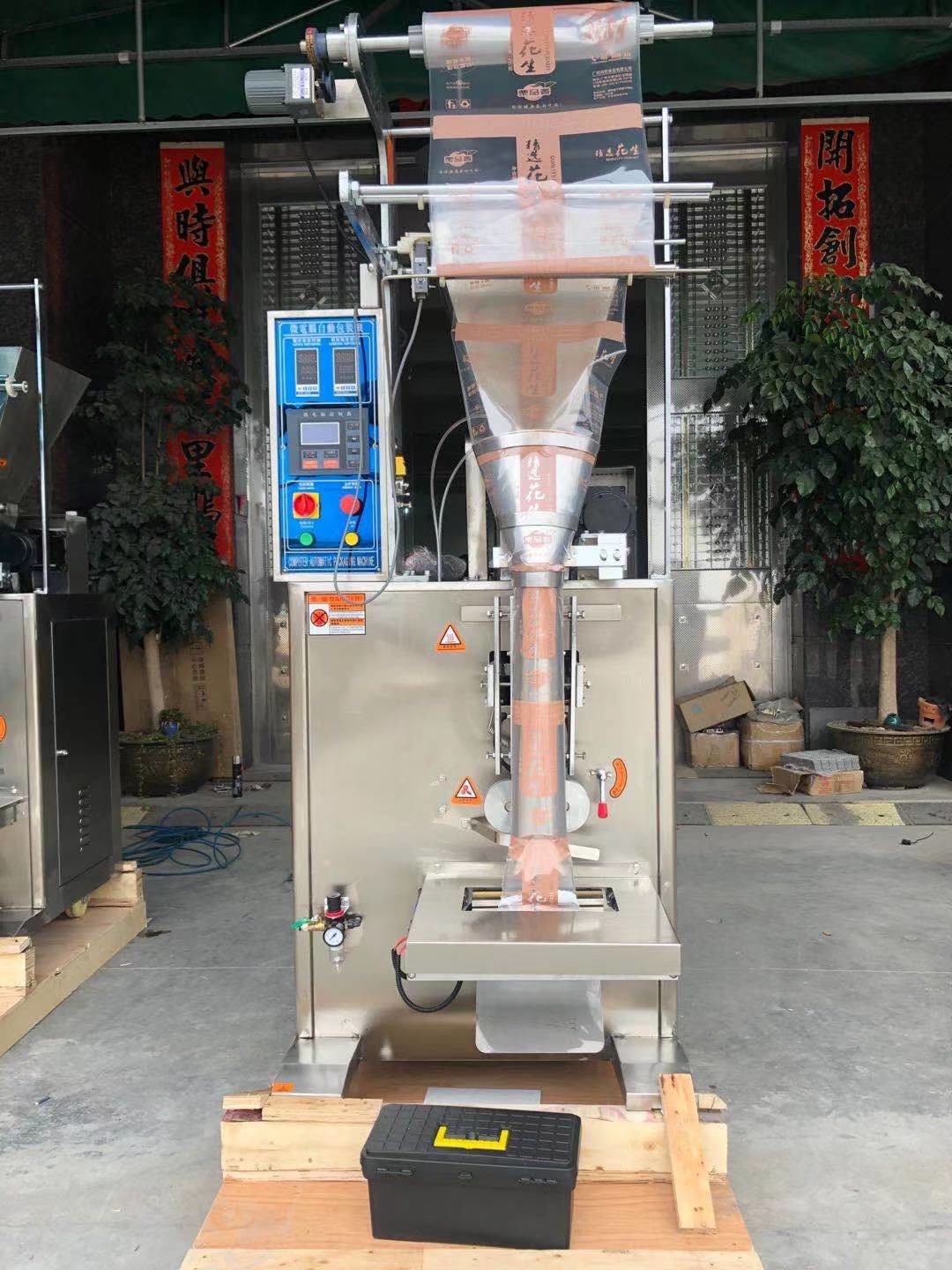

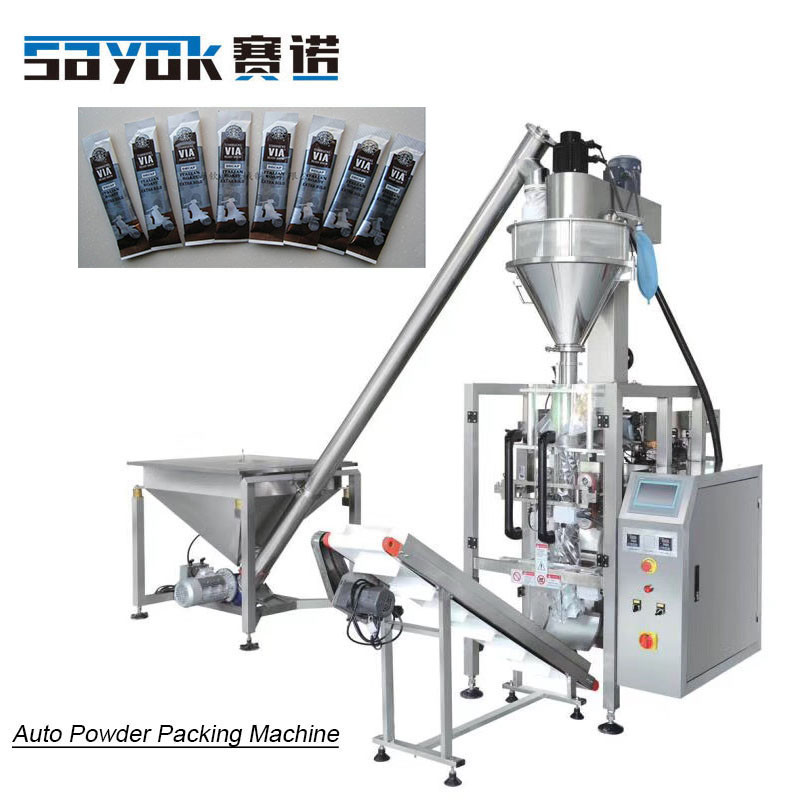

Multi Functional Small Vertical Filling Packaging Machine Seasoning Powder Coffee Powder Sticks Sachet Bag Pack
Feature:
High precision structure for simple and easy operation and repair.
PLC touch screen ,step motor control, easy and accurate to set the bag length.
It’s owns simple circuitry and outstanding function.
The machine completes the whole procedure of Filling,measuring,bag-making,sealing,printing.
Scope of application:
The powder packaging machine is suitable for the measurement and packaging of ultra-fine powder materials, integrating measurement, bag making, packaging, sealing, printing, and counting.
The granule packaging machine is suitable for bulk granules, blocks, short strips and spherical materials such as puffing, shrimp strips, rice, melon seeds, seeds, and peanuts.
The liquid packaging machine is suitable for various liquid packaging of ice packs, popsicles, bagged beverages, and traditional Chinese medicine liquids.
The chain bucket packaging machine is suitable for bulk materials that are not easy to be automatically measured: river noodles, noodles, bean sprouts, live fish fry, food, daily necessities, plastic products, hardware accessories, etc.
Technical parameters :
| Model | SN-320 | SN-380 |
| Max.Film width | Max.320mm | Max.380mm |
| Bag length | 50-200mm | 60-280mm |
| Bag width | 50-150mm | 60-180mm |
| Measuring range | 30-500ml(depends on product) | 50-800ml(depends on product) |
| Outer diameter of roll film | 320mm | |
| packing material | OPP/CPP,OPP/PE,PET/PE | |
| Packing speed | 35-65bags/min | 15-40basg/min |
| Machine size | (L)970*(W)680*(H)1950MM | (L)1000*(W)800*(H)2150MM |
| Machine weight | 300kg | 380kg |
| Power voltage | 220V,50/60HZ,2.2KW | 220V,50/60HZ,2.5KW |

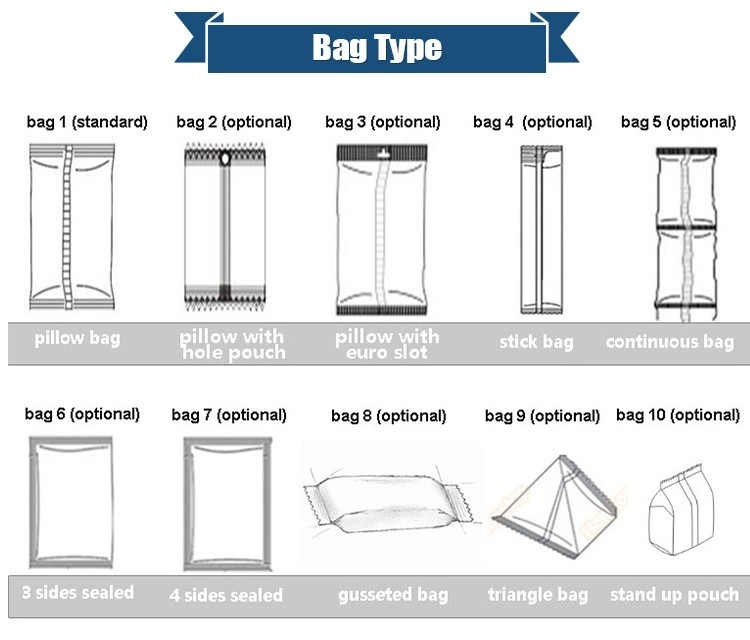

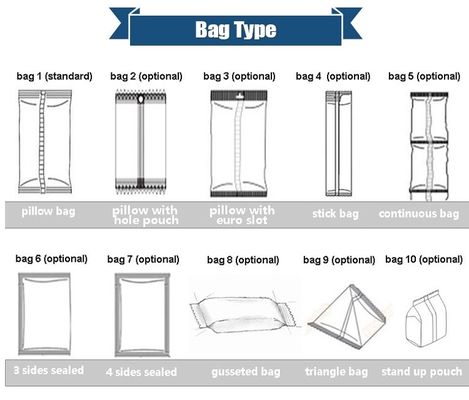

| Bag type | 3 side sealing; Four-side sealing | |
