2.5KW Sachet Filling Packing Machine Automatic Measurement Distributing

1 set
MOQ
EXW US$4200 -5800/set
Price
2.5KW Sachet Filling Packing Machine Automatic Measurement Distributing
Features Gallery Product Description Request A Quote
Features
Specifications
Attitude: Intact
Applicable Industries: Food, Hardware
Film Material: Plastic, Foil, Filter Paper, Non-woven Etc
Main Function: Weighing Forming Filling Sealing
Key Selling Points: Easy To Operate
Driven Type: Mechanical
After-sales Service: Video Technical Support
After Warranty Service: Video Technical Support
High Light:

2.5KW Filling Packing Machine

,

Sachet Filling Packing Machine

,

Sachet Filling Machine​

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-320A
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 50 set /month
Product Description

Automatic-Measurement-Distributing Packer Intelligent Particle Sachet Filling Machine​



Facture:



1. The part which can contactmaterial is made of stainless steel to make thequality reliable
2. PLC touch scren ,easy and accurate to set the bag length.

3. Fault self-diagnostic function with fault indication at a glance
4. packing volume and packing speed can be adjusted, high packing accuracy

5. Intelligent control, easy to turn off and stop, easy to operatee

6. Can choose to install date printer or hot pressing batch number device.

7. Heat sealing dual temperature control, intelligent temperature control, good heat balance, ensuring sealing quality, suitable for a variety of packaging materials.



Quick Details:



1. Widely use in  daily necessities, cosmetics, food, medical etc many industries.

2. Adjust width of bag forming according to the product height width.

3. With waste collection, make the enviroment neat and clean.

4. Automatic counting is available to facilitate manual entry into the box.

5. The packaging material is consumable.

6. Packaging machine can be adapted to specific requirements.





Specifications:



Model SN-320A
Packing film PP, PE, CPP,Laminated film
Packing Speed 30-60pack/min
Packing Size

L*W 50-200mm*50-150mm

Power Supply 220/380V 50/60Hz
Power 2.5KW
Machine size 780*650*1800 mm
Feeder 780* 650 * 1600 mm
Machine Weght Approx 150kg



Degree of automation Automatic
Processing customization Customized processing is available
Material Type Particles
Applicable objects Grain, all kinds of pellets





Machine Details:

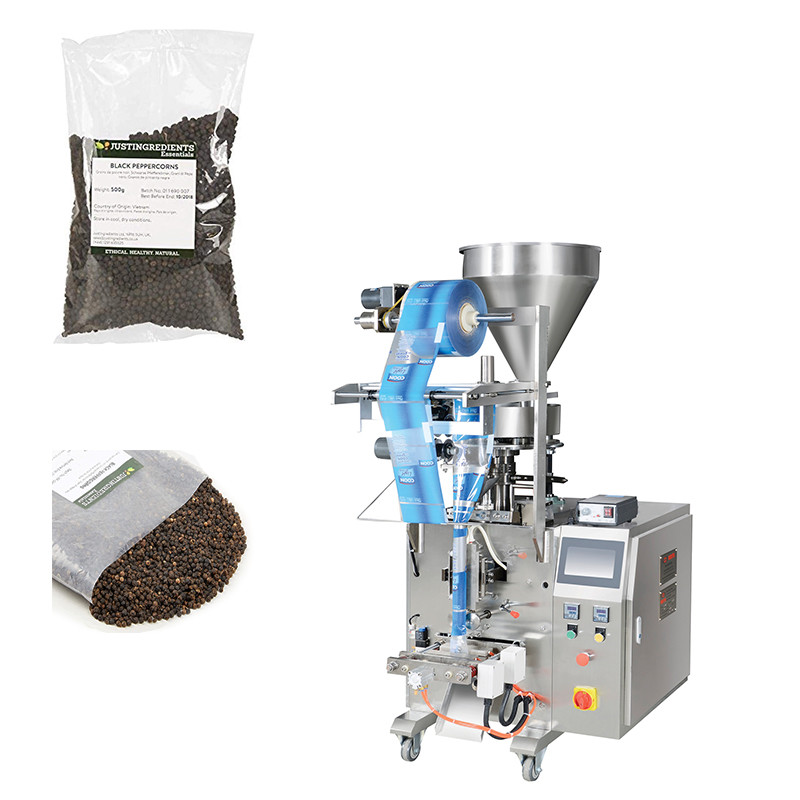

1.  Vertical food packing machine

It can realize the one-step process of material release, packaging and sealing and cutting

2.5KW Sachet Filling Packing Machine Automatic Measurement Distributing 0

2. Stainless steel funnel

Equipped with largerhopper, this can makefilling material more easier tobe filled

    2.5KW Sachet Filling Packing Machine Automatic Measurement Distributing 1

3. Customized molding

Suitable for all sizes of packages.(other size contact with us)

2.5KW Sachet Filling Packing Machine Automatic Measurement Distributing 2

4.Double-sided heating and sealing

Adopt bilateral push design
Stable machine heating, good sealing effect
Strong thermal conductivity

2.5KW Sachet Filling Packing Machine Automatic Measurement Distributing 3

5. Self-locking gimbal

Move at any time as required, press to self-lock and lock at any time

2.5KW Sachet Filling Packing Machine Automatic Measurement Distributing 4
6. Packing neat and good looking 2.5KW Sachet Filling Packing Machine Automatic Measurement Distributing 52.5KW Sachet Filling Packing Machine Automatic Measurement Distributing 6
