High Performance Wipes Machine Automatic Slitting Folding Counting Packing Labeling Machine Line
Performance introduction:
1. Scientific design, compact structure, convenient operation and maintenance
2. Humidification device for spunlace non-woven fabrics: single spray type and second concentrated spray type
3. Liquid addition system: including stirring device, water adding device, independent water return device, and the amount of water can be adjusted
4. Raw material cutting system: length adjustable
5. Photoelectric detection can automatically stop if there is no cloth
6. Packaging form: mechanical reciprocating horizontal seal, with pneumatic gusset, optional aircraft port device
7. Position adjustment: opening position, labeling position, feeding position, color mark position, which can be changed directly on the touch screen
8. Raw material cutting system: pneumatic toothed knife
9. Labeling system: double labeling, two labels can work at the same time, or can be used alone
10. Coding system: ink wheel coding machine, which can print production date, batch number
11. PLC control system, monitoring system
12. Electrical control system: PLC system, man-machine interface, control circuit, power circuit, temperature control and other auxiliary controls
Production process: coil loading → slitting and folding → conveying → spraying → spunlace non-woven fabric loading (finished product) → automatic synchronous transportation of tailstock → bagging → automatic opening → automatic labeling → bag making → sealing → cutting →Product delivery
Main Parameter
|
|

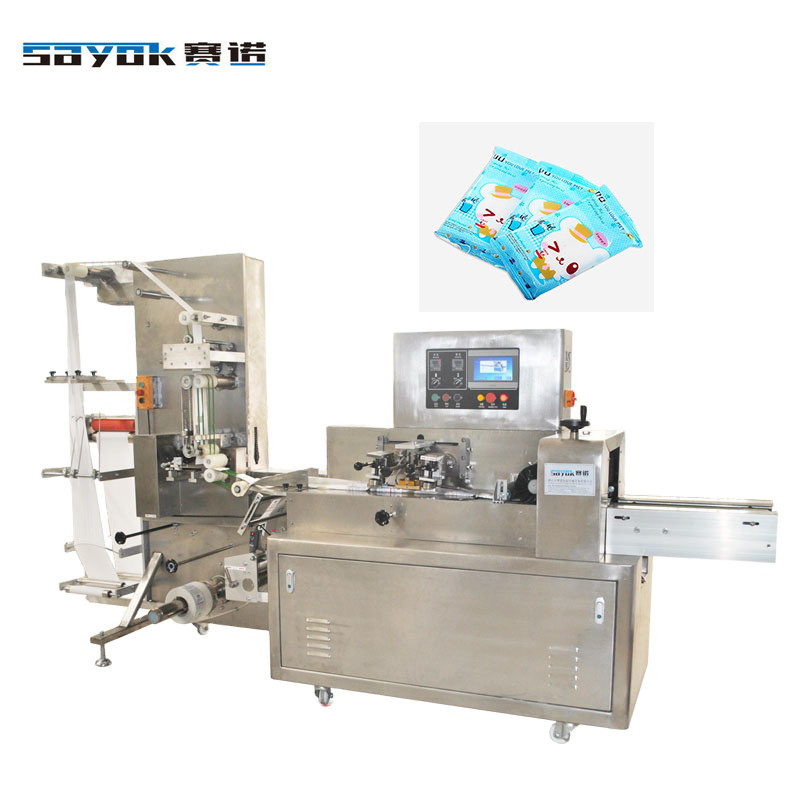

SN-1L
|

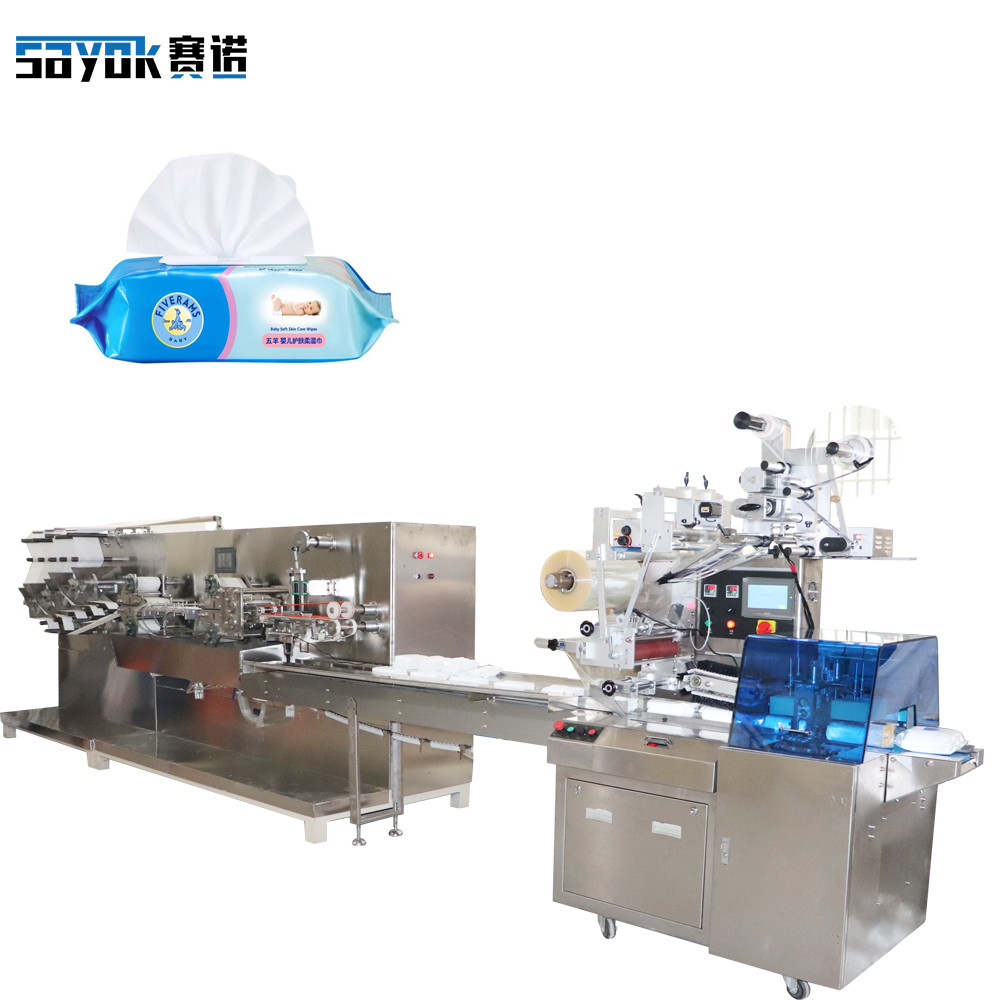

SN-6L |
|
| Wet wipes unfolded size |
L*H:100-220×100-240mm |
(120-210)X(160-220) (length X width) |
| Wet wipes folded size |
L*H: 80-110×30-90mm |
(120-210)X(90-110) (length X width) |
| Wipes folding method |
Vertically folded N/W type N/W |
Vertically folded N/W type N/W |
| Bag size |
L*W: 130-160×50-100mm |
Single bag: L*W: 130-160×50-100mm |
| Processing capacity |
Single row 40～100 slices/min (single row) |
1200-2400 pieces/minute 15-20 packs/minute (80 pieces/pack) |
| Packaging film |
70-130g/㎡ PE&PET OPP&PE Φ≤400mm, width 200-380mm |
70-130g/㎡ PE&PET OPP&PE , Φ≤400mm, width 200-380mm |
| Raw Material |
40-80g Spunlace 水刺布 |
40-80g Spunlace |
| Total power |
220V 50Hz 3KW |
380V 50HZ 2.15KW |
| Machine weight |
About 810 kg |
1400kg |
| Dimensions |
L*W*H: 4020×720×1320mm |
L*W*H:6000×2500×1800mm |
