High Efficiency Bottled Toothpick Automatic Packing Line With Vibrating Disc Feeding Bottles And Caps

High Efficiency Bottled Toothpick Automatic Packing Line With Vibrating Disc Feeding Bottles And Caps

Brand Name:	Sayok
Model Number:	SN-169
MOQ:	1 set
Price:	EXW US$18000 -20000/set
Payment Terms:	T/T
Supply Ability:	30 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Feeding Way:

Vibrating Disc For Bottles And Caps

Applicable Industries:

Bottled Thoothpick, Sticks Automatic Packing

Bottle Type:

Round Or Square Plastic Bottles

Key Selling Points:

Full Automatic Packing Line

Functions:

Bottle Feeding, Filling, Capping

After-sales Service:

Online Technical Support

Warranty:

12 Month For Main Electrical Parts Without Human Error.

Packaging Details:

Exported wooden case

Product Description

High Efficiency Bottled Toothpick Automatic Packing Line With Vibrating Disc Feeding Bottles And Caps

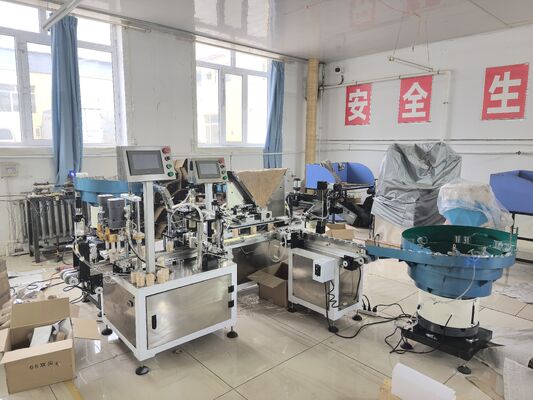

This fully‑automatic production line is dedicated to bottled toothpick mass‑packaging. It combines bottle sorting, quantitative counting, filling and capping in one workflow, achieving unmanned operation from feeding to final packages, can be connecting with labeling machine with company own brand logo infomation.

Controlled by PLC, it delivers stable running, accurate counting and variable‑speed production. Adopt robotic arm filling system,the robotic arm completes the bottling process automatically, the slots are customized as required bottle opening shape and filling quantity, make sure the filling is smoothly and precisely.

Adopting vibrating discs to sort and feeding the bottles and bottle caps, the grooves are customized as actual bottle shapes, change mold once changing shapes. The automatic bottle arranging and feeding mechanism ensures stable and continuous bottle delivery, while the precise servo capping system completes tight and standard screw capping, with stable sealing effect and no loose caps or leakage.

This packaging production line features simple operation, high automation level, low failure rate and easy maintenance. It effectively replaces manual packaging, greatly improves toothpick bottling efficiency and product uniformity, and reduces labor costs and secondary pollution. Suitable for mass standardized packaging of various plastic cylinder and bottled toothpicks, it is widely applicable to food packaging and daily necessities production industries, and meets the export product packaging standards of various countries.

Specifications:

Model	SN-169
Bottle type	Round or Squared plastic bottles
Packing Speed	15-20 bottles/min
Power Supply	220 50Hz
Power	2 kw
Machine Weght	Approx 4500 KG
Degree of automation	Fully automatic
Control system	Microcomputer control
Machine Dimensions	300030001600mm (LWH)
Packed Dimensions	100016501600mm & 250012001600mm

Machine Details:

1. Fully automatic bottled toothpick packing line It can realize the one-step process of material release, packaging and sealing and cutting, it integrate bottle feeding, filling, capping etc all in one, it is a fully automatic packing line.
2. The plastic bottles and caps are automatic feeding by the high quality vibrating disc, which is customized by the
3. Customized large storage bin for toothpicks, the slot is customized as bottle opening shape for automatic filling.
4. Customized model as bottle shape for automatic capping, high eficiency and firmly capped. Less cost and no manual intervention, faster and cleaner production. Meet food safety requirements.
5. Bottled toothicks packed precisely in qty and the firmly capped, optional to be with bottle labeling machine. Bottle and cap shape can be customized.

Transportation & Shipping

All cargoes will use strech film wrapping the whole machine to protect the machine from shaking, and there will be with cardboard to each corners to prevent from crushing. Before closing the outer boards, each machine stands will be fixed not to move with blocks.

In a words, the whole machine will be good protection to prevent from crushing during shipping, ensure the machines are on a good conditions to arrive clients' workshop.
