Fully Automatic Bottled Toothpick Packing Line With Bottle Feeding Filling And Capping Functions

Fully Automatic Bottled Toothpick Packing Line With Bottle Feeding Filling And Capping Functions

Brand Name:	Sayok
Model Number:	SN-
MOQ:	1 set
Price:	EXW US$18000 -20000/set
Payment Terms:	T/T
Supply Ability:	30 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Attitude:

Intact

Applicable Industries:

Bottled Thoothpick, Sticks Automatic Packing

Bottle Type:

Round Or Square Plastic Bottles

Key Selling Points:

Easy To Operate

Functions:

Bottle Feeding, Filling, Capping

Automatic Grade:

Fully Automatic

After-sales Service:

Video Technical Support

Warranty:

12 Month For Main Electrical Parts Without Human Error.

Packaging Details:

Exported wooden case

Product Description

Fully Automatic Bottled Toothpick Packing Line With Bottle Feeding Filling And Capping Functions

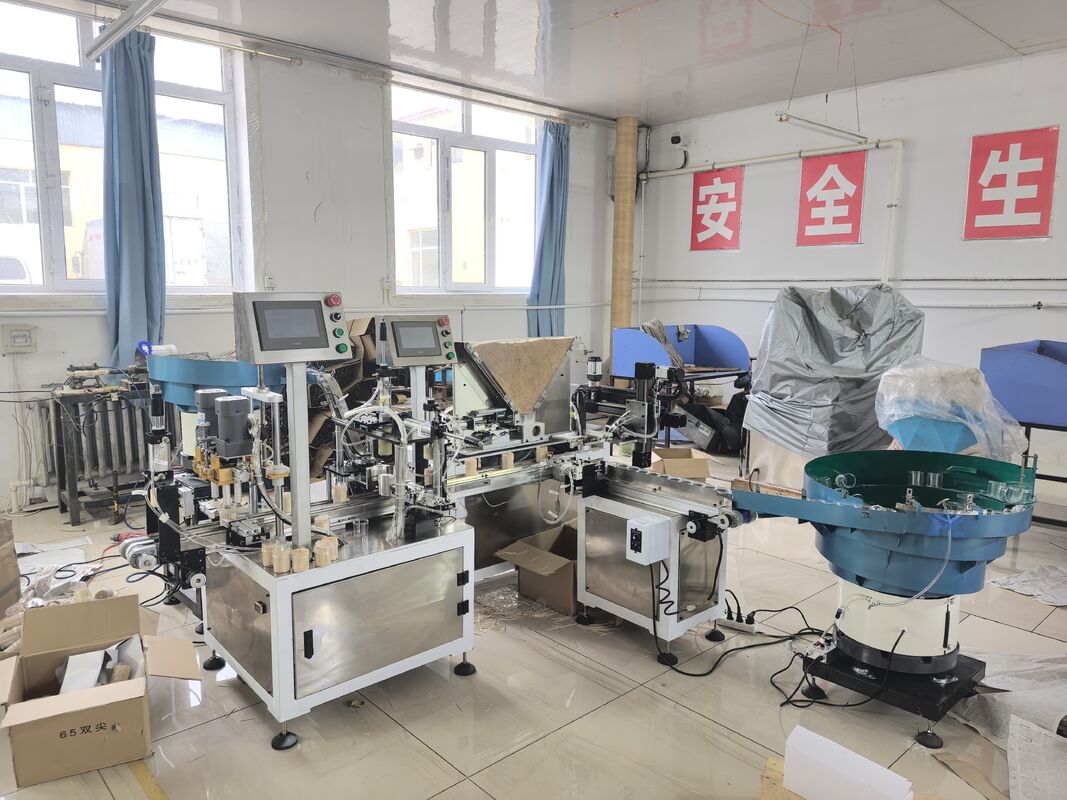

This fully‑automatic production line is dedicated to bottled toothpick mass‑packaging. It combines bottle sorting, quantitative counting, filling, capping, labeling, coding and finished‑goods discharging in one workflow, achieving unmanned operation from feeding to final packages.

Controlled by PLC, it delivers stable running, accurate counting and variable‑speed production. Food‑grade stainless steel is used for all product‑contact components to meet global food‑safety requirements. It supports flexible setting for fill volume and bottle sizes, with built‑in fault detection & alarm for jam, material shortage and defective capping.

Adopting mature mechanical transmission and intelligent counting control technology, the equipment realizes high-precision quantitative filling of toothpicks, effectively avoiding material shortage and overflow problems. The automatic bottle arranging and feeding mechanism ensures stable and continuous bottle delivery, while the precise servo capping system completes tight and standard screw capping, with stable sealing effect and no loose caps or leakage.

This packaging production line features simple operation, high automation level, low failure rate and easy maintenance. It effectively replaces manual packaging, greatly improves toothpick bottling efficiency and product uniformity, and reduces labor costs and secondary pollution. Suitable for mass standardized packaging of various plastic cylinder and bottled toothpicks, it is widely applicable to food packaging and daily necessities production industries, and meets the export product packaging standards of various countries.

Specifications:

Model	SN-169
Bottle type	Round or Squared plastic bottles
Packing Speed	15-20 bottles/min
Power Supply	220 50Hz
Power	2 kw
Machine Weght	Approx 4500 KG
Degree of automation	Fully automatic
Control system	Microcomputer control
Machine Dimensions	300030001600mm (LWH)
Packed Dimensions	100016501600mm & 250012001600mm

Machine Details:

1. Fully automatic bottled toothpick packing line It can realize the one-step process of material release, packaging and sealing and cutting, it integrate bottle feeding, filling, capping etc all in one, it is a fully automatic packing line.
2. The plastic bottles are automatic feeding by the high quality vibrating disc, which is customized by the
3. Customized large storage bin for toothpicks, the slot is customized as bottle opening shape for automatic filling.
4. Customized model as bottle shape for automatic capping, high eficiency and firmly capped. Less cost and no manual intervention, faster and cleaner production. Meet food safety requirements.
5. Bottled toothicks packed precisely in qty and the firmly capped, optional to be with bottle labeling machine. Bottle and cap shape can be customized.

Transportation & Shipping

All cargoes will use strech film wrapping the whole machine to protect the machine from shaking, and there will be with cardboard to each corners to prevent from crushing. Before closing the outer boards, each machine stands will be fixed not to move with blocks.

In a words, the whole machine will be good protection to prevent from crushing during shipping, ensure the machines are on a good conditions to arrive clients' workshop.
