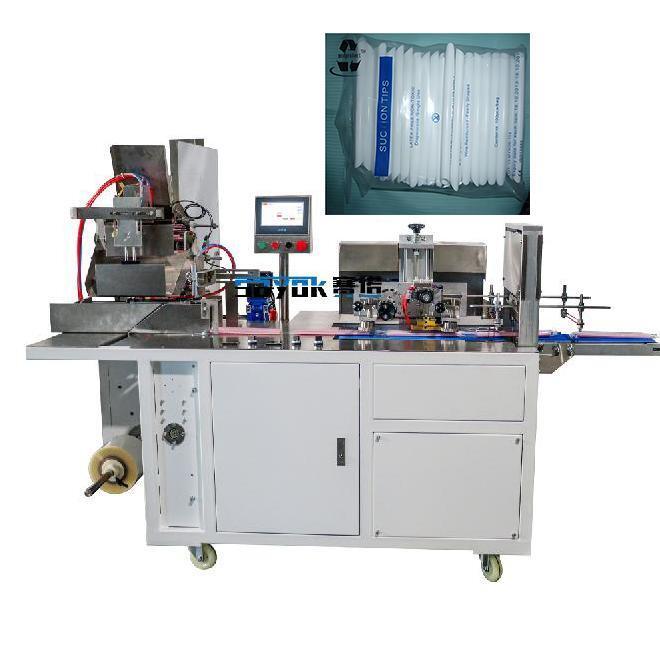

Core Working Process

1. Manual bulk feeding of saliva tubes into the vibrating sorting hopper for automatic alignment and single-row separation;
2. Servo feeding mechanism quantitatively sends one pair of chopsticks into the packaging channel;
3. Packaging film/paper roll is unwound, shaped into a sleeve bag via forming mould;
4. Longitudinal heat sealing + transverse cutting finish bag sealing and separation;
5. Optional inkjet printer prints production date, batch number and brand logo on the package;
6. Finished products are conveyed out automatically with real-time counting.

Key Advantages & Technical Features

• Intelligent Control: PLC + touch screen HMI, parameter digital setting, multilingual operation interface;
• High Efficiency: Conventional model reaches 200–300 pairs per minute, high-speed upgraded model up to 400-600 pairs/min, one worker can operate multiple units;
• Precise Tracking: Photoelectric eye color mark tracing ensures stable bag length cutting, no film waste;
• Reliable Sealing: Independent PID constant temperature heating system, flat, tight and leak-proof sealing edge, moisture-proof and dust-proof;
• Safety & Hygiene: Main contact parts adopt 304 stainless steel, conform to food sanitation standards, easy to disassemble and clean;
• Fault Protection: Auto stop for jammed feeding, empty bag skip counting, overload protection for motors;
• Flexible Adjustment: Packaging length adaptable for 150–300mm chopsticks, easy size replacement without complicated mould change.
