Toothpick Packing Machine
Created with Pixso.

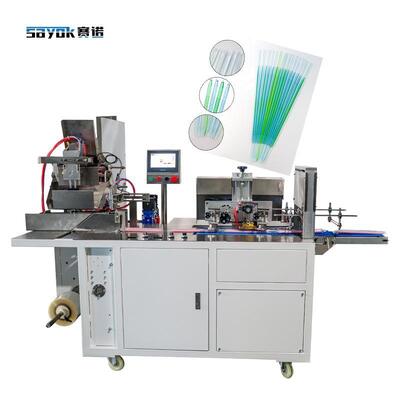

Quality servo control Counting Packaging Machine For Inoculating Loop Central Back Bag Packing

Quality servo control Counting Packaging Machine For Inoculating Loop Central Back Bag Packing

Brand Name: Sayok
Model Number: SN-169
MOQ: 1 set
Price: To be negociated
Payment Terms: T/T
Supply Ability: 50 set /month
Detail Information
Place of Origin:
China
Certification:
CE
Packaging Details:
Exported wooden case
Product Description

High Quality Fully Automatic Inoculating Loop Counting & Packaging Machine



Product Brief Introduction

This fully automatic counting packaging machine is tailor-made for mass production of disposable plastic inoculating loops widely used in microbiology labs, medical testing institutions and biotech factories. It integrates automatic feeding, high-precision counting, film forming, filling, heat sealing, coding and finished bag output into one streamlined production line, realizing unmanned continuous operation and greatly cutting labor costs while eliminating manual counting errors and cross-contamination risks for medical consumables.
Constructed with food & medical grade 304 stainless steel frame, all product contact surfaces are smooth, corrosion-resistant and easy to sanitize, fully complying with GMP and ISO 11607 sterile medical packaging standards. Equipped with PLC servo control system and 10-inch touchscreen HMI, operators can flexibly set packaging quantity, bag length, sealing temperature and running speed with simple parameter adjustment; real-time fault self-checking, shortage alarm and missing count reminder functions are built-in to guarantee stable production.


Core Counting & Packaging Technology

Two optional high-accuracy counting systems are available for customers’ selection:
  1. Photoelectric multi-channel sensing counting: Stable for standard-sized inoculating loops, counting error less than 0.01%, low cost for medium-speed production lines;
  2. Visual image recognition counting: Suitable for mixed-size loops, automatically identify deformed, missing or stacked products, reject unqualified materials before packaging to ensure each pouch contains exact specified quantity.
The packaging station supports roll film pillow bags, four-side sealed sterile pouches and Tyvek sterilization composite film, with adjustable bag width and length to match 1μL /10μL disposable inoculating loops. Intelligent constant-temperature heat sealing system ensures flat, leak-proof and sterile-sealed bags, compatible with EO sterilization procedures after packingAlibaba.co....



Main Advantages

  1. High Automation: Vibratory bowl automatic sorting & feeding, no manual material placement; full one-stop process from raw loop input to finished bag discharge;
  2. Ultra-high Accuracy: Avoid human counting deviation, effectively reduce product waste and customer complaints;
  3. Hygienic & Safe: Closed feeding and counting structure, minimize dust and secondary pollution, ideal for sterile medical consumable production;
  4. Wide Compatibility: Quick mold changeover within 10 minutes, adaptable to different specifications of plastic inoculating loops;
  5. Easy Maintenance: Modular design, quick disassembly for cleaning; core components (PLC, servo motor, sensors) with 1-year warranty;
  6. Expandable Functions: Optional online inkjet coding, weight inspection, automatic bag collection and conveying device to form a complete automatic packaging assembly line.

Typical Application

Specially designed for disposable inoculating loops used in bacterial culture, specimen isolation, clinical microbiological testing, food microbial inspection and laboratory consumable manufacturing factories. It can also be refitted to package swabs, sampling sticks and other slender disposable lab plastic consumables.


Basic Technical Parameters (Standard Model)

  • Production Speed: 5-20 bags per minute
  • Counting Range: 1–100 pcs per bag (customizable)
  • Packaging Film Width: 50–220 mm adjustable
  • Power Supply: AC220V / 380V, 1.5–2.2 KW
  • Overall Dimension: L1200×W950×H1450 mm
  • Machine Weight: About 350 KG
  • Certification: CE


Support and Services:

Our Saliva Tube Packing Machine is designed for efficient and precise packing of saliva tubes, ensuring high productivity and minimal downtime. To maintain optimal performance, regular maintenance and timely technical support are essential.

Technical Support includes troubleshooting guidance, machine calibration assistance, software updates, and replacement parts consultation. Our team of experts is committed to helping you resolve any issues promptly to keep your production line running smoothly.

Services provided include installation, operator training, preventive maintenance, and on-site repair services. We ensure that your machine operates at peak efficiency through routine inspections and servicing.

For best results, we recommend following the user manual guidelines for operation and maintenance. Regular cleaning and lubrication of moving parts will extend the machine’s lifespan and improve packing accuracy.

Should you require any technical assistance or service support, please refer to the resources provided with your machine or contact your authorized service provider.



Packing and Shipping:

The Toothpick Packing Machine is designed to efficiently and securely package toothpicks in various forms, ensuring hygiene and ease of handling. The packaging process involves automatic feeding, precise counting, and high-speed packing, suitable for different packaging materials such as plastic films, paper wrappers, or small boxes.

For shipping, the machine is carefully disassembled into manageable components and packed in sturdy wooden crates to prevent damage during transit. Each crate is cushioned with foam padding and secured with metal straps. The packaging is labeled with handling instructions and shipping details to ensure safe delivery. We offer worldwide shipping with options for air, sea, or land freight, providing tracking and insurance for all shipments.
