The equipment is equipped with 1.5 meters bucket conveyor belt, which supports up to 3-4 people to put materials, bucket continuous work, driving workers to work continuously, automatic open bags, automatic packaging, automatic sealing, automatic sealing, automatic date printing, and efficient work.
Touch screen operation, PLC control, stable performance, convenient adjustment, accurate detection.
Specifications:
project | parameter |
Fully automatic bag packaging machine | |
Power Supply and Power | AC220V,50-60Hz two-phase 2.2kW |
compressed air | Minimum 0.5MPa |
Thin film materials | Heat sealable packaging film |
Measurement range | 200-1000g |
Packaging speed | 15-25 packs/minute |
Packaging film size (maximum) | Membrane width max: 200mm Membrane length: 280mm |
Machine appearance dimensions | L1424mm×W980mm×H1343mm(Customized according to customer requirements) |
Machine weight | About 365kg |
environment condition | Relative humidity of 30% to 90%; The ambient temperature ranges from 0 ℃ to 40 ℃ |
Bag width (maximum) | 200mm |
Bag length (maximum) | 280mm |
Machine Details:

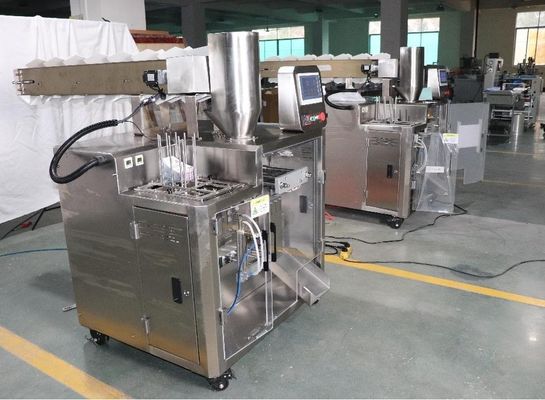

1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting |
![]() |
2.Compact Design
all deails are refined treatment according to products to make sure smoothly operating, feeding, opening, filling, sealing etc. |
![]() |
3. Multi-functional customized mechanical devices enjoy quality service, the feeding hopper is customized according to the products to make sure no jamming issue. |
|
4. Big Bag Storage Cabin Can store 400+ bags, save time to change bags. |
![]() |
5. Packaging we adopt wooden case as package type. It's suitable for long-distance transport. |
![]() |
6. Applications: All kinds of granules, 3c electric products, foods etc. |
|
