Multi-function Counting Packaging Machine Servo Control Fiberglass Rods Pillow Packing Machine

1 set
MOQ
To be negotiated
Price
Multi-function Counting Packaging Machine Servo Control Fiberglass Rods Pillow Packing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Advantage: High Precisely And Super High Speed
Speed: 400-800 Pieces / Min, Depends On Product
Rods Range: 100-300mm, To Be Customised
Film Material: PE/PET, OPP/CPP, Etc Composite Film
Automatic Grade: Fully Automatic
Control System: Servo Control
After-sales Service: Video Technical Support
OEM/ODM: YES
Highlight:

Fiberglass Rods Pillow Packing Machine

,

Servo Control Pillow Packing Machine

,

Multi-function Pillow Packing Machine

Basic Infomation
Place of Origin: China
Brand Name: Sayok
Certification: CE
Model Number: SN-
Payment & Shipping Terms
Packaging Details: Exported wooden case
Delivery Time: 15-30 working days
Payment Terms: L/C
Supply Ability: 100 set /month
Product Description

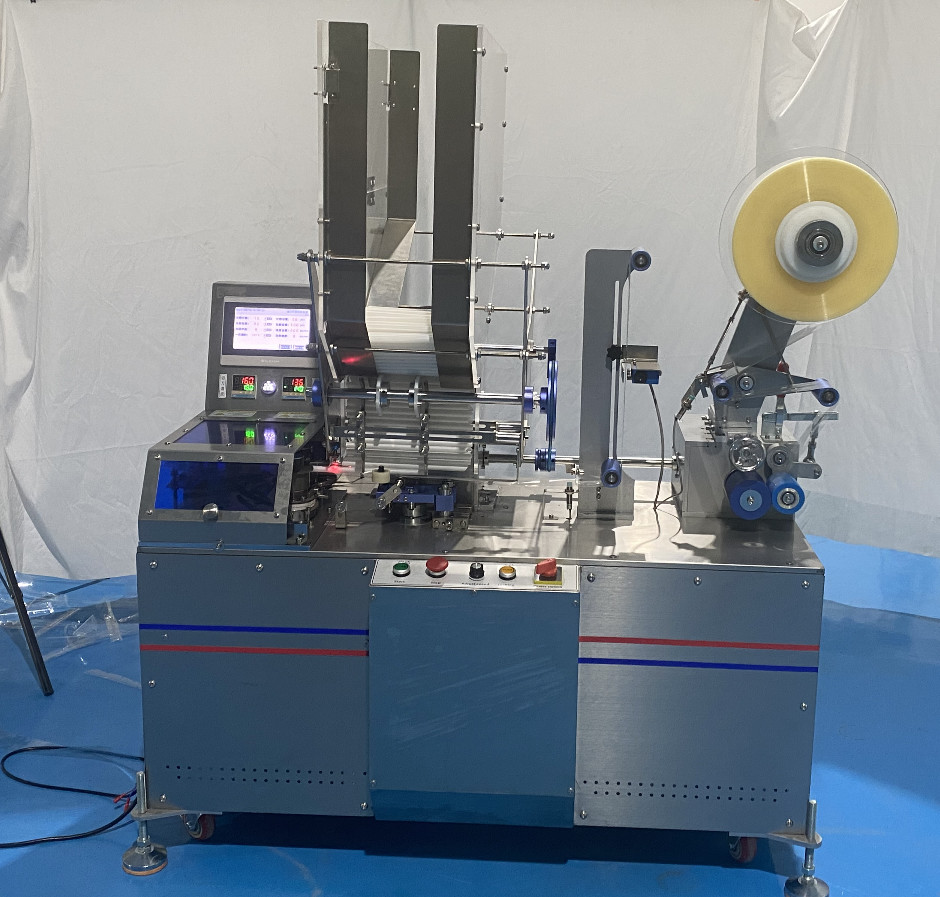

Multi-function Counting Packaging Machine Servo Control Fiberglass Rods Pillow Packing Machine


Main performance and structural features
1, The machine is automatic counting and packing 2 in 1 intergrating machine, fully automatic machine, easy to operate and maintain, reasonable compact design, small footprint for small business, meet the industry requirements.
2, Big volumetric storage and counting way, can be capitable for 10-100 pieces incense sticks counting and packing.
3, Easy to adjust the length once changing the stick length, stick length from 100 - 300mm, to be customized.
4, Multi-functional machine, can be 2.5-3.0 diameter sticks and also 3.0-3.5 diameter sticks. And to be customized for other sizes.
5, Quantity of each bag can be intelligent to adjust, just set in the operating screen, very easy and convenient .
6, Chinese-English bilingual languages for the operating screen, can be customized.




Specifications:





Machine Mode
SN-
Packaging type
3 side seal H type
Packing Speed
400-800 pieces /
Film Thickness
0.01-0.022 mm
Film width
300 mm
Bag Length
300-600 mm
Bag Width
10-150 mm
Bag height
Max. 80 mm
Film type
BOPP single side heat seal roll film
Machine Size
3200*980*1250 mm
Machine weight
500 KG
Power
220 V 50/60 HZ 3KW
Applications
Buddha incense, mosquito incense, food, chemical, catering, hardware and daily chemical







Machine Details:



1. Packaging machine appearance

Sprayed and baked paint finish, can be customized for stainless steel.

It can realize the one-step process of material release, counting, packaging, sealing and cutting

Multi-function Counting Packaging Machine Servo Control Fiberglass Rods Pillow Packing Machine 0

2.Control panel

Large size display PLC, all is displayed in the screen, easy to operate and maintain.

Multi-function Counting Packaging Machine Servo Control Fiberglass Rods Pillow Packing Machine 1

3. Automatic feeding and counting



Electric optic eye to detect the quantity, realiable and accurate, reduce labor, save in time and cost.

Multi-function Counting Packaging Machine Servo Control Fiberglass Rods Pillow Packing Machine 2

4. Big storage tank for materials



Big tank for storing materials, enlarge the packable range, reduce the times to fulfil materials, save in time and labors.

Multi-function Counting Packaging Machine Servo Control Fiberglass Rods Pillow Packing Machine 3

5. There's a temporary small storage slot to collect the counted materials, once reach the set counted quantity, will open the slot for packing, very intelligent and reasonable.

Multi-function Counting Packaging Machine Servo Control Fiberglass Rods Pillow Packing Machine 4
6. The counted materials will be spaced for central bag packing. There will be separated operating buttons for the packing parts, which is easy to operate

Multi-function Counting Packaging Machine Servo Control Fiberglass Rods Pillow Packing Machine 5

7. There is separated control button for cutters. Cutter will be good quality with hard enough steel to ensure cut placement precisely and cut neat. Multi-function Counting Packaging Machine Servo Control Fiberglass Rods Pillow Packing Machine 6

8. Large applications



Suitable for Buddha incense, mosquito incense, food, chemical, catering, hardware and daily chemical etc counting and packing

Multi-function Counting Packaging Machine Servo Control Fiberglass Rods Pillow Packing Machine 7





Support and Services:

This Counting Packing Machine is designed to provide reliable and efficient packaging for small long shape products. With advanced technology and high-quality components, our machine can handle a wide range of sticks materials and sizes.

We offer comprehensive technical support and services for our machine to ensure optimal performance and minimal downtime. Our team of experienced technicians is available to provide installation, training, and maintenance services to help you get the most out of your investment.

In addition, we offer troubleshooting and repair services to address any issues that may arise with your machine. Our goal is to help you keep your production running smoothly and efficiently.

Packing and Shipping:

Product Packaging:

It will be packaged securely in a sturdy cardboard box to protect it from any damage during shipment. Inside the box, the machine will be wrapped in bubble wrap and other protective materials to ensure it arrives at its destination in pristine condition.

Shipping:

We offer worldwide shipping for this machine. Once your order is placed, we will process it within 1-2 business days and ship it out via a reliable forwarder to make sure your cargo's safety.
