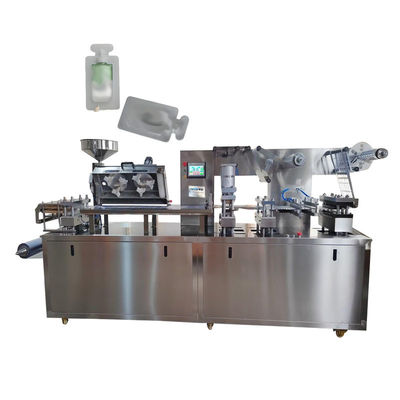

Customized Essential Oil Trial Set Automatic Filling Blister Packing Machine 380/220V

Customized Essential Oil Trial Set Automatic Filling Blister Packing Machine 380/220V

Machine Introduction

1. Adopts latest high-power transmission mechanism and chain driven transmission shaft, lower the noise of gear transmission, improving the accurate rate of transmission.
2. High quality pumps for liquid filling, intelligent dose control the filling volume, easy to set in the operating screen.
3. Packaging film can be PVC, PTP, hard aluminum, which are automatic unwinding and feeding, And automatic punching to formed as requested shapes.
4. Optional devices such as indentation, batch numbering, waste recycling, cursor alignment, etc.

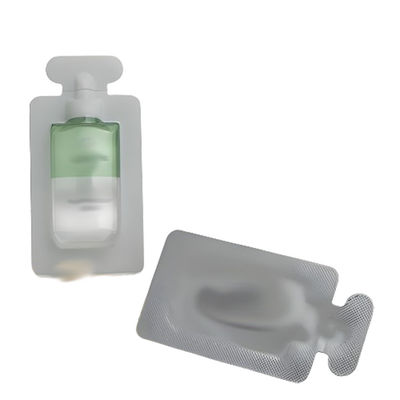

5. This machine is suitable for: cosmestic oil, honery pods, water, oral washing water, capsules, plain tablets, sugar coating, capsules, injections, etc., as well as medical devices, light food, and electronic components blister sealed packaging.

Quickly Details

1.  Latest chain driven transmission technical, high precisely and low noise;

2.  Dose liquid filling pump, easy to control

3.  Automatic packing film unwinding, feeding, punching and forming etc.

4.  Compact design and intelligent in operations;

5. Photoelectric control the automatic punching and cutting

6. Optional to have batch coding, waste collection and color mark tracking etc.

Packing Machine parameters

Punch frequency 10-35 times/minute Production capacity 4800 blisters/hour, depends on actual products Max moulding depth and area 100*135*25 mm Standard Blister 80*57mm (To be customized) Power supply 380/220V 50HZ 3KW Power for main motor 0.75 KW Air pressure 0.6-0.8Mpa Mould coolling Tap water or recycle water Machine dimension 1660*490*1155 mm Machine weight 450Kg Noise < 70 dBA Standard Travel Range 20-100mm (To be customized)







Machine Details:



1. Stainless steel quality, good in appearance and machine is more durable, long life in use for more product with high requirements.
2.The cylinder sealing method is used, with uniform pressure and clear texture, resulting in a flat and natural appearance. The sealing mold automatically separates when the machine stops, preventing scalding of the packaging material.
3. Heat Sealing System This is the part that seals the filled cavities in the process of blister packaging.
4.Waste Material Winder - It is optionals to with a waste collection device, which is for collecting the waste occured from punching & cutting, make the enviroment is more neat and clean.
5. Supports Multiple Packaging StylesExclusive molds can be customized according to customer needs.For more details, please consult customer service online.
6. Application   - All kinds of oil, water, liquid trial set, pods  etc filling packing in medical industrial, food industrial, cosmestics industrial, daily necessities etc.
