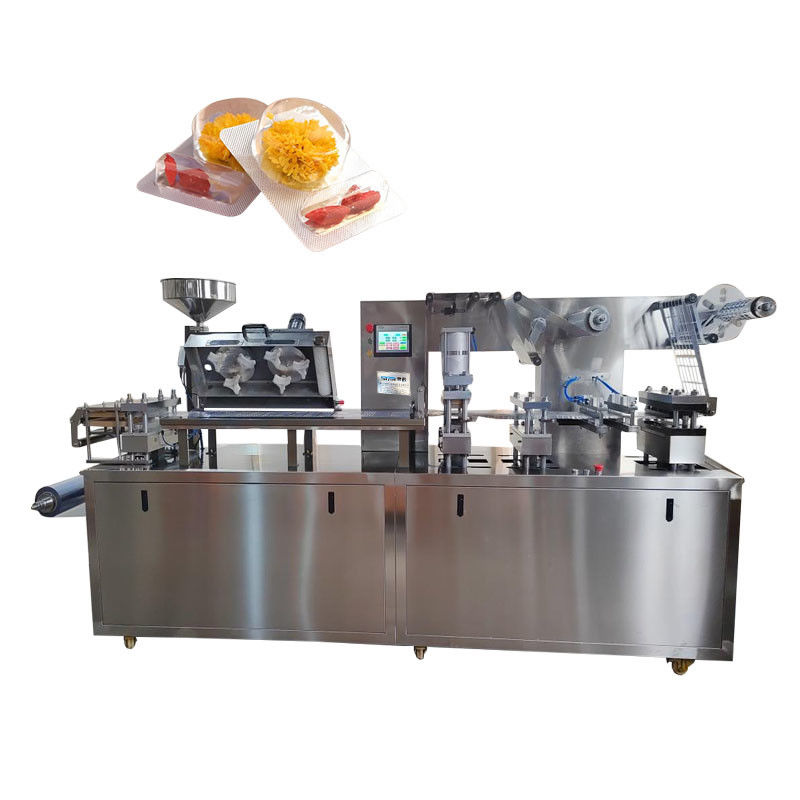

Health Tea Packaging Machine Automatic AL Plastic Blister Bubble Packing Machine

Health Tea Packaging Machine Automatic AL Plastic Blister Bubble Packing Machine

Machine Introduction

1. The latest domestic high-power transmission mechanism is adopted, and the transmission shaft is driven by the chain, eliminating the error and noise of other gear transmission.
2. Automatic unloading, molds and automatic feeders can be designed according to different materials of customers
3. Photoelectric control system is adopted. PVC, PTP, hard aluminum packaging automatic feeding, Fabian automatic punching device, to ensure the ultra-long distance multi-station synchronization stability.
4. Optional devices such as indentation, batch numbering, waste recycling, cursor alignment, etc.
5. This machine is suitable for: capsules, plain tablets, sugar coating, capsules, injections, etc., as well as medical devices, light food, and electronic components blister sealed packaging.

Quickly Details

1.  Advanced driven chain transmission shaft, more precised and lower noise;

2.  Automatic feeding way, can be customized by product

3.  Photoelectric control the automatic PVC, PTP, hard aluminum feeding.

4.  Waste fabian automatic punching and cutting;

5. Photoelectric control the automatic punching and cutting

6. Optional to have batch coding, waste collection and color mark tracking etc.

Packing Machine parameters

Punch frequency 10-35 times/minute Production capacity 4800 blisters/hour, depends on actual products Max moulding depth and area 100*135*25 mm Standard Blister 80*57mm (To be customized) Power supply 380/220V 50HZ 3KW Power for main motor 0.75 KW Air pressure 0.6-0.8Mpa Mould coolling Tap water or recycle water Machine dimension 1660*490*1155 mm Machine weight 450Kg Noise < 70 dBA Standard Travel Range 20-100mm (To be customized)







Machine Details:



1. Stainless steel quality, good in appearance and machine is more durable
2.The cylinder sealing method is used, with uniform pressure and clear texture, resulting in a flat and natural appearance. The sealing mold automatically separates when the machine stops, preventing scalding of the packaging material.
3. Heat Sealing System This is the part that seals the filled cavities in the process of blister packaging.
4.Waste Material Winder lt is responsible for winding the waste materials from the forming material and the sealing machine.
5. Supports Multiple Packaging StylesExclusive molds can be customized according to customer needs.For more details, please consult customer service online.

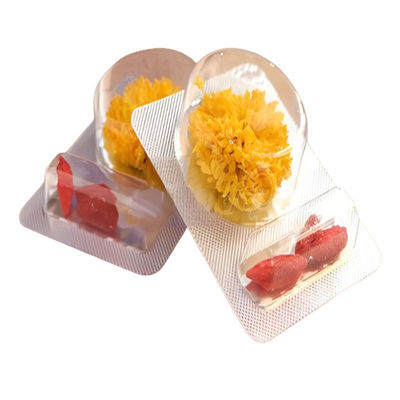

6. Application
